92kw Tracked Skid Steer Loader TS125 1500kg with CUMMINS Engine Hot Sale
92kw Tracked Skid Steer Loader TS125 1500kg with CUMMINS Engine Hot Sale
The TS125 serves as a high - performance workhorse in the construction and material - handling sectors, boasting an impressive load - carrying capacity of 1500 kg. Coupled with its 0.6 m³ bucket, it demonstrates remarkable efficiency in handling diverse materials. In large - scale construction projects, it can rapidly transport building materials such as bricks, sand, and gravel, streamlining the construction process. In the agricultural domain, it becomes an indispensable tool for tasks like moving hay bales, clearing barns, and managing various farm - related materials. Municipal works also benefit from its capabilities, especially during winter snow removal and post - storm debris hauling.
Unmatched Performance of Skid Steer Loader TS125
Dual - Speed
- The TS125's dual - speed functionality significantly enhances its versatility across a wide range of applications. In high - speed mode, the loader can quickly move around the job site, covering more ground in less time. This is particularly beneficial when transporting materials over longer distances, such as shuttling between a storage area and a construction zone. It significantly reduces the time spent on non - productive travel, thereby increasing overall job site efficiency.
- Conversely, in low - speed mode, the TS125 provides enhanced torque and power, ideal for heavy - duty tasks. When dealing with tough materials like compacted soil or large, heavy - weight objects, the low - speed setting allows the machine to apply maximum force without straining the engine. This not only improves the effectiveness of operations but also extends the lifespan of the engine and other critical components by reducing unnecessary stress. Whether it's digging deep in a construction foundation or maneuvering heavy loads in a confined space, the dual - speed feature of the TS125 ensures optimal performance in every situation.

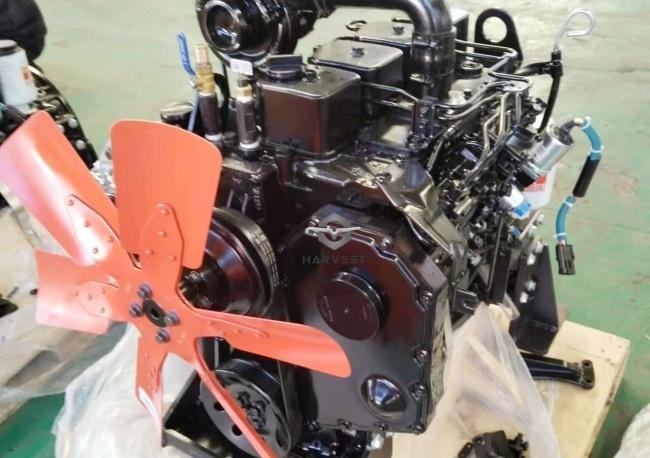

Powerful Engine Options
- Weichai Engine

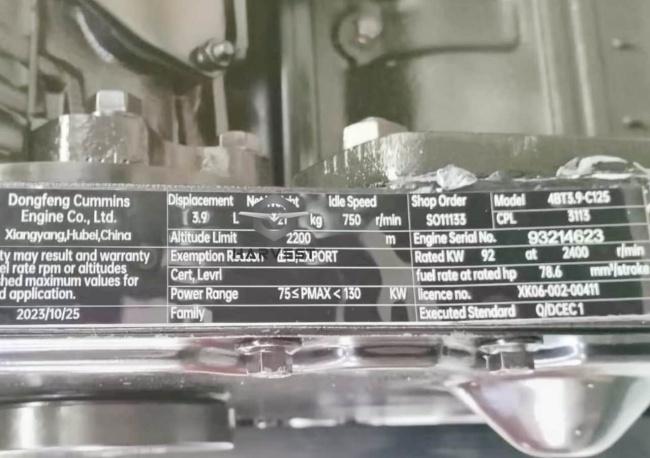

- Cummins Engine (Optional)
Industry - Leading Safety Features
- Safety is a top priority in the design of the TS125. The machine is equipped with a comprehensive set of safety features. Roll - over protection structures (ROPS) and falling object protection structures (FOPS) are standard, providing a secure working environment for operators in case of unexpected events. An emergency stop button is strategically placed within easy reach of the operator, allowing for immediate shutdown of the machine in case of an emergency. The braking system is highly reliable, ensuring quick and stable stops, even when the machine is fully loaded. These safety features not only protect the operator but also safeguard the integrity of the machine and the surrounding work area.
In summary, the Tracked Skid Steer Loader TS125, with its powerful engine options, exceptional load - carrying capacity, versatile attachment compatibility, advanced control systems, dual - speed advantage, and industry - leading safety features, provides an ideal solution for all material - handling needs. Whether in construction, agriculture, or other heavy - duty industries, the TS125 is engineered to meet and exceed the highest performance expectations.
Product Specifications
| Model number | TS100 |
| Performance parameter | |
| Rated load(kg) | 1200 |
| Maximum speed(KM/H) | 9-18 |
| Hydraulic flow(L/min) | 88 |
| Engine model | Weichai WP4.1 |
| Rated Power(kW) | 74.9 |
| Fuel tank capacity(L) | 90 |
| Operating weight(kg) | 4500 |
| Bucket capacity (m) | 0.55 |
| Dimension parameter | |
| Overall Length with bucket(mm) | 3700 |
| Without bucket length(mm) | 3000 |
| Height to bucket hinge pin(mm) | 3280 |
| Overall operating height(mm) | 4070 |
| Height to top of Cab(mm) | 2160 |
| Width with bucket(mm) | 2030 |
| Width(mm) | 1994 |
| Dumping height(mm) | 2500 |
| Dumping reach(mm) | 700 |
| Wheel base(mm) | 1500 |
| Bucket tipping angle at maximum (mm) | 104 |
| Wheelbase (mm) | 991 |
| Tread width(mm) | 1654 |
| Front turning radius(mm) | 2200 |
| Rear truning radius(mm) | 1742 |
| Angle of departure(°) | 20 |
| The bucket reverses the Angle at its highest(°) | 104 |
| Track width(mm) | 320*86 |
| Track ground length(mm) | 1500 |
| Ground clearance(mm) | 200 |
| Overall dimensions(mm) | 3700×2030×2160 |
China Brand Tracked Skid Steer Loader TS125 With 0.6m3 Bucket
