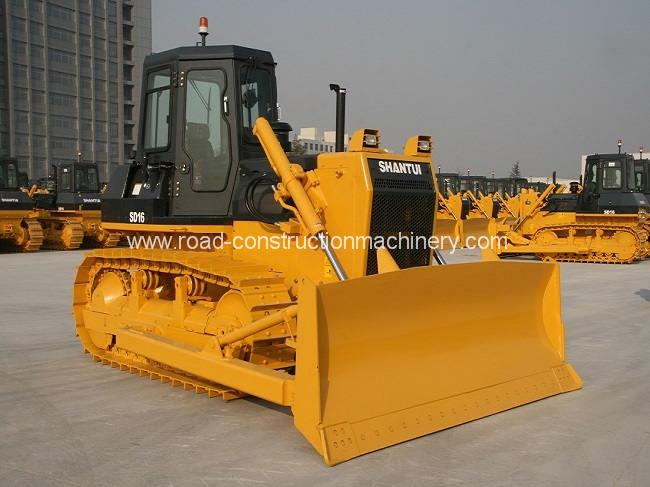

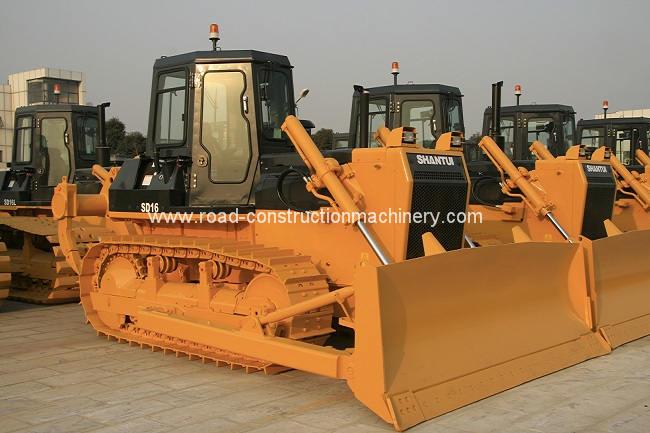

Shantui Sd16 3 Shank Ripper 160HP Crawler Bulldozer highly competitive price
160 HorsePower Shantui Sd16 Bulldozer Optional 3-shank ripper from china factory .
| Engine | Model & type | Shangchai SC11CB184G2B1/Weichai WD10G178E25; water-cooled, in-line, 4-stroke injection direct |
||
| Horsepower | Gross power: 131/175/1850 kW/HP/rpm // Net power: 120/160/1850 kW/HP/rpm |
|||
| Number of cylinders | 6—126 x 130 mm (bore x stroke) | |||
| Piston displacement | 9.726 L | |||
| Min. fuel consumption | 214 g/kW·h | |||
| Maximum torque | 765 N·m@1300 rpm | |||
| Power transmission system |
Torque converter | 3-element, 1 stage, 1 phase | ||
| Transmission | Planetary gear type, power-shift, forced lubrication | |||
| Main drive | Spiral bevel gear, single-stage speed reduction, splash lubrication |
|||
| Steering clutch | Lubricated, multi-disc, spring loaded, hand hydraulically separated, inter-linking with steering brake | |||
| Steering brake | Lubricated, floating band structure, foot brake with hydraulic booster |
|||
| Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||
| Travel speed | Gear | 1st | 2nd | 3rd |
| Forward | 0~3.29 km/h | 0~5.82 km/h | 0~9.63 km/h | |
| Reverse | 0~4.28 km/h | 0~7.59 km/h | 0~12.53 km/h | |
| Undercarriage system |
Type | Sprayed beam, suspended structure of equalizer | ||
| Carrier rollers | 2 each side | |||
| Track rollers | 6 each side | |||
| Track type | Assembled, single-grouser | |||
| Width of track shoes | 510 mm | |||
| Pitch | 203.2 mm | |||
| Hydraulic System |
Maximum pressure | 14 MPa | ||
| Pump type | Gear pump | |||
| Discharge | 243 L/min | |||
| Bore of working cylinder × no. |
110 mm × 2 | |||
| Blade | Blade Type | Straight-tilt | Angle | U- Blade |
| Dozing capacity | 4.5 m 3 | 4.4 m 3 | 5.0 m 3 | |
| Efficiency (Theoretical value 40 m) |
225 m 3 /h | 225 m 3 /h | 250 m 3 /h | |
| Blade width | 3388 mm | 3970 mm | 3556 mm | |
| Blade height | 1149 mm | 1040 mm | 1120 mm | |
| Maximum drop below ground |
540 mm | 530 mm | 540 mm | |
| Lifting height of blade | 1095 mm | 1110 mm | 1095 mm | |
| Riipper (Optional) |
Maximum digging depth of 3-shank ripper |
572 mm | ||
| Maximum lift above ground |
592 mm | |||
| Weight of 3-shank ripper | 1667 kg | |||
Has been unanimously recognized by customers in the market
SD16 crawler bulldozer is an earth-moving machine capable of excavating, transporting and dumping rock and soil. It has a wide range of uses in open-pit mines. It is not only used for auxiliary work, but also for main mining work.
It can adapt to the harsh working environment and is easy to maintain and repair. It is used for pushing, excavating, backfilling earth and stone and bulk materials. It is an indispensable equipment for national defense engineering, mine construction, and water conservancy construction.
SD16 bulldozer has the characteristics of strong power, high efficiency and energy saving, safe and reliable driving environment, more precise operation, more comfortable operation, long product grounding length, large ground clearance, stable driving, good passability, easy maintenance, etc., stable and reliable Shantui chassis The system is suitable for various harsh working conditions.
Sand and gravel conditions
SD16D bulldozer helps the construction of national desert control and photovoltaic projects. The high temperature in the desert area and the large amount of sand and dust impose strict requirements on the air intake system, cooling system, and cab sealing of the bulldozer. The SD16D bulldozer is customized for the harsh working conditions in the desert area. Due to the ultra-high attendance rate, ultra-low maintenance The cost has won the full recognition of users and escorted the construction of the desert economic pilot zone.
Soil pushing
