Autoclaved Aerated Concrete Production Line-Feeding Drawing Mechanism

Application:

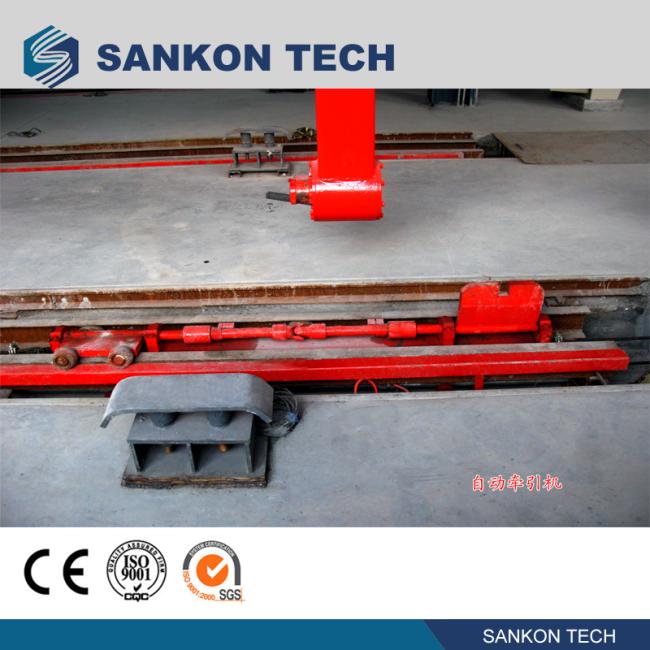

It is special equipment (see the picture) for hooking and pushing autoclave on the steam raising line.

Main technical parameter:

1.The length of the drawing mechanism can be made base on customer's requirement.

2.Weight:~1800 kg

3. Reducer (pre-curing)

Type:GR107-Y11-6P-78.57-M1-0

Output rotate speed:12.7r/min

Install type:M1

Rotate speed:1000r/min

Power:11kW

Structure:

It is composed of drive sprocket , driven sprocket, tension pulley. The trolley of the hook is composed of bearing, rolling wheel, hook body and shaft, etc.

Work Principles:

Switch on the power supply, the motor rotate to drive the sprocket, and the wiring line goes through the pulley to drag the drawing mechanism moving on the guide rail.

Trial running and maintenance:

1.Trial running

The hanger trolley runs stably on the guide rail.

2. Maintenance

Add Colloidal graphite oil on the wheel every week.
