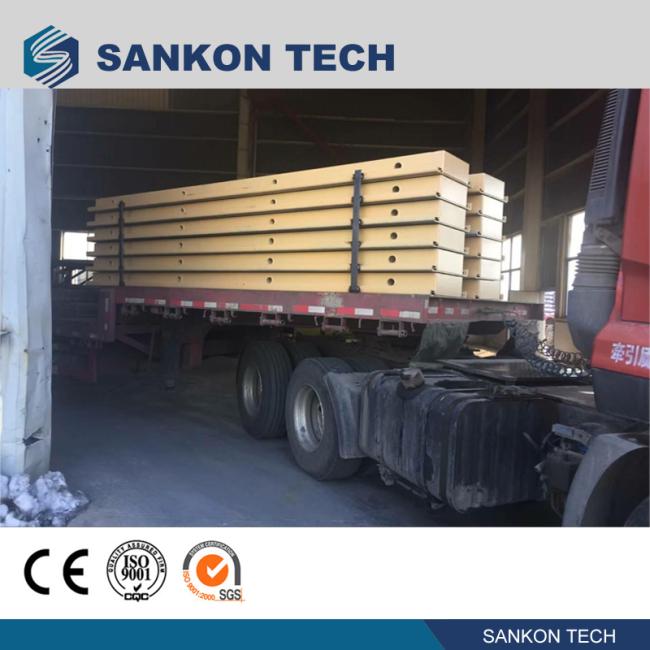

side plates

Instruction:
Side plate usually assemble with mould to put slurry.
after cutted,mould will be demoulded ,left side plate and cake.
side plate will take cake enter into autoclave,after steamed,cake will be separated ,side plate will recycle by side plate roller bed.

Functions of the side plates:

The side plates are auxiliary tools, and the function of the side plates is to carry the wheels for cutting, coding and steaming.The side plate is the main equipment to carry out the flipping, cutting and transportation of the cake. Therefore, the material and materials of the side plate are directly related to the safe completion of the transfer, flipping and cutting of the cake.

Specification:

The structure of the formwork and the side plate:

The mold can be divided into two forms: movable and integral. The side plate has double hollow layer for heat preservation. The inner plate is welded with 8mm thick steel plate to increase its rigidity, prevent deformation and prolong the service life.

The mold can be combined with the side plate to contain slurry, which can be static cured and foamed to form the cake. The side plate also carries the cake to the cutting machine for cutting, and then enters into the autoclaved kettle for steaming and raising after being assembled with the steaming trolley.
