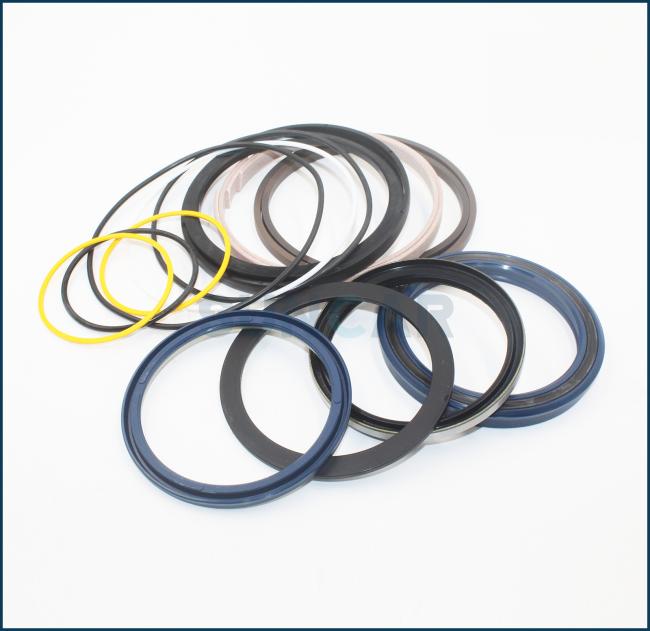

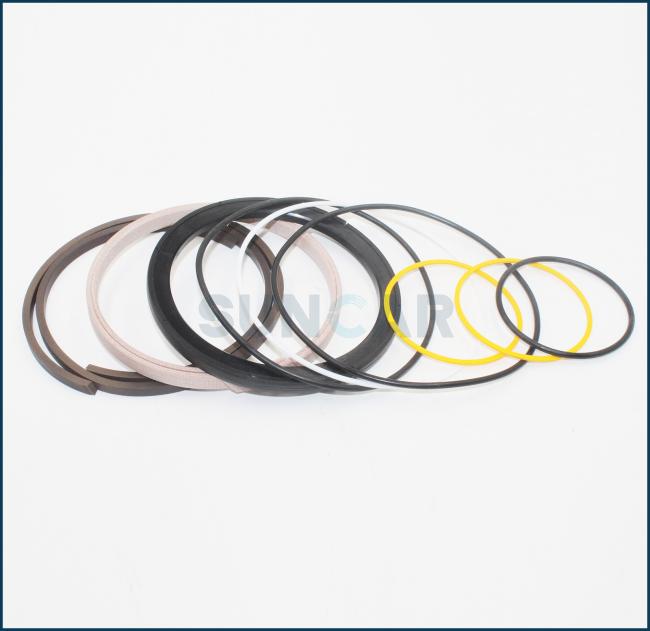

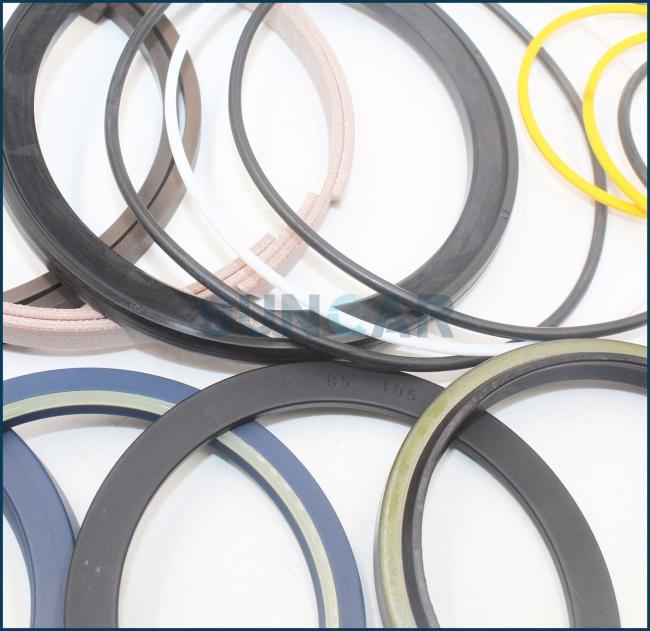

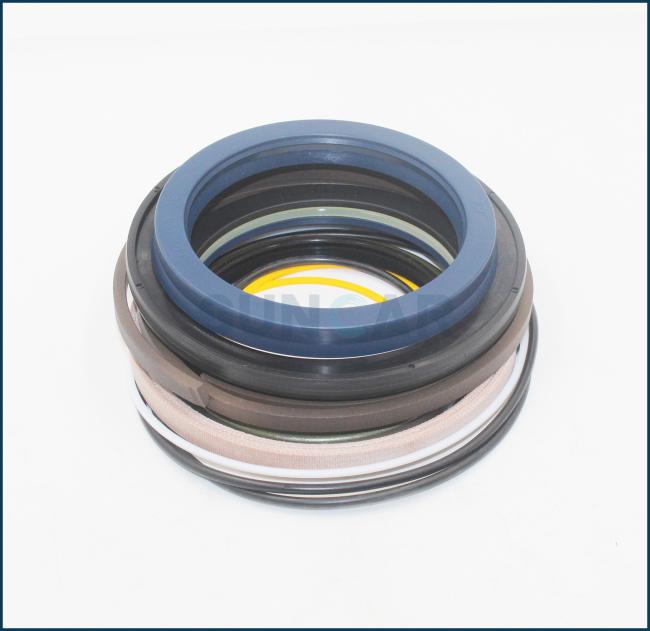

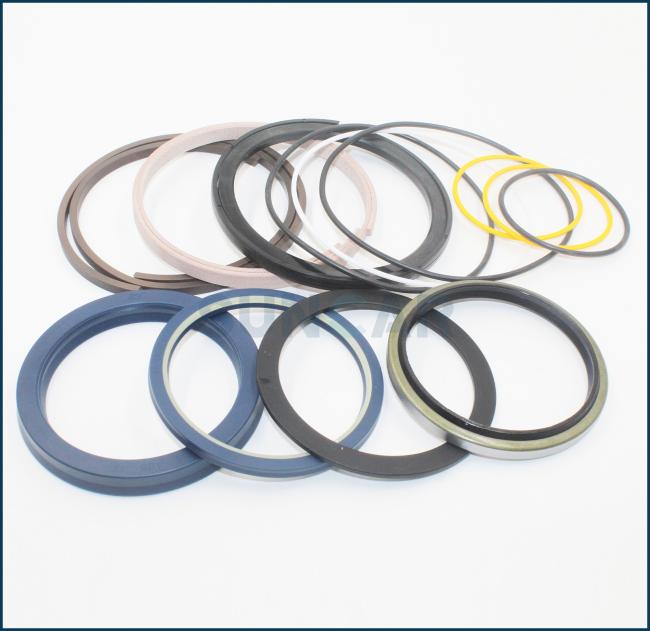

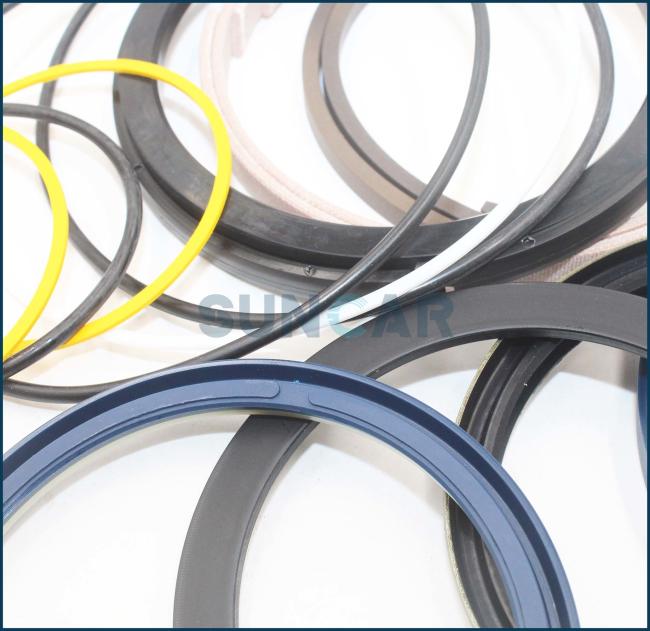

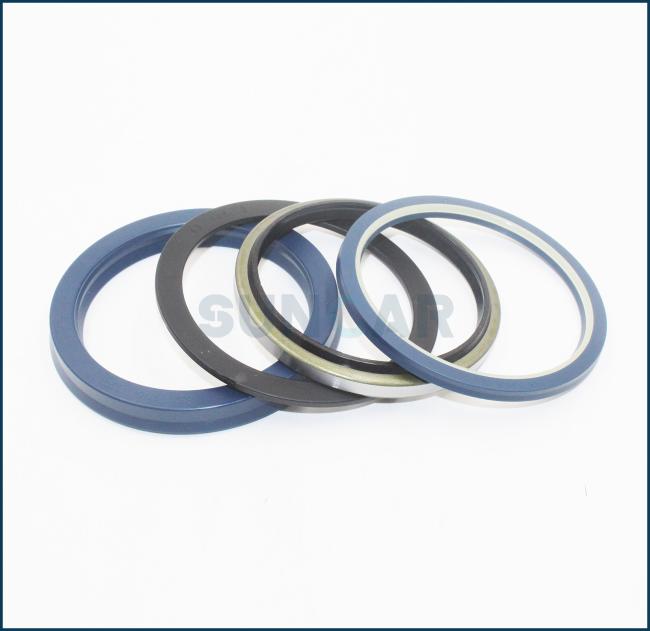

K9001878 Boom Cylinder Seal Repair Kit For DOOSAN DX220A DX220AF DX225LC DX225LCA DX225LL DX225NLC DX225NLCA DX23
K9001878 Boom Cylinder Seal Repair Kit for DOOSAN DX220A DX220AF DX225LC DX225LCA DX225LL DX225NLC DX225NLCA DX23
Description:This seal kit is hydraulic cylinder seal kit,compatible for DOOSAN.Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
| Product name | K9001878 Boom Cylinder Seal Repair Kit for DOOSAN DX220A DX220AF DX225LC DX225LCA DX225LL DX225NLC DX225NLCA DX23 |
| Brand name | SUNCAR |
| MOQ | 10 sets |
| Material |
PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Feuture |
Toughness/Wear resistance/High&low temperature resistence |
| Payment | Paypal, T/T, Western Union, ,Bank Transfer |
| Paking details | PP bag inside,carton box outside. |
| Original place | Guangdong,China |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
CertifiC-A-Tion |
ISO9001 |
| Compatible Model | DOOSAN DX220A DX220AF DX225LC DX225LCA DX225LL DX225NLC DX225NLCA DX230LC TXC225LC-2 |
|
Availability |
In stock |
| AppluC-A-Tion | Excavator&Hydraulic systerm |
| Hardness | 70-90 Shore A |

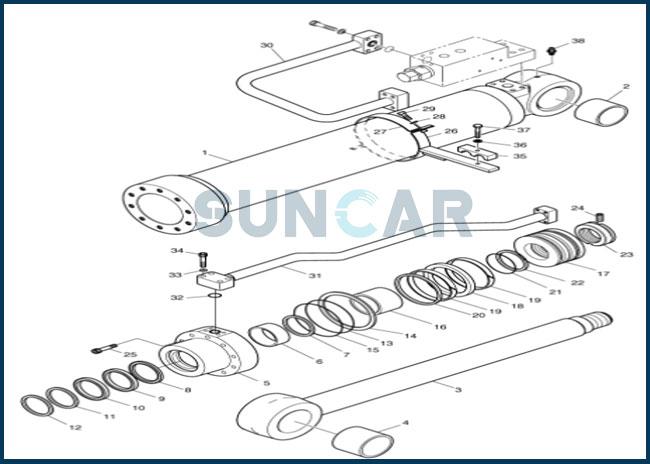

Parts on Group:.
| Pos. | Part No | Qty | Parts name |
| *. | K9001878 | [1] | SEAL KIT;BOOM CYLINDER |
| -. | K1001218A | [1] | CYLINDER;BOOM(L.H) |
| 1 | K9001854 | [1] | TUBE ASSY |
| 10 | K9001877 | [1] | RING;BACK UP |
| 11 | 115-00059 | [1] | WIPER;DUST |
| 12 | 115-00051 | [1] | RING;RETAINING |
| 13 | S8011201 | [1] | O-RING |
| 14 | K9001859 | [1] | RING;BACK UP |
| 15 | S8011251 | [1] | O-RING |
| 16 | 1.115-00204 | [1] | RING;CUSHION |
| 17 | K9001860 | [1] | PISTON |
| 18 | K9001890 | [1] | SEAL;SLIPPER |
| 19 | 115-00087 | [2] | RING;WEAR |
| 2 | K1000736 | [1] | BUSH |
| 20 | K9001861 | [1] | RING;DUST |
| 21 | S8010651 | [1] | O-RING |
| 22 | 1.180-00277 | [2] | RING;BACK UP |
| 23 | K9001862 | [1] | NUT;PISTON |
| 24 | 1.120-00219 | [1] | SCREW;SET |
| 25 | S2222272 | [10] | BOLT;SOCKET |
| 26 | K9001863 | [1] | PIPE BAND ASSY |
| 27 | 124-00088 | [1] | BAND;PIPE |
| 28 | S5100603 | [2] | WASHER |
| 29 | S0558153 | [2] | BOLT |
| 3 | K9001855 | [1] | ROD ASSY |
| 30 | K9003674 | [1] | PIPE ASSY-H(L.H) |
| 31 | K9001865A | [1] | PIPE ASSY-R(L.H) |
| 32 | S8000281 | [1] | O-RING |
| 33 | S5100603 | [4] | WASHER |
| 34 | S2212761 | [4] | BOLT;SOCKET |
| 35 | 1.124-00157 | [1] | CLAMP;PIPE |
| 36 | S5100703 | [1] | WASHER;SPRING |
| 37 | S0561053 | [1] | BOLT |
| 38 | S6710032 | [1] | NIPPLE;GREASE |
| 4 | K1000736 | [1] | BUSH |
| 5 | K9001856 | [1] | ROD;COVER |
| 6 | 110-00079 | [1] | DD-BUSH |
| 7 | 115-00050 | [1] | RING;RETAINING |
| 8 | K9001857 | [1] | SEAL;BUFFER |
| 9 | K9001858 | [1] | U-PACKING |
| 44 | S2212861 | [4] | BOLT;SOCKET |
| 45 | K9001159 | [1] | CLAMP;PIPE |
| 46 | S5102903 | [1] | WASHER |
| 47 | S0521853 | [1] | BOLT |
| 48 | K9001158 | [2] | U-BOLT |
| 49 | S5100603 | [4] | WASHER |
| 5 | K9001881 | [1] | ROD;COVER |
| 50 | S4012633 | [4] | NUT |
| 51 | S6710032 | [1] | NIPPLE;GREASE |
| 6 | 110-00081 | [1] | DD-BUSH |
| 7 | 115-00073 | [1] | RING;RETAINING |
| 8 | K9001882 | [1] | SEAL;BUFFER |
| 9 | K9001883 | [1] | U-PACKING |
