2438U1105R400 Bucket Cylinder Piston Rod Seal Kit For KOBELCO SK200 SK200LC
Price:
Negotiable
MOQ:
10 Sets
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

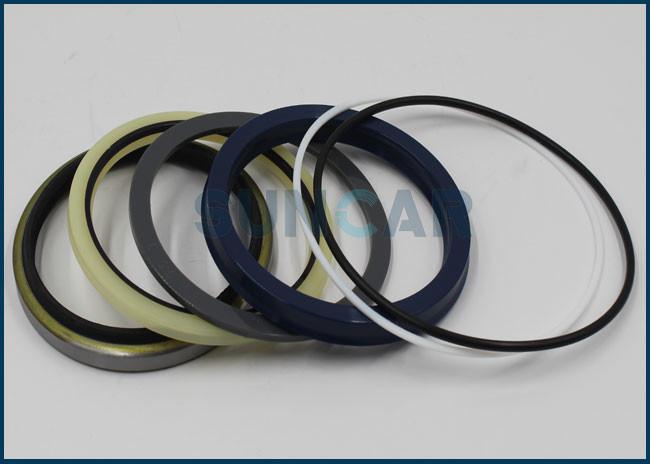

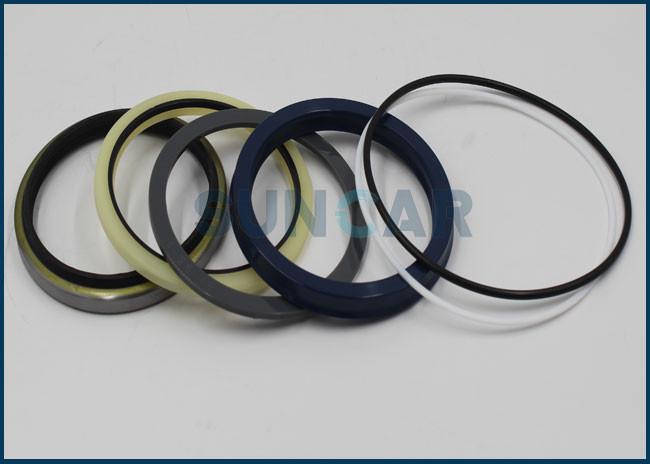

2438U1105R400 Bucket Cylinder Piston Rod Seal Kit for KOBELCO SK200 SK200LC
Description: Cassette oil seal for final drive&wheel brake(rear)
| Product name | 2438U1105R400 Bucket Cylinder Piston Rod Seal Kit for KOBELCO SK200 SK200LC |
| Brand name | SUNCAR |
| OEM number | BQ5052F |
| Quality | China good quality |
| Part No. |
2438U1105R400 |
| Quality | SUNCAR quality |
| MOQ | 10 sets |
| Feuture |
Sealing performance/Wear resistance/High&low temperature resistence |
| Payment | Paypal,T/T, Western Union, ,Bank Transfer |
| Paking | PP bag inside,carton box outside. |
| Loading port | Huangpu port,China |
| Features |
Durability,hard-wearing,higher-toughness |
| Transport ways |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
Condition |
100% new |
| Original place | Guangdong,China |
| Material | NBR |
|
Availability |
In stock |
| Compatible equipment |
|
Parts of Group:
| Pos. | Part No | Qty | Parts name |
| . . | 2438U1947F1 | [1] | BUCKET CYLINDER |
| 1 | 2438U1946S1 | [1] | TUBE |
| 2 | 2438U1946S2 | [1] | PISTON ROD |
| 3 | 2438U1105S3 | [1] | CYLINDER HEAD |
| 4 | 2438U1105S4 | [1] | BUSHING |
| 5 | 2438U1105S5 | [1] | SNAP RING |
| 6 | 2438U1105S6 | [1] | BACK-UP RING |
| 7 | 2438U1105S7 | [1] | RING |
| 8 | 2438U1105S8 | [1] | RING |
| 9 | 2438U1105S9 | [1] | SLIDE |
| 11 | ZD12G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm |
| 12 | 2438U1105S12 | [1] | BACK-UP RING |
| 13 | 2438U1105S13 | [8] | SCREW |
| 14 | 2438U1946S14 | [1] | BEARING CUP |
| 15 | 2438U1946S15 | [1] | SEAL |
| 16 | 2438U1946S16 | [1] | PISTON |
| 17 | 2438U1105S16 | [1] | RING ASSY. |
| 18 | 2438U1105S17 | [2] | RING |
| 19 | 2438U1105S18 | [2] | RING |
| 20 | 2438U1946S20 | [1] | SHIM |
| 21 | 2438U1946S21 | [1] | NUT |
| 22 | 2438U999S21 | [1] | SET SCREW |
| 23 | 2436U330S16 | [1] | BALL |
| 24 | 2438U1946S24 | [1] | BUSHING |
| 25 | 2438U1946S25 | [2] | RING |
| 26 | 2438U112S24 | [1] | BUSHING |
| 27 | 2438U1102S31 | [2] | SEAL |
| 28 | 2438U1946S28 | [1] | BAND |
| 29 | 2438U1946S29 | [1] | BAND |
| 30 | 2438U1102S29 | [2] | SCREW |
| 31 | 2438U999S30 | [2] | LOCK WASHER |
| 35 | 2438U1105S35 | [1] | RING |
| . . | 2438U1105R400 | [1] | REPAIR KIT |
| . . | 2438U1946R200 | [1] | REPAIR KIT |
| . . | 2438U1946R400 | [1] | REPAIR KIT |
