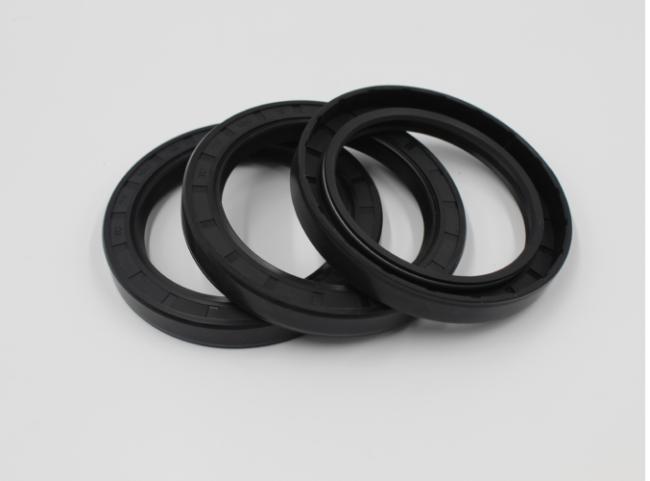

419-15-13660 Dust Seal KOMATSU Parts 532 BATTERY FRONT WA100 WA150 419-15-13660 4191513660
419-15-13660 SEAL,DUST KOMATSU parts 532, BATTERY, FRONT, WA100, WA150 419-15-13660 4191513660
| Product name | 419-15-13660 SEAL,DUST KOMATSU parts 532, BATTERY, FRONT, WA100, WA150 419-15-13660 4191513660 |
| Brand name | SUNCAR |
| AppliC-A-Tion | Lip seals are used in low to medium speed rotating appliC-A-Tions such as transmissions and pumps. |
| SpecifiC-A-Tions for Part No. | 419-15-13660 4191513660 |
| Compatible model |
SK |
| Material | NBR |
| MOQ | Accept trail order. |
| Supply alility | 2200 sets per months |
| Characteristic |
|
| Condition | 100 % new |
| Payment | Paypal, T/T, Western union, Bank transfer |
| Paking details | PP bag inside,carton box outside. |
| Original place | Guangdong province,China |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| Compatible equipment |
Wheel loaders ;Pipelayer;crawler loader;Articulated unloading truck; Crawler Bulldozer |
| CertifiC-A-Tion | ISO9001 |
| AppliC-A-Tion | Cylinder,constuction machinery works,retail |
| Primary seal material | Rubber |
| Availability | In stock. |
| Axial Width | 11.91 mm |
| Style | Oil seal |
| Construction Type | SBI |
| Material Nitrile Rubber | (NBR) - 75 Duro |
| Seal OD | 98.58 mm |
| Shaft OD | 76.2 mm |
Material Details:
| Material | Oil resistance | Abrasion resistance | Low temperature | high temperature | Acid resistance | Weather resistant |
| NBR | Very good | Very good | -40 | 125 | good | Moderate |
| ACM | Very good | Very good | -25 | 150 | Moderate | Very good |
| FKM | Very good | Very good | -20 | 250 | good | Very good |
| EPDM | Moderate | good | -40 | 125 | good | Very good |
| PTFE | Very good | Very good | -65 | 260 | Very good | Very good |
| SBR | Moderate | Very good | -45 | 100 | Moderate | Moderate |
| Fiber | Very good | Very good | -50 | 160 | Very good | Very good |
| HNBR | Very good | Very good | -25 | 140 | good | good |
| VMQ | good | good | -60 | 225 | Moderate | Very good |
Oil Seal Features:
1). Excellent durability and flexibility of use.
2). The specially designed rope enhances durability and length stability.
3). Excellent heat resistance, oil resistance and abrasion resistance.
4). The display is stable during high-speed rotation.
5). Due to the excellent special frame, heat resistance, oil, fatigue, aging and friction.
6). High power, fast speed, long service life, low distortion and less space.

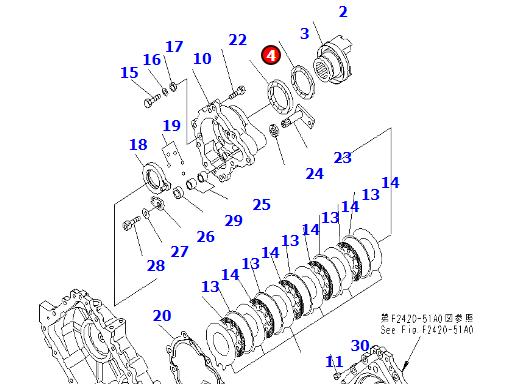

Parts on group :
| Pos. | Part No | Qty | Parts name | |
|---|---|---|---|---|
| 417-17-31004 | [1] | Transfer Assembly Komatsu China | ||
| 1. | 417-17-33311 | [1] | Coupling Assembly Komatsu | |
| 1. | 417-17-33310 | [1] | Coupling, Complete Komatsu | |
| 2. | 418-17-33320 | [1] | Coupling, Complete Komatsu | |
| 3. | 07012-50075 | [2] | Seal, Dust Komatsu | |
| 4. | 419-15-13660 | [2] | Seal, Dust Komatsu | |
| 5. | 423-22-11240 | [1] | Holder Komatsu China | |
| 6. | 01010-61680 | [1] | Bolt Komatsu China | |
| 7. | 01643-31645 | [1] | Washer Komatsu | |
| 8. | 07000-72055 | [1] | O-ring Komatsu | |
| 9. | 418-17-33420 | [6] | Shim, T=0.05mm Komatsu China | |
| 9. | 418-17-33430 | [6] | Shim, T=0.20mm Komatsu China | |
| 9. | 418-17-33440 | [4] | Shim, T=0.50mm Komatsu China | |
| 10. | 418-17-38116 | [1] | Housing Komatsu China | |
| 11. | 01010-80816 | [2] | Bolt Komatsu | |
| 12. | 01643-30823 | [2] | Washer Komatsu | |
| 13. | 418-17-38160 | [2] | Spacer Komatsu China | |
| 14. | 418-17-38210 | [1] | Hub Komatsu | |
| 15. | 04064-06020 | [1] | Ring, Snap Komatsu China | . |
| 16. | 418-17-38221 | [5] | Plate Komatsu | |
| 17. | 418-17-38170 | [1] | Pin Komatsu China | |
| 18. | 418-17-39710 | [4] | Disc Komatsu | |
| 19. | 56D-15-12710 | [4] | Spring, Wave Komatsu | |
| 20. | 418-17-38522 | [1] | Piston, And Pin Komatsu China | |
