CA3264428 326-4428 3264428 326-4428 Shaft Seal For C-A-T Main Hydraulic Pump K5V212DT For C-A-T Excavator E374DL E374F E390F
Price:
Negotiable
MOQ:
10 Sets；Accept trail order.
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
CA3264428 326-4428 3264428 326-4428 SEAL-SHAFT For C-A-T main hydraulic pump K5V212DT For C-A-T Excavator E374DL E374F E390F
| Product name | CA3264428 326-4428 3264428 326-4428 SEAL-SHAFT For C-A-T main hydraulic pump K5V212DT For C-A-T Excavator E374DL E374F E390F |
| Brand name | SUNCAR |
| AppliC-A-Tion | Lip seals are used in low to medium speed rotating appliC-A-Tions such as transmissions and pumps. |
| SpecifiC-A-Tions for Part No. | CA3264428 326-4428 3264428 |
| Compatible model |
SK |
| Material | FKM |
| MOQ | Accept trail order. |
| Supply alility | 2200 sets per months |
| Characteristic |
|
| Condition | 100 % new |
| Payment | Paypal, T/T, Western union, Bank transfer |
| Paking details | PP bag inside,carton box outside. |
| Original place | Guangdong province,China |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| Compatible equipment |
Wheel loaders ;Pipelayer;crawler loader;Articulated unloading truck; Crawler Bulldozer |
| CertifiC-A-Tion | ISO9001 |
| AppliC-A-Tion | Cylinder,constuction machinery works,retail |
| Primary seal material | Rubber |
| Availability | In stock. |
| Axial Width | 11.91 mm |
| Style | Oil seal |
| Construction Type | SBI |
| Material Nitrile Rubber | NBR A795 |
| Seal OD | 98.58 mm |
| Shaft OD | 76.2 mm |
Material Details:
| Material | Oil resistance | Abrasion resistance | Low temperature | high temperature | Acid resistance | Weather resistant |
| NBR | Very good | Very good | -40 | 125 | good | Moderate |
| ACM | Very good | Very good | -25 | 150 | Moderate | Very good |
| FKM | Very good | Very good | -20 | 250 | good | Very good |
| EPDM | Moderate | good | -40 | 125 | good | Very good |
| PTFE | Very good | Very good | -65 | 260 | Very good | Very good |
| SBR | Moderate | Very good | -45 | 100 | Moderate | Moderate |
| Fiber | Very good | Very good | -50 | 160 | Very good | Very good |
| HNBR | Very good | Very good | -25 | 140 | good | good |
| VMQ | good | good | -60 | 225 | Moderate | Very good |
Oil Seal Features:
1). Excellent durability and flexibility of use.
2). The specially designed rope enhances durability and length stability.
3). Excellent heat resistance, oil resistance and abrasion resistance.
4). The display is stable during high-speed rotation.
5). Due to the excellent special frame, heat resistance, oil, fatigue, aging and friction.
6). High power, fast speed, long service life, low distortion and less space.

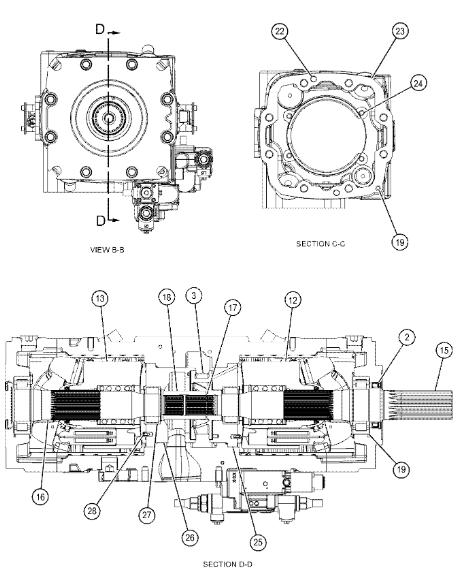

Parts for your 390F EXCAVATOR:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 241-4007 | [4] | SCREW-LOCK | |
| 2. | 326-4428 | [1] | SEAL-SHAFT | |
| 3. | 165-9353 | [1] | BLOCK | |
| 4. | 458-6021 Y | [1] | CONTROL AS-PISTON PUMP (FRONT) | |
| 5. | 458-6022 Y | [1] | CONTROL AS-PISTON PUMP (REAR) | |
| 6. | 458-6023 Y | [2] | VALVE GP-PUMP CONTROL | |
| 7. | 514-1339 | [1] | LEVER AS-CONTROL (FRONT) | |
| 8. | 514-1340 | [1] | LEVER AS-CONTROL (REAR) | |
| 9. | 458-6026 | [2] | VALVE GP-SHUTTLE | |
| 10. | 458-6027 Y | [1] | HOUSING GP-PUMP (FRONT) | |
| 11. | 458-6028 Y | [1] | HOUSING GP-PUMP (REAR) | |
| 12. | 458-6029 Y | [1] | ROTATING GP-PUMP (FRONT) | |
| 13. | 458-6030 Y | [1] | ROTATING GP-PUMP (REAR) | |
| 14. | 458-6031 | [2] | SENSOR GP-POSITION | |
| (EACH INCLUDES) | ||||
| 6V-8653 M | [2] | BOLT-SOCKET HEAD (M6X1X40-MM) | ||
| 448-1451 | [1] | SENSOR | ||
| 369-9618 | [1] | SENSOR GP-POSITION | ||
| 107-3117 | [1] | SEAL-O-RING | ||
| 15. | 458-6032 | [1] | SHAFT-FRONT | |
| 16. | 458-6033 | [1] | SHAFT-REAR | |
| 17. | 458-6034 | [1] | RING | |
| 18. | 458-6035 | [1] | COUPLING | |
| 19. | 123-2017 | [6] | PLUG-BREAK OFF | |
| 20. | 464-7720 | [1] | PLUG | |
| 21. | 9T-3871 | [2] | SEAL-RECTANGULAR | |
| 22. | 464-9280 | [4] | PIN-CYLINDER | |
| 23. | 464-9278 | [2] | GASKET | |
| 24. | 464-9286 M | [8] | SCREW-STOP (M8X1.25X15-MM) | |
| 25. | 512-4657 | [1] | BLOCK | |
| 26. | 512-5286 | [1] | BLOCK | |
| 27. | 464-9279 | [2] | BEARING | |
| 28. | 512-5287 | [2] | PIN-CYLINDER | |
| AVAILABLE REPAIR KIT(S): | ||||
| 458-6037 Y | [1] | KIT-SEAL (MAIN HYDRAULIC PUMP) | ||
| 458-6038 Y | [2] | KIT-SEAL (MAIN HYDRAULIC PUMP)(HEAD) | ||
| 458-6036 Y | [2] | KIT-BEARING (SHAFT) | ||
| 458-6965 Y | [2] | KIT-BEARING (SWASHPLATE) | ||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
