567-15-12830 5671512830 Seal Ring For Komatsu Bulldozers Pipelayers D155AX D275A D275AX D65EX D65PX D65WX D155C D355C
Price:
Negotiable
MOQ:
100 pcs
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
567-15-12830 5671512830 Transmission Seal Ring For 567-15-12830 5671512830 Seal Ring For Komatsu Bulldozers Pipelayers D155AX D275A D275AX D65EX D65PX D65WX D155C D355C
Description:

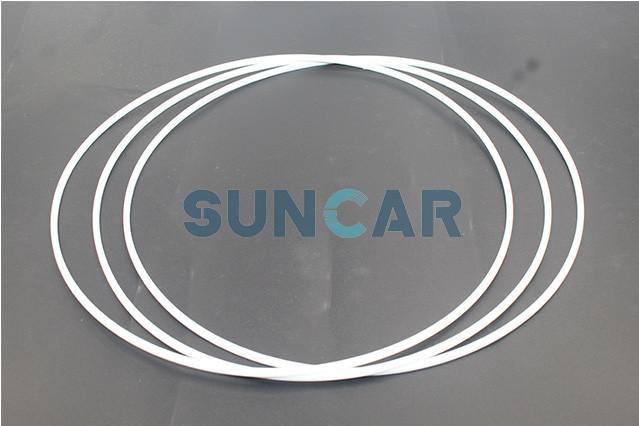

This is seal ring for Transmission or gear box Excavators KOMATSU.
| Product Name | 125-15-39210 1251539210 Transmission Seal Ring |
| Brand | SUNCAR |
| MOQ | Trial order is accepted |
| Transport mode | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Place of origin | Guangdong provice,China |
| Part number | 125-15-39210 |
| Cross number | 1251539210 |
| Loading port | Huangpu port,China |
| Seal type | Hydraulic gasket seal |
| Sample | Provide.Yes |
| Supply ability | 2200 pcs per month |
| Material | Rubber etc. |
| Seal style | Hydraulic Gasket Seal,Gearbox Seal;Mechanical Seal |
| Compatible equipment | D155AX D155C D275A D275AX D355C D65EX D65PX D65WX GD605A GD611A GD621A GD621R GD623A GD625A GD661A GD663A HD200 HD205 |

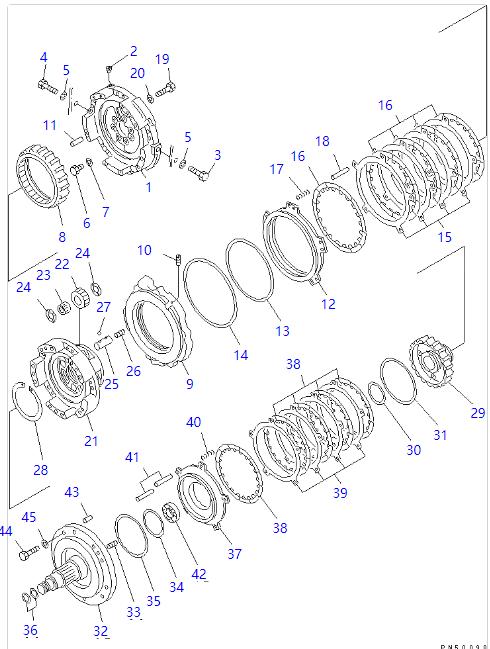

Parts on Group:
| Pos. | Part No | Qty | Parts name |
| 23E-15-00013 | [1] | TRANSMISSION ASSY | |
| 23E-15-11010 | [1] | TRANSMISSION ASSY,(EXCEPT PTO) | |
| 1 | 23E-15-00160 | [1] | HOUSING ASSY,LOW AND HIGH |
| 2 | 07043-70211 | [1] | PLUG |
| 3 | 01010-61675 | [2] | BOLT |
| 4 | 01010-61665 | [1] | BOLT |
| 5 | 01643-31645 | [3] | WASHER |
| 6 | 01010-81025 | [7] | BOLT |
| 7 | 01643-51032 | [7] | WASHER |
| 8 | 23E-15-12660 | [1] | GEAR,RING |
| 9 | 23E-15-00170 | [1] | HOUSING ASSY,LOW |
| 10 | 113-15-25490 | [1] | PLUG |
| 11 | 04020-01228 | [2] | PIN,DOWEL |
| 12 | 23E-15-12770 | [1] | PISTON,LOW |
| 13 | 125-15-39210 | [1] | RING,SEAL (K1) |
| 14 | 113-15-12861 | [1] | RING,SEAL (K1) |
| 15 | 238-15-12810 | [4] | PLATE |
| 16 | 23S-15-12740 | [5] | DISC |
| 17 | 103-15-22911 | [5] | SPRING,(L=54) |
| 18 | 238-15-11271 | [5] | PIN,(D=12, L=80) |
| 19 | 01010-81280 | [8] | BOLT |
| 20 | 103-15-11220 | [8] | WASHER |
| 21 | 23E-15-12340 | [1] | CARRIER |
| 22 | 23E-15-12451 | [4] | GEAR |
| 23 | 09232-02525 | [4] | BEARING |
| 24 | 09233-12620 | [8] | WASHER,THRUST |
| 25 | 23E-15-00181 | [4] | SHAFT ASSY |
| 26 | 145-14-11320 | [1] | PLUG |
| 27 | 04260-00635 | [4] | BALL |
| 28 | 04071-00140 | [1] | RING,SNAP |
| 29 | 23E-15-12280 | [1] | HUB |
| 30 | 07018-10753 | [1] | RING,SEAL |
| 31 | 22W-15-29510 | [1] | RING,SEAL |
| 32 | 23E-15-00192 | [1] | SHAFT ASSY |
| 34 | 234-15-29220 | [1] | RING,SEAL (K1) |
| 35 | 23E-15-19210 | [1] | SEAL,RING (K1) |
| 36 | 07018-20353 | [2] | RING,SEAL |
| 37 | 23E-15-12760 | [1] | PISTON,HIGH |
| 38 | 125-15-32750 | [5] | PLATE |
| 39 | 113-15-42711 | [4] | DISC |
| 40 | 568-15-15390 | [5] | SPRING,(L=51.8) |
| 41 | 22W-15-21290 | [10] | PIN,(D=10, L=65) |
| 42 | 06000-06207 | [1] | BEARING |
| 43 | 04020-01024 | [2] | PIN,DOWEL |
| 44 | 01010-81265 | [13] | BOLT |
| 45 | 01643-31232 | [13] | WASHER |
