423-33-31430 4233331430 Transmission Seal Ring For Komatsu Wheel Loader Front Alex Differential WA380/WA430-5/6/7

Price Negotiable
Price: Negotiable
MOQ: 100 sets
Delivery Time: 3-7 Days After Payment Received(Public Holiday Excluded)
Brand: SUNCAR
Product Description

423-33-31430 4233331430 Transmission Seal Ring For Komatsu Wheel Loader Front Alex Differential WA380/WA430-5/6/7



Description: The Gasket seal ring is a ring-shaped sealing element with a gap, which is pressed against the inner hole wall of the stationary element by virtue of its elasticity after being pressed to play a sealing role.



Product Name 423-33-31430 4233331430 Transmission Seal Ring
Brand SUNCAR
MOQ Trial order is accepted
Transport mode By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)

Place of origin

Guangdong provice,China
Loading port Huangpu port,China
Seal type Hydraulic gasket seal
Sample Provide.Yes
Compatible model WA380 WA380Z WA400 WA430
Supply ability 2200 pcs per month
Material Rubber etc.
Seal style Hydraulic Gasket Seal,Gearbox Seal;Mechanical Seal
Compatible equipment  Loader,komatsu





Advantages


1. Good abrasion resistance property;


2. Good high temperature resistance and low temperature resistance property;


3. Good ozone corrosion resistance property and climate adaptability;


4. High abrasion resistance property;


5. Low abrasion resistance property;


6. Low permanent compression deformation feature;


7.  Good resilience.



Order Process:


1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term).


2. Quoting our competitive price for you.


3. Place an order after approving the quotation or products.


4. We will send Proforma Invoice or sales confirmation.


5. You prepay by T/T or Paypal or Western Union or through bank.


6. We will starting to produce after we get your kind payment.


7. Packing.


8. Shipping the goods to your(our)forwarder.


9. Sending all doc for your custom clearance.


10. Time to reorder.

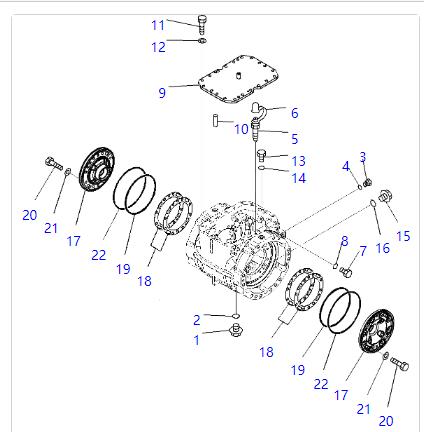

Parts on group :



Pos. Part No Qty Parts name
  423-22-30061 [1] Axle Assembly
  423-22-31050 [1] Differential Assembly
1 07044-13620 [1] Plug
2 07002-13634 [1] O-ring
3 07040-11409 [2] Plug
4 07002-61423 [2] O-ring
5 419-33-11460 [2] Bleeder
6 566-32-11620 [2] Cap
7 07040-12012 [2] Plug
8 07002-12034 [2] O-ring
9 423-22-33130 [1] Cover
10 04020-01228 [2] Pin, Dowel
11 01010-61440 [20] Bolt
12 01643-31445 [20] Washer, Flat
13 07040-11812 [2] Plug
14 07002-11823 [2] O-ring
15 07041-13612 [1] Plug
17 423-22-37161 [2] Carrier
18 423-22-31361 [6] Shim, T=0.05mm
18 423-22-31371 [4] Shim, T=0.2mm
18 423-22-31381 [4] Shim, T=0.3mm
18 423-22-31391 [2] Shim, T=0.8mm
19 423-33-31430 [2] Ring
20 01010-61445 [16] Bolt
22 419-33-21412 [2] Seal
