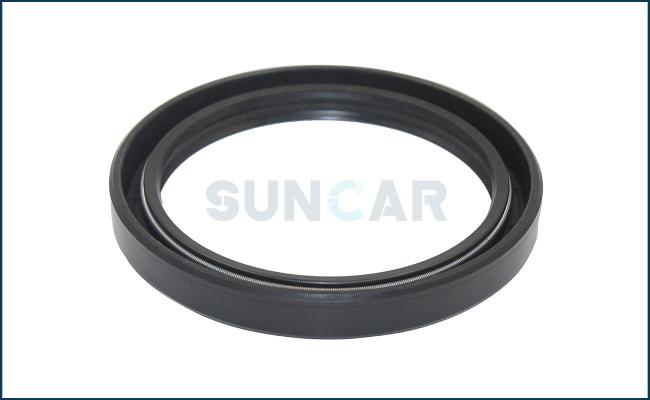

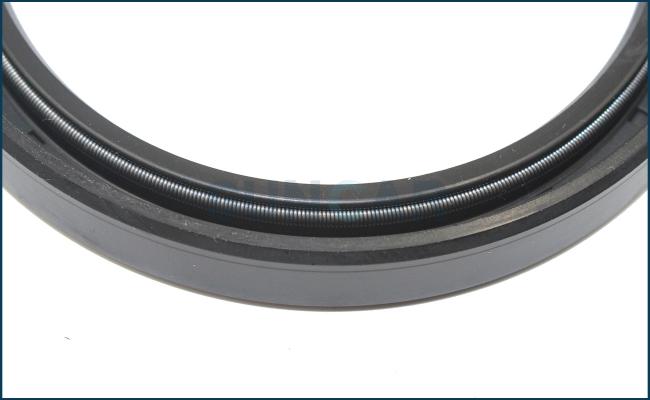

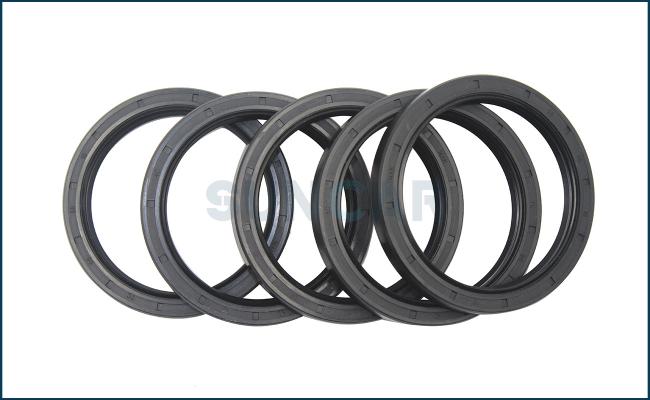

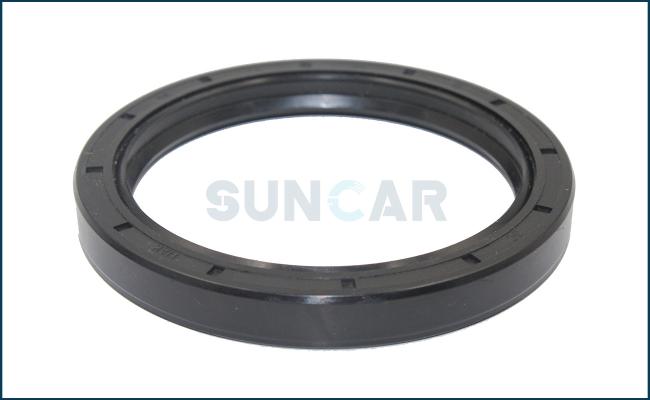

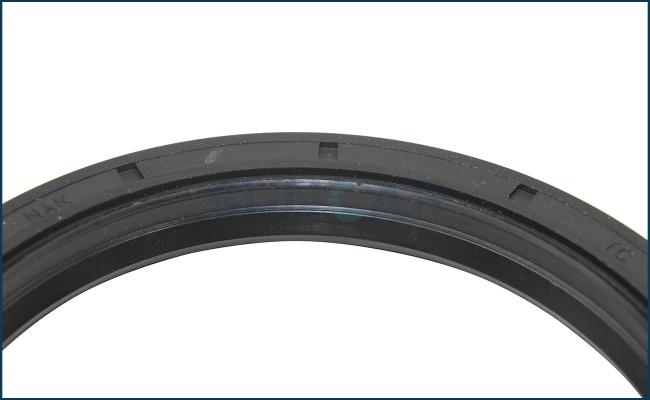

419-20-15620 4192015620 Oil Seal TC for Komatsu Wheel Loader Front Drive Shaft 532 WA320/200/250/270/300-3 WA200/250-1
419-20-15620 4192015620 Oil Seal TC for Komatsu Wheel Loader Front Drive Shaft 532 WA320/200/250/270/300-3 WA200/250-1
| Product name | 419-20-15620 4192015620 Oil Seal TC for Komatsu Wheel Loader |
| Brand name | SUNCAR |
| SpecifiC-A-Tions for Part No. | 419-20-15620 4192015620 |
| Availability |
In stock. |
| MOQ | Accept trail order. |
| Supply alility | 2200 sets per months |
| Characteristic |
|
| Condition | 100 % new |
| Payment | Paypal, T/T, Western union, Bank transfer |
| Paking details | PP bag inside,carton box outside. |
| Original place | Guangdong province,China |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| CertifiC-A-Tion | ISO9001 |
| AppliC-A-Tion | Cylinder,constuction machinery works,retail |
Material Details:
| Material | Oil resistance | Abrasion resistance | Low temperature | high temperature | Acid resistance | Weather resistant |
| NBR | Very good | Very good | -40 | 125 | good | Moderate |
| ACM | Very good | Very good | -25 | 150 | Moderate | Very good |
| FKM | Very good | Very good | -20 | 250 | good | Very good |
| EPDM | Moderate | good | -40 | 125 | good | Very good |
| PTFE | Very good | Very good | -65 | 260 | Very good | Very good |
| SBR | Moderate | Very good | -45 | 100 | Moderate | Moderate |
| Fiber | Very good | Very good | -50 | 160 | Very good | Very good |
| HNBR | Very good | Very good | -25 | 140 | good | good |
| VMQ | good | good | -60 | 225 | Moderate | Very good |
Oil Seal Features:
1). Excellent durability and flexibility of use.
2). The specially designed rope enhances durability and length stability.
3). Excellent heat resistance, oil resistance and abrasion resistance.
4). The display is stable during high-speed rotation.
5). Due to the excellent special frame, heat resistance, oil, fatigue, aging and friction.
6). High power, fast speed, long service life, low distortion and less space.

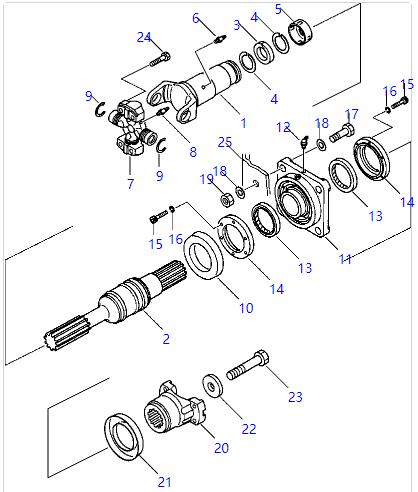

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 419-20-13011 | [1] | DRIVE SHAFT ASSEMBLY, FRONT | |
| 419-20-13113 | [1] | DRIVE SHAFT | |
| 419-20-13650 | [1] | YOKE AND SHAFT ASSEMBLY | |
| 1 | 419-20-13720 | [1] | YOKE |
| 2 | 419-20-13730 | [1] | SHAFT |
| 3 | 419-20-13661 | [1] | SEAL |
| 4 | 419-20-13671 | [2] | RETAINER |
| 5 | 419-20-12681 | [1] | COVER |
| 6 | 419-20-12640 | [1] | FITTING, GREASE |
| 7 | 419-20-12621 | [1] | SPIDER ASSEMBLY |
| 9 | 419-20-12691 | [2] | RING, SNAP |
| 10. | 419-20-13530 | [1] | DEFLECTOR |
| 11 | 419-20-15113 | [1] | BEARING, FLANGE |
| 12. | 419-20-15660 | [1] | FITTING, GREASE |
| 13. | 419-20-15620 | [2] | SEAL |
| 14. | 419-20-15630 | [2] | COVER |
| 15. | 01252-40620 | [12] | BOLT |
| 16. | 01602-20619 | [12] | WASHER, SPRING |
| 17 | 01010-31660 | [4] | BOLT |
| 18 | 01643-31645 | [8] | WASHER |
| 19 | 01580-01613 | [4] | NUT |
| 419-20-13030 | [1] | COUPLING ASSEMBLY | |
| 20. | 419-20-13512 | [1] | COUPLING |
| 22 | 423-22-11240 | [1] | HOLDER |
| 23 | 01011-61615 | [1] | BOLT |
| 24 | 01050-61045 | [4] | BOLT |
