233-71-00150 2337100150 Blade Side Shift Cylinder Seal Kit For Komatsu
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
233-71-00150 2337100150 Blade Side Shift Cylinder Seal Kit For KOMATSU GD31-1
| Name | 233-71-00150 2337100150 Blade Side Shift Cylinder Seal Kit |
| Type | Blade Side Shift Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | IDI |
Part Numbers of Cylinder Service Kits:
| 721-98-04460 | 232-63-86100 | 7079958210 |
| 707-02-08120 | 234-63-13001 | 707-99-67110 |
| 707-98-40130 | 234-63-18700 | 7079862120 |
| 707-98-25690 | 234-63-18701 | 707-99-68660 |
| 707-98-23270 | 234-63-18800 | 7079968660 |
| 721-98-01460 | 234-63-18801 | 707-99-77300 |
| 707-98-22250 | 234-63-23001 | 707-99-64010 |
| 707-98-25030 | 234-63-23002 | 707-99-64040 |
| 707-99-26210 | 234-63-25001 | 707-99-32140 |
| 721-98-01230 | 234-63-28100 | 707-99-58210 |
| 707-98-25420 | 234-63-32200 | 707-99-64410 |
| 707-98-25031 | 234-63-32300 | 707-99-64400 |
| 707-98-11180 | 234-63-43001 | 707-99-64250 |
| 707-98-24040 | 234-63-66100 | 707-99-24120 |
| 707-98-15400 | 234-72-05130 | 707-99-73150 |
| 707-98-25230 | 23C-63-13101 | 707-99-75490 |
| 707-99-05620 | 23C-63-23101 | 707-99-32250 |
| 707-99-26200 | 23C-63-28101 | 707-99-32110 |
| 707-99-24320 | 23C-63-32100 | 707-98-12100 |
| 721-98-04660 | 23C-63-43101 | 707-99-65420 |
| 707-99-66670 | 707-98-24530 | 707-99-67540 |
| 707-98-24400 | 707-98-34500 | 707-98-62120 |
| 707-98-25340 | 707-98-34500 | 707-99-74080 |
| 707-99-35620 | 707-99-A9020 | 707-99-11040 |
| 707-99-25280 | 707-99-A9030 | 707-98-24820 |
| 707-99-26220 | 707-99-A9040 | 707-98-12110 |

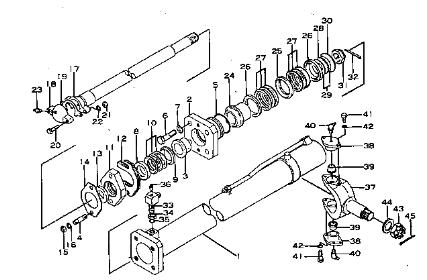

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 233-71-00150 | [1] | CYLINDER AS'Y | |
| 1. | 233-71-17111 | [1] | CYLINDER |
| 1 | 07240-00522 | [1] | NIPPLE |
| 233-71-00160 | [1] | COVER AS'Y | |
| 2 | 233-71-17211 | [1] | COVER |
| 3 | 306-61-12221 | [1] | BUSHING |
| 3 | 232-60-91330 | [1] | BUSHING |
| 4 | 01100-31240 | [2] | STUD |
| 5 | 07000-05070 | [1] | O-RING (KIT) |
| 6. | 01000-41655 | [4] | BOLT |
| 7. | 01602-11648 | [4] | WASHER |
| 8. | 232-27-12220 | [1] | RETAINER |
| 9. | 306-61-12231 | [1] | SEAT |
| 9. | 232-60-93130 | [1] | SEAT |
| 10. | 306-61-12241 | [3] | PACKING |
| 10. | 232-60-91340 | [3] | PACKING |
| 11. | 233-71-17220 | [1] | COVER |
| 12. | 233-71-11240 | [7] | SHIM, 0.5MM (KIT) |
| 13. | 232-27-12250 | [1] | SEAL |
| 14. | 233-71-11250 | [1] | PLATE |
| 15. | 01500-41210 | [2] | NUT |
| 16. | 01602-11236 | [2] | WASHER |
| 17. | 233-71-17311 | [1] | ROD |
| 19. | 232-71-11340 | [4] | SHIM, 0.2MM (KIT) |
| 20. | 01000-41665 | [2] | BOLT |
| 21. | 01500-41613 | [2] | NUT |
| 23. | 07020-00000 | [1] | FITTING |
| 24. | 233-71-17321 | [1] | PISTON |
| 25. | 233-71-12230 | [1] | SEAT |
| 26. | 261-61-13230 | [2] | RETAINER |
| 27. | 232-71-11242 | [6] | V-PACKING |
| 28. | 233-71-11350 | [6] | SHIM, 0.6MM (KIT) |
| 29. | 233-71-11360 | [2] | SHIM, 0.2MM (KIT) |
| 30. | 233-71-17330 | [1] | WASHER |
| 31. | 01511-43018 | [1] | NUT |
| 32. | 04050-06055 | [1] | PIN |
| 33 | 233-27-12420 | [1] | ELBOW |
| 34 | 01501-42009 | [1] | NUT |
| 35 | 07000-03017 | [1] | O-RING (KIT) |
| 36 | 07042-00108 | [1] | PLUG |
| 37 | 233-71-17410 | [1] | YOKE |
| 233-71-00170 | [2] | COVER AS'Y | |
| 38. | 233-71-17420 | [1] | COVER |
| 39. | 233-71-17430 | [1] | BUSHING |
| 40. | 07020-00675 | [2] | FITTING |
| 41 | 01000-41025 | [4] | BOLT |
| 42 | 01602-11030 | [4] | WASHER |
| 43 | 01511-43620 | [1] | NUT |
| 44 | 01640-13650 | [1] | WASHER |
| 45 | 04050-06065 | [1] | PIN |
