China 707-98-56625 7079856625 Service Seal Kit For Komatsu Bulldozer Blade Lift Cylinder D375A-3/3D/5D for sale

707-98-56625 7079856625 Service Seal Kit For Komatsu Bulldozer Blade Lift Cylinder D375A-3/3D/5D

Name: 707-98-56625 7079856625 Service Seal Kit For Komatsu Bulldozer Blade Lift Cylinder D375A-3/3D/5D
Brand: GUANGZHOU SUNCAR SEALS CO.,LTD.

Price Negotiable

Price: Negotiable

MOQ: Accept trial order

Delivery Time: 3-5 days after payment received(public holiday excluded)

Brand: SUNCAR

Product Description

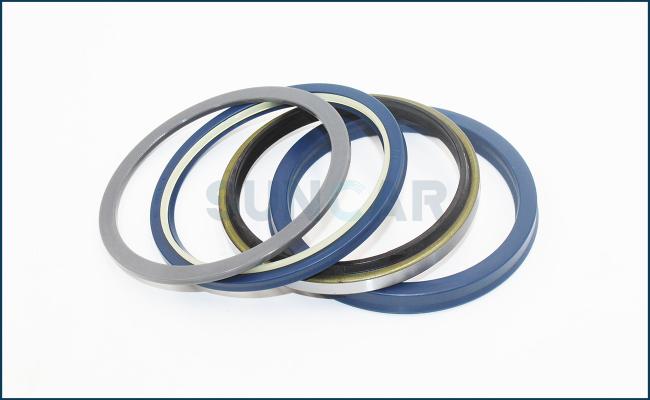

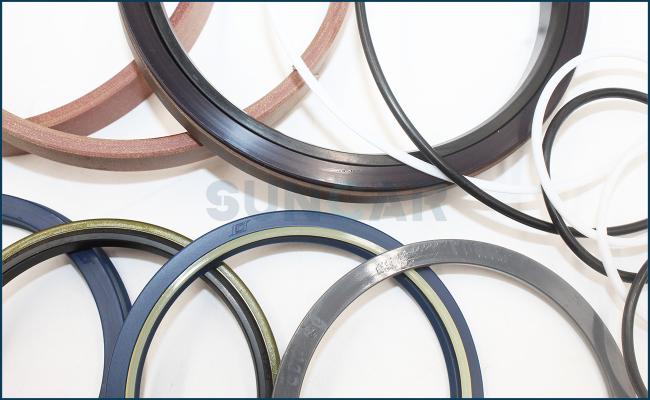

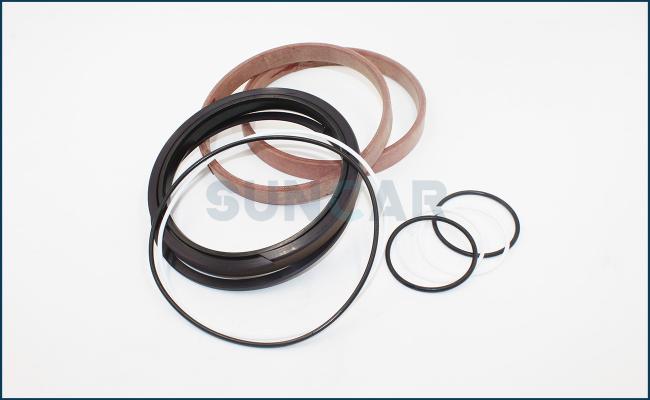

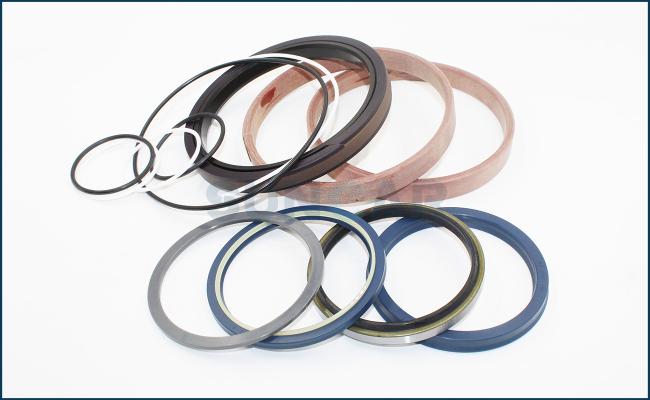

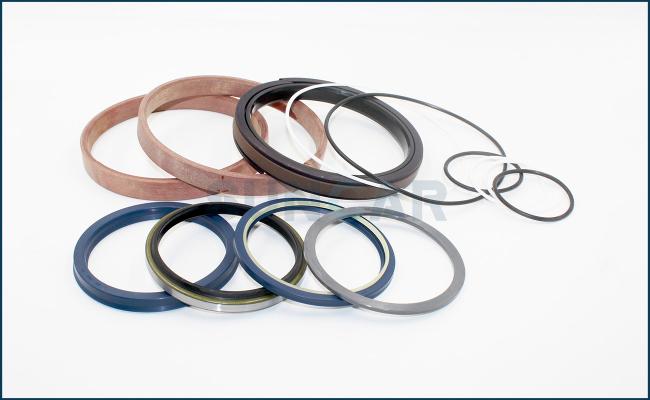

707-98-56625 7079856625 Service Seal Kit For Komatsu Bulldozer Blade Lift Cylinder D375A-3/3D/5D

Name	707-98-56625 7079856625 Service Seal Kit
Type	Blade Lift Cylinder Seal Kit
Pressure	0~60MPa
Temperature	-45℃ +200℃
Speed	15m/s
Medium	Hydraulic oil, fire retardant liquid, water and others
Features	Pressure & Oil Resistant
Material	PTU

Part Numbers of Cylinder Service Kits:

707-99-45525	707-98-74400	707-99-84050
707-99-45530	707-98-81010	707-99-75530
707-99-73040	707-99-56600	707-99-77400
707-99-73050	707-99-56610	131-62-05080
707-99-73070	707-99-74400	131-63-05050
707-99-73080	707-99-74410	130-63-05070
707-99-11050	707-99-74420	130-817-05030
707-99-64405	707-99-74430	130-63-05020
707-99-64440	707-99-74460	130-63-05050
707-99-45310	707-99-74100	707-98-75410
707-99-66600	707-99-74110	707-98-75420
707-99-66610	707-99-81010	707-98-95400
707-99-64200	707-99-81020	707-98-95410
707-99-45320	707-98-56620	707-98-95421
707-99-45376	707-98-56625	707-98-95430
707-99-47140	707-99-74020	707-98-84410
707-99-66620	707-99-74520	707-98-84420
707-99-66645	707-99-56690	707-98-84441
707-99-66790	707-98-24910	707-98-84450
707-99-66630	707-98-24700	707-98-22070
707-99-66655	707-99-24930	707-99-96202
707-99-66780	707-99-24640	131-63-05020
707-99-64210	707-99-24650	131-63-05040
707-99-64370	707-98-41130	135-63-05050
707-99-66690	707-98-34510	135-63-05040
114-63-05010	707-98-34590	135-63-05020
114-63-05080	707-98-42420	135-63-05030
114-63-05030	707-99-42530	135-63-05010
707-98-22850	707-98-41060	707-98-36450
707-98-24720	707-99-34590	707-99-35170
707-98-24710	707-99-84040	707-99-35160
707-99-14930	707-98-84011	707-98-34580
707-99-24660	707-98-82010	707-98-43620

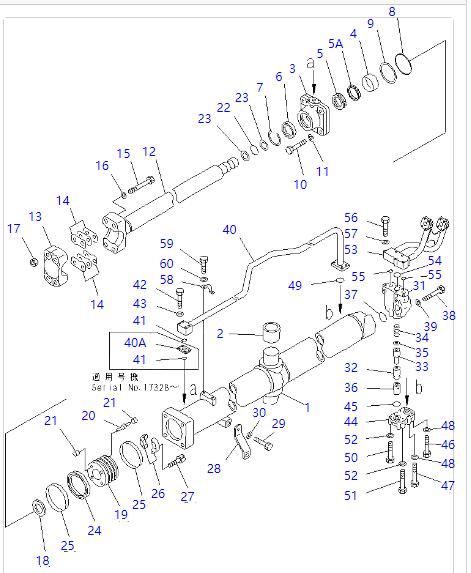

Parts on group :

Pos.	Part No	Qty	Parts name
G-1.	707-03-X7200	[1]	CYLINDER GROUP,L.H. (FINAL COATING)
G-1.	195-63-X8211	[1]	CYLINDER GROUP,L.H.
G-1.	195-63-X8210	[1]	CYLINDER GROUP,L.H.
G-2.	707-03-X7210	[1]	CYLINDER GROUP,R.H. (FINAL COATING)
G-2.	195-63-X8221	[1]	CYLINDER GROUP,R.H.
G-2.	195-63-X8220	[1]	CYLINDER GROUP,R.H.
	195-63-08111	[1]	CYLINDER ASSY
1.	195-63-22141	[1]	CYLINDER
2.	195-63-13390	[2]	BUSHING
3.	707-27-15150	[1]	HEAD,CYLINDER
4.	707-52-90650	[1]	BUSHING
5.	707-51-90730	[1]	U-PACKING,ROD (KIT)
5A.	707-51-90630	[1]	RING (KIT)
6.	195-63-94170	[1]	SEAL,DUST (KIT)
7.	07179-13104	[1]	RING,SNAP
8.	07000-52145	[1]	O-RING (KIT)
9.	07146-02146	[1]	RING,BACK-UP (KIT)
10.	01010-82785	[4]	BOLT
11.	01643-32780	[4]	WASHER
12.	195-63-22122	[1]	ROD,PISTON
13.	195-63-22171	[1]	CAP
14.	195-63-22272	[10]	SHIM, 1.0MM
15.	01011-82475	[4]	BOLT
16.	01643-32460	[4]	WASHER
17.	01580-12419	[4]	NUT
18.	707-40-15050	[1]	RETAINER
	195-63-22480	[1]	PISTON ASSY
22.	07000-52055	[1]	O-RING (KIT)
23.	07001-02055	[2]	RING,BACK-UP (KIT)
24.	707-44-15180	[1]	RING,PISTON (KIT)
25.	707-39-15820	[2]	RING,WEAR (KIT)
26.	707-40-15060	[2]	SPACER
27.	01252-61035	[6]	BOLT
28.	195-63-13491	[1]	HOOK
29.	01010-81670	[1]	BOLT
30.	01643-31645	[1]	WASHER
	195-63-14300	[2]	VALVE ASSY,QUICK DROP
34.	195-63-14180	[1]	SPRING
35.	01642-21216	[1]	WASHER
36.	195-63-14163	[1]	COLLAR
38	01011-81615	[2]	BOLT
40	195-63-22570	[1]	TUBE,L.H.
40	195-61-43750	[1]	TUBE,L.H.
40	195-63-22670	[1]	TUBE,R.H.
40	195-61-43740	[1]	TUBE,R.H.
40A.	195-61-51410	[1]	PLATE
41	07000-53035	[2]	O-RING (KIT)
42	01010-81075	[4]	BOLT
42	01010-51070	[4]	BOLT
43	01643-31032	[4]	WASHER
44	195-63-14130	[1]	ELBOW
45	07000-53048	[1]	O-RING (KIT)
46	01010-81270	[2]	BOLT
47	01010-81280	[2]	BOLT
48	01643-31232	[4]	WASHER
49	07000-53045	[1]	O-RING (KIT)
50	01010-81065	[2]	BOLT
53	195-63-22580	[1]	TUBE,L.H.
53	195-61-51181	[1]	TUBE,L.H.
53	195-63-22680	[1]	TUBE,R.H.
53	195-61-51191	[1]	TUBE,R.H.
55	07000-53038	[2]	O-RING (KIT)
58	07282-03411	[1]	CLAMP
59	01010-81020	[2]	BOLT
	707-98-56625	[2]	SERVICE KIT
	707-99-56610	[2]	SERVICE KIT
