566-63-11100 5666311100 Cylinde Assy Service Kit For Komatsu Dump Truck Steering Cylinder HD320-2 HD325-2 HD460-1
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
566-63-11100 5666311100 Cylinde Assy Service Kit For Komatsu Dump Truck Steering Cylinder HD320-2 HD325-2 HD460-1
| Part name | 566-63-11100 5666311100 Cylinde Assy Service Kit |
| Brand | SUNCAR |
| Fits brand | KOMATSU |
| Part number | 566-63-11100 5666311100 |
| Style | Cylinder seal kit |
| Fits models | HD320-2 HD325-2 HD460-1 |
| Consist of | Back-up ring;wear ring;dust seal;piston ring;O-ring |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Packaging | Nuetral packaging or OEM packaging |
| Compatible equipment | KOMATSU construction equipment; |
| Place of original | China |
| Transport mode | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Terms of payment | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Feature | Durability,hard-wearing,higher-toughness |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
Part Numbers of Cylinder Service Kits:
| 707-99-50780 | 721-98-02600 | 707-98-26820 |
| 721-98-02460 | 707-98-13600 | 707-98-29650 |
| 707-98-47740 | 721-98-01960 | 707-98-29680 |
| 707-98-11450 | 21X-63-02050 | 707-98-30710 |
| YM172168-72010 | 707-99-59371 | 707-98-32520 |
| 707-99-46470 | 723-98-00570 | 707-98-34180 |
| 878000516 | YM172142-99340 | 707-98-34750 |
| 707-99-47150 | 721-98-01970 | 707-98-35520 |
| 20S-63-76101 | 707-99-68515 | 707-98-43130 |
| 707-98-24930 | 20T-63-66300 | 707-98-43560 |
| 20S-63-56101 | 707-99-67125 | 707-98-55500 |
| 878000517 | YM172975-72360 | 707-98-57330 |
| 707-98-45260 | 721-98-01980 | 707-99-26120 |
| 707-98-14580 | 21X-63-02020 | 707-99-26570 |
| 707-99-59600 | 20T-63-86104 | 707-99-26690 |
| 707-99-59740 | 20T-63-76105 | 707-99-35290 |
| 707-98-22890 | 20T-63-96100 | 707-99-35351 |
| 707-99-59330 | 20T-63-56103 | 707-99-36660 |

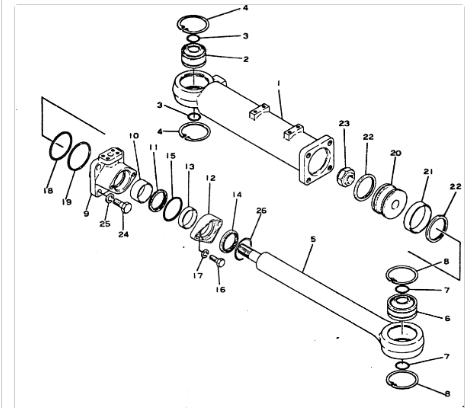

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 566-63-11300 | [1] | CYLINDER ASSY,L.H. | |
| 566-63-11100 | [1] | CYLINDER ASSY,L.H. | |
| 566-63-11001 | [1] | CYLINDER ASSY,L.H. | |
| 566-63-11400 | [1] | CYLINDER ASSY,R.H. | |
| 566-63-11200 | [1] | CYLINDER ASSY,R.H. | |
| 566-63-12001 | [1] | CYLINDER ASSY,R.H. | |
| 1. | 566-63-11232 | [1] | CYLINDER,L.H. |
| 1. | 566-63-11231 | [1] | CYLINDER,L.H. |
| 1. | 566-63-11310 | [1] | CYLINDER,R.H. |
| 1. | 566-63-11131 | [1] | CYLINDER,R.H. |
| 2. | 07137-04006 | [1] | BUSHING |
| 3. | 07000-23040 | [2] | O-RING |
| 4. | 04065-09030 | [2] | RING |
| 5. | 566-63-11141 | [1] | ROD |
| 5. | 566-63-11140 | [1] | ROD |
| 9. | 566-63-11150 | [1] | HEAD |
| 10. | 07177-06030 | [1] | BUSHING |
| 11. | 707-51-60110 | [1] | PACKING |
| 11. | 111-63-22233 | [1] | PACKING |
| 11. | 111-63-22231 | [1] | U-PACKING |
| 12. | 566-63-11330 | [1] | GLAND |
| 12. | 281-63-13190 | [1] | GLAND |
| 13. | 07177-06015 | [1] | BUSHING |
| 14. | 141-63-93270 | [1] | SEAL |
| 14. | 07016-00608 | [1] | SEAL |
| 15. | 07000-23075 | [1] | O-RING |
| 16. | 01010-51450 | [2] | BOLT |
| 16. | 01010-31440 | [2] | BOLT |
| 17. | 01602-21442 | [2] | WASHER |
| 17. | 01602-01442 | [2] | WASHER |
| 18. | 07000-22095 | [1] | O-RING |
| 19. | 07146-02096 | [1] | RING |
| 20. | 566-63-11170 | [1] | PISTON |
| 20. | 281-63-13220 | [1] | PISTON |
| 21. | 07155-01025 | [1] | RING |
| 22. | 281-63-11230 | [1] | RING |
| 23. | 07165-13033 | [1] | NUT |
| 23. | 113-63-32480 | [1] | NUT |
| 23. | 07165-03033 | [1] | NUT |
| 24. | 01010-51845 | [4] | BOLT |
| 24. | 01010-31845 | [4] | BOLT |
| 25. | 01602-21854 | [4] | WASHER |
| 25. | 01602-01854 | [4] | WASHER |
| 26. | 07179-00082 | [1] | RING,SNAP |
