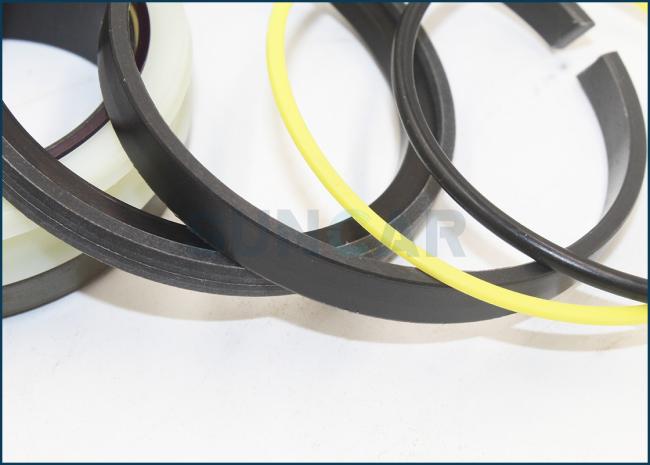

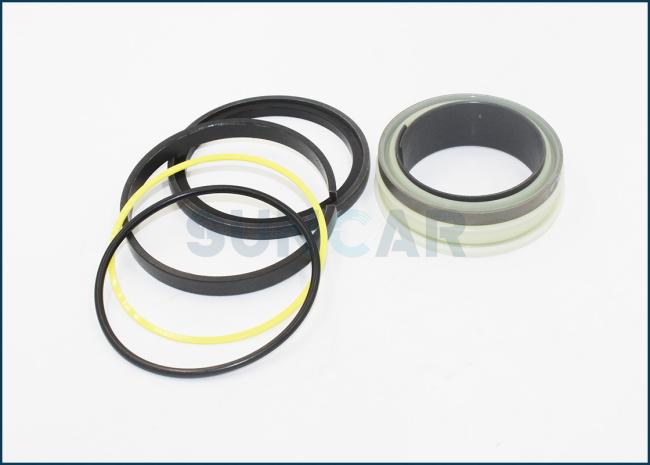

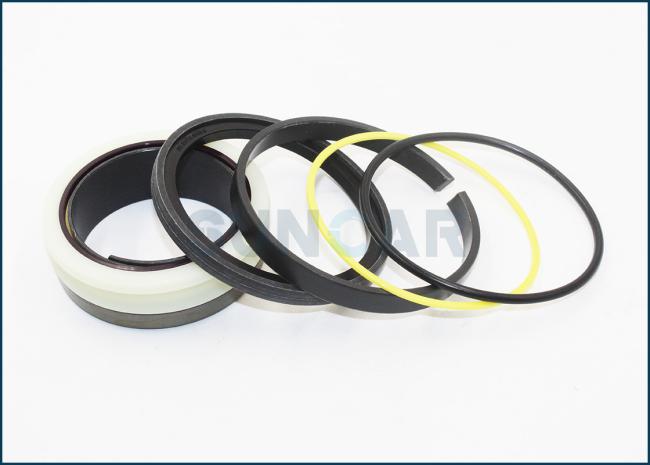

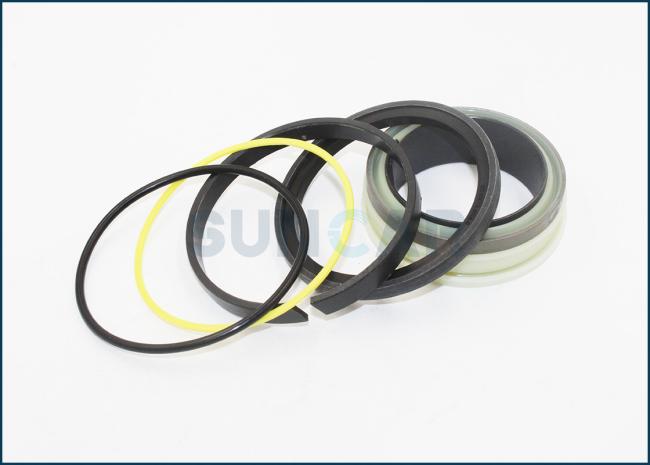

1542923C2 Seal Kit For Case Backhoe Loader Bucket Cylinder 580SK 580SL 580SM 580SM+ 590 590L 590SL 590SM 590SM+
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
1542923C2 Seal Kit For Case Backhoe Loader Bucket Cylinder 580SK 580SL 580SM 580SM+ 590 590L 590SL 590SM 590SM+
| Name | 1542923C2 Seal Kit |
| Model | 580SK 580SL 580SM 580SM+ 590 590L 590SL 590SM 590SM+ |
| Part numbers | 1542923C2 |
| Type | Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Case Cylinder Service Kits:
| 84259219 | LZ00440 | LZ012050 |
| LZ00448 | LZ00463 | LZ012090 |
| LZ008380 | LZ00464 | LZ013720 |
| LZ014960 | LZ00469 | 84404910 |
| LZ00456 | LZ00470 | LZ013800 |
| LZ014900 | LZ00471 | 84402182 |
| LZ014870 | LZ00472 | 84282953 |
| LZ014930 | LZ00473 | 47773169 |
| 84259222 | LZ00482 | LZ012020 |
| 84259225 | LZ00483 | LZ010160 |
| 84259227 | LZ00484 | LZ012040 |
| 84259323 | LZ00495 | LZ12030 |
| 84257772 | LZ00496 | LZ011260 |
| LZ008290 | LZ00620 | LZ011310 |
| LZ008350 | LZ00621 | LZ013490 |
| LZ00453 | LZ006960 | LZ013760 |
| LZ00449 | LZ006970 | LZ012100 |
| LZ00450 | LZ006980 | LZ012110 |
| 191747A1 | LZ007310 | LZ010940 |

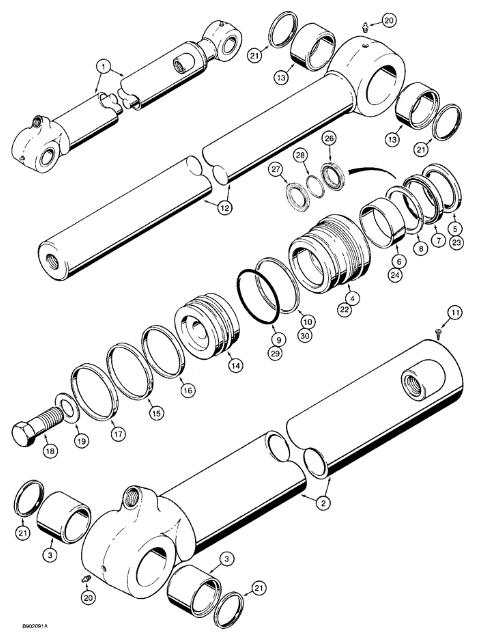

Parts on group (580SK):
| Pos. | Part No | Qty | Parts name |
| 1 | 1986901C1 | [1] | CYLINDER |
| 1 | 235916A1R | [1] | REMAN-HYD CYLINDER |
| 1 | 235916A1C | [1] | CORE-HYD CYLINDER |
| 2 | 1340992C1 | [1] | TUBE |
| 3 | D141555 | [2] | BUSHING,50.19mm ID x 60mm OD x 40mm L |
| . . | G109894 | [1] | GLAND |
| 4 | NSS | [1] | NOT SOLD SEPARAT |
| 5 | D95146 | [1] | WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk |
| 6 | G109908 | [1] | BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L |
| 7 | G109228 | [1] | SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk |
| 8 | G107998 | [1] | SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk |
| 9 | 238-5235 | [1] | O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro |
| 10 | D38858 | [1] | BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk |
| 11 | 276-2446 | [1] | SELF-TAP SCREW,Hex Hd, #8 x 3/8" |
| 12 | 1986903C1 | [1] | PISTON ROD |
| 13 | D140029 | [2] | BUSHING,50.22mm ID x 60mm OD x 25.5mm L |
| 14 | 1986906C1 | [1] | PISTON |
| 15 | G102286 | [1] | SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk |
| 16 | G100710 | [1] | RING,Square, 5.28mm Thk x 75.31mm ID |
| 17 | G100711 | [1] | SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk |
| 18 | 28-2052 | [1] | BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8 |
| 19 | G104989 | [1] | WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk |
| 20 | 219-1 | [2] | LUBE NIPPLE,1/8" - 27 NPTF |
| 21 | D123655 | [4] | SEAL,50mm ID x 60.15mm OD x 4.06mm Thk |
| . . | NSS | [1] | NOT SOLD SEPARAT |
| 22 | 1542922C1 | [1] | GLAND |
| 23 | D95146 | [1] | WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk |
| 24 | G109908 | [1] | BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L |
| 25 | 1542879C1 | [1] | SEAL KIT,63.5mm Rod |
| 26 | 1542931C1 | [1] | SEAL |
| 27 | 1542930C1 | [1] | SEAL |
| 28 | 1543352C1 | [1] | RING back up, NSS, no longer included in kit |
| 29 | 238-5235 | [1] | O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro |
| 30 | D38858 | [1] | BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk |
| . . | G110046 | [1] | KIT |
| . . | 1542923C2 | [1] | SEAL KIT,63.5mm Rod x 88.9mm Bore |
