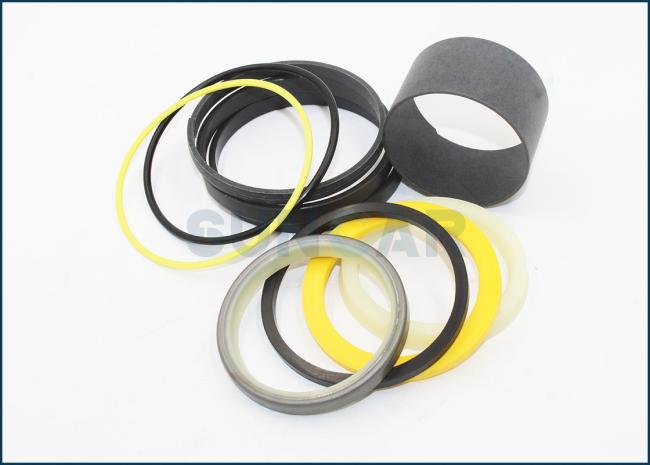

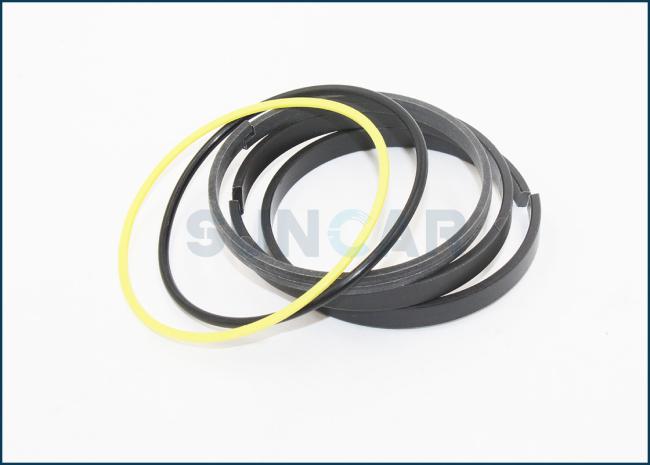

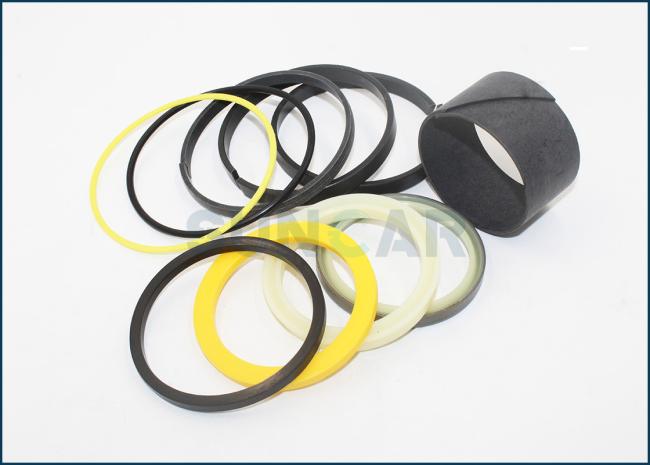

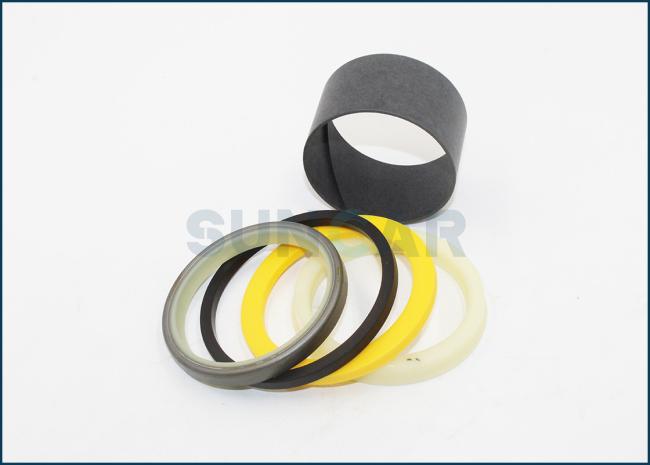

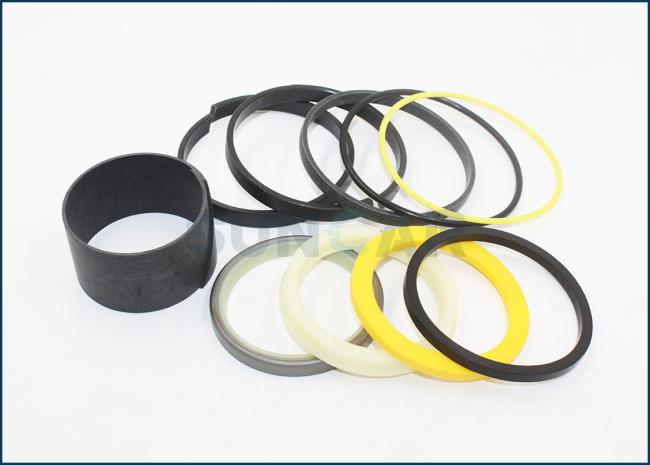

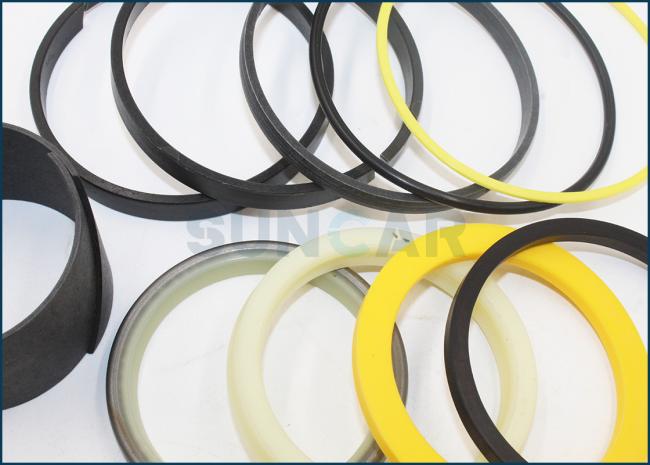

1543294C1 Seal Kit For Case Light Equipment Backhoe Loader Bucket Cylinder 480F
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
1543294C1 Seal Kit For Case Light Equipment Backhoe Loader Bucket Cylinder 480F
| Name | 1543294C1 Seal Kit |
| Model | 480F |
| Part numbers | 1543294C1 |
| Type | Cylinder Seal Kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | PTU |
Part Numbers of Case Cylinder Service Kits:
| LZ00471 | LZ013720 | XKCC-01437 |
| LZ00472 | LZ011310 | XKCD-01397 |
| LZ00473 | LZ012090 | XKCC-01375 |
| LZ00474 | LZ012100 | XKCC-01438 |
| LZ00477 | MMV80030 | PS01V00004R300 |
| LZ00482 | LZ010890 | XKCC-01527 |
| LZ00483 | LZ007550 | XKCC-01540 |
| LZ00484 | LZ007720 | XKCC-01524 |
| LZ00495 | LZ010710 | XKCC-01532 |
| LZ00496 | LZ010930 | XKCC-01535 |
| LZ00499 | MMV80010 | PS01V00003R300 |
| LZ00500 | MMV80020 | PS01V00003R400 |
| LZ00542 | LZ010870 | PS01V00001R400 |
| LZ00620 | LZ011200 | XKCC-01429 |
| LZ00621 | LZ010940 | XKCC-00529 |
| LZ00646 | LZ010810 | PS01V00002R400 |
| LZ006960 | LZ12030 | XKCD-03427 |
| LZ006970 | LZ012020 | XKCD-03431 |
| LZ006980 | LZ012050 | XKCD-02688 |
| LZ007300 | LZ011300 | PY01V00053R300 |
| LZ007310 | LZ008300 | PY01V00050R300 |
| LZ007310 | LZ011070 | PY01V00054R300 |

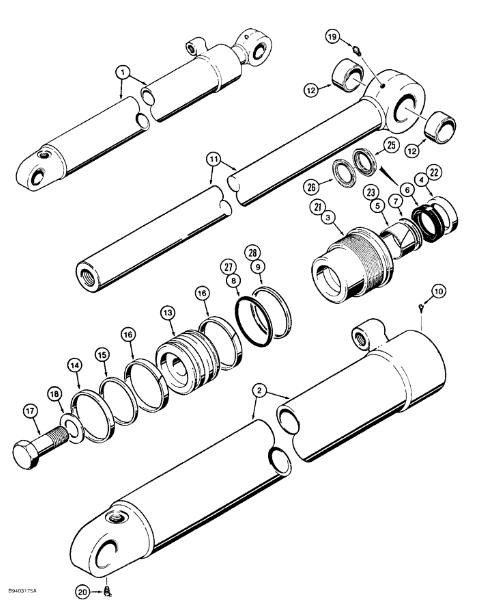

Parts on group (680K):
| Pos. | Part No | Qty | Parts name |
| 1 | G109342 | [1] | CYLINDER ASSY. |
| 2 | G109343 | [1] | TUBE |
| . . | G104268 | [1] | GLAND |
| 3 | NSS | [1] | NOT SOLD SEPARAT |
| 4 | D95146 | [1] | WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk |
| 5 | G102427 | [1] | BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L |
| 6 | G109228 | [1] | SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk |
| 7 | G107998 | [1] | SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk |
| 8 | 238-5238 | [1] | O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro |
| 9 | G32126 | [1] | BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk |
| 10 | 276-2446 | [1] | SELF-TAP SCREW,Hex Hd, #8 x 3/8" |
| 11 | G109752 | [1] | ROD ASSY. |
| 12 | D32865 | [2] | BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L |
| 13 | G103357 | [1] | PISTON |
| 14 | G102286 | [1] | SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk |
| 15 | G100710 | [1] | RING,Square, 5.28mm Thk x 75.31mm ID |
| 16 | G100711 | [2] | SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk |
| 17 | 28-2048 | [1] | BOLT,Hex, 1-1/4" - 12 x 3", Gr 8 |
| 18 | G104989 | [1] | WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk |
| 19 | 219-1 | [1] | LUBE NIPPLE,1/8" - 27 NPTF |
| 20 | 219-36 | [1] | LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF |
| . . | NSS | [1] | NOT SOLD SEPARAT |
| 21 | 1543118C1 | [1] | GLAND |
| 22 | D95146 | [1] | WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk |
| 23 | G102427 | [1] | BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L |
| 24 | 1542879C1 | [1] | SEAL KIT,63.5mm Rod |
| 25 | 1542931C1 | [1] | SEAL |
| 26 | 1543930C1 | [1] | SPINDLE |
| 27 | 238-5238 | [2] | O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro |
| 28 | G32126 | [1] | BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk |
| . . | G109504 | [1] | KIT |
| . . | 1543294C1 | [1] | SEAL KIT |
