566-63-11100 5666311100 Service Kit For Komatsu Dump Truck Steering Cylinder HD320-2 HD325-2 HD460-1

Price Negotiable
Price: Negotiable
MOQ: Accept trial order
Delivery Time: 3-5 days after payment received(public holiday excluded)
Brand: SUNCAR
Product Description

566-63-11100 5666311100 Service Kit For Komatsu Dump Truck Steering Cylinder HD320-2 HD325-2 HD460-1

Part name 566-63-11100 5666311100 Service Kit
Brand SUNCAR
Fits brand KOMATSU
Part number 566-63-11100 5666311100
Style Cylinder seal kit
Fits models  HD320-2 HD325-2 HD460-1
Consist of Back-up ring;wear ring;dust seal;piston ring;O-ring
Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Packaging Nuetral packaging or OEM packaging
Compatible equipment KOMATSU construction equipment;
Place of original China
Transport mode By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)
Terms of payment Western Union, L/C, T/T, Money Gram, D/A, D/P
Feature Durability,hard-wearing,higher-toughness
Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ



Part Numbers of Cylinder Service Kits:

707-99-76130 707-99-38810 707-98-05600
707-99-76131 707-99-66670 707-98-24530
707-99-69790 707-98-25340 707-98-34500
707-99-76300 707-98-24400 707-98-34500
707-99-68600 707-98-40130 234-63-18700
707-99-78640 707-98-25690 234-63-18701
707-99-77380 707-98-23270 234-63-18800
707-99-68650 721-98-01460 234-63-18801
707-99-78680 721-98-01230 234-63-28100
707-99-77390 721-98-04460 232-63-86100
707-99-68550 707-02-08120 234-63-13001
707-99-69660 707-98-11180 234-63-43001
707-99-78690 707-98-22250 234-63-23001
707-99-56200 707-98-25030 234-63-23002
707-99-56220 707-98-25031 234-63-32300
707-99-77330 707-98-25420 234-63-32200
707-99-69690 707-98-24040 234-63-66100
707-99-78730 707-98-15400 234-72-05130
707-99-76230 707-98-25230 23C-63-13101
707-99-69540 721-98-04660 23C-63-43101
707-99-76240 707-99-05620 23C-63-23101
707-99-69670 707-99-26200 23C-63-28101
707-99-78700 707-99-26210 234-63-25001
707-99-72390 707-99-24320 23C-63-32100
707-99-89220 707-99-35620 707-99-A9020
707-99-77050 707-99-26220 707-99-A9040
707-99-66240 707-99-25280 707-99-A9030

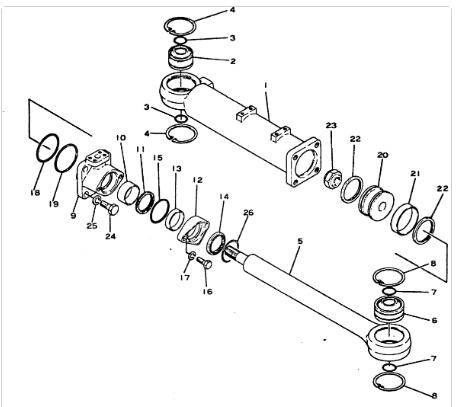

Parts on group :

Pos. Part No Qty Parts name
  566-63-11300 [1] CYLINDER ASSY,L.H.
  566-63-11100 [1] CYLINDER ASSY,L.H.
  566-63-11001 [1] CYLINDER ASSY,L.H.
  566-63-11400 [1] CYLINDER ASSY,R.H.
  566-63-11200 [1] CYLINDER ASSY,R.H.
  566-63-12001 [1] CYLINDER ASSY,R.H.
1. 566-63-11232 [1] CYLINDER,L.H.
1. 566-63-11231 [1] CYLINDER,L.H.
1. 566-63-11310 [1] CYLINDER,R.H.
1. 566-63-11131 [1] CYLINDER,R.H.
2. 07137-04006 [1] BUSHING
3. 07000-23040 [2] O-RING
4. 04065-09030 [2] RING
5. 566-63-11141 [1] ROD
5. 566-63-11140 [1] ROD
9. 566-63-11150 [1] HEAD
10. 07177-06030 [1] BUSHING
11. 707-51-60110 [1] PACKING
11. 111-63-22233 [1] PACKING
11. 111-63-22231 [1] U-PACKING
12. 566-63-11330 [1] GLAND
12. 281-63-13190 [1] GLAND
13. 07177-06015 [1] BUSHING
14. 141-63-93270 [1] SEAL
14. 07016-00608 [1] SEAL
15. 07000-23075 [1] O-RING
16. 01010-51450 [2] BOLT
16. 01010-31440 [2] BOLT
17. 01602-21442 [2] WASHER
17. 01602-01442 [2] WASHER
18. 07000-22095 [1] O-RING
19. 07146-02096 [1] RING
20. 566-63-11170 [1] PISTON
20. 281-63-13220 [1] PISTON
21. 07155-01025 [1] RING
22. 281-63-11230 [1] RING
23. 07165-13033 [1] NUT
23. 113-63-32480 [1] NUT
23. 07165-03033 [1] NUT
24. 01010-51845 [4] BOLT
24. 01010-31845 [4] BOLT
25. 01602-21854 [4] WASHER
25. 01602-01854 [4] WASHER
26. 07179-00082 [1] RING,SNAP
