569-63-22101 5696322101 Hoist Cylinder Seal Kit For Komatsu Dump Truck HD460-1
Price:
Negotiable
MOQ:
Accept trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
569-63-22101 5696322101 Hoist Cylinder Seal Kit For Komatsu Dump Truck HD460-1
| Name | 569-63-22101 5696322101 Hoist Cylinder Seal Kit |
| OEM | 569-63-22101 5696322101 |
| Type | Hoist Cylinder seal kit |
| Pressure | 0~60MPa |
| Temperature | -45℃ +200℃ |
| Speed | 15m/s |
| Medium | Hydraulic oil, fire retardant liquid, water and others |
| Features | Pressure & Oil Resistant |
| Material | IDI |
Part Numbers of Cylinder Service Kits:
| 707-99-59630 | 707-98-13610 | 707-98-28670 |
| 707-99-59371 | 707-98-32520 | 707-98-28910 |
| 707-99-59550 | 707-98-24730 | 707-98-42710 |
| 707-99-58410 | 707-99-67481 | 707-98-36730 |
| 707-99-72080 | 707-99-69460 | 707-98-35320 |
| 707-99-59150 | 707-99-67470 | 707-98-26980 |
| 721-98-00510 | 878000416 | 707-98-41380 |
| 721-98-00520 | 878000418 | 707-98-36740 |
| 721-98-00610 | 878000415 | 707-98-35340 |
| 721-98-01080 | 878000417 | 707-98-30720 |
| 721-98-02260 | 878000017 | 707-98-42720 |
| 707-99-67040 | 707-98-25360 | 707-98-51140 |
| YM172141-99380 | 707-98-25780 | 707-98-24800 |
| YM172142-99340 | 707-98-34750 | 707-98-41350 |
| YM172142-99420 | 707-98-14770 | 707-99-54160 |
| YM172975-72360 | 707-98-57330 | 721-98-03310 |
| YM172168-72201 | 721-98-01280 | 21D-61-11190 |
| YM172142-72571 | 707-98-15780 | 707-99-02010 |
| YM172422-72950 | 878000659 | 707-98-03040 |
| YM172422-72700 | 878000660 | 707-98-03030 |
| 707-98-23180 | 878000539 | 21R-63-02020 |
| 707-98-23970 | 878000540 | 21R-63-02050 |

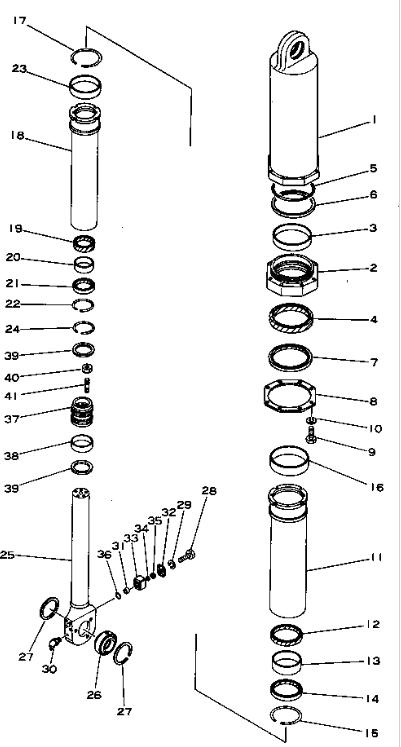

Parts on group :
| Pos. | Part No | Qty | Parts name |
| 569-63-22101 | [1] | CYLINDER ASSY | |
| 1. | 569-63-22140 | [1] | CYLINDER |
| 2. | 569-63-22131 | [1] | HEAD |
| 3. | 568-63-22390 | [1] | BUSHING |
| 4. | 568-63-22280 | [1] | PACKING |
| 5. | 07000-15210 | [1] | O-RING |
| 6. | 07001-05210 | [1] | RING |
| 7. | 568-63-22670 | [1] | SEAL |
| 8. | 569-63-22160 | [1] | PLATE |
| 9. | 01010-52090 | [8] | BOLT |
| 10. | 01602-22060 | [8] | WASHER |
| 11. | 569-63-22241 | [1] | CYLINDER |
| 12. | 569-63-22280 | [1] | PACKING |
| 13. | 569-63-22290 | [1] | BUSHING |
| 14. | 569-63-22670 | [1] | SEAL |
| 15. | 569-63-22270 | [1] | RING |
| 16. | 568-63-22580 | [1] | RING |
| 17. | 569-63-22460 | [1] | RING |
| 18. | 569-63-22341 | [1] | CYLINDER |
| 19. | 569-63-22380 | [1] | PACKING |
| 20. | 07177-01035 | [1] | BUSHING |
| 21. | 07016-01008 | [1] | SEAL |
| 22. | 07179-00123 | [1] | RING |
| 23. | 569-63-22580 | [1] | RING |
| 24. | 569-63-22560 | [1] | RING |
| 25. | 569-63-22121 | [1] | ROD |
| 26. | 568-52-11160 | [2] | BUSHING |
| 27. | 04071-00130 | [3] | RING |
| 28. | 01010-51065 | [4] | BOLT |
| 29. | 01602-21030 | [4] | WASHER |
| 30. | 07020-00675 | [1] | FITTING |
| 31. | 569-63-22630 | [1] | VALVE |
| 32. | 569-63-22640 | [1] | COVER |
| 33. | 569-63-22650 | [1] | BODY |
| 34. | 07000-13032 | [1] | O-RING |
| 35. | 07001-03032 | [1] | RING |
| 36. | 07000-13045 | [1] | O-RING |
| 37. | 569-63-22360 | [1] | PISTON |
| 38. | 569-63-22680 | [1] | RING |
| 39. | 569-63-22470 | [2] | RING |
| 40. | 07165-11618 | [5] | NUT |
| 41. | 01124-81645 | [5] | STUD |
