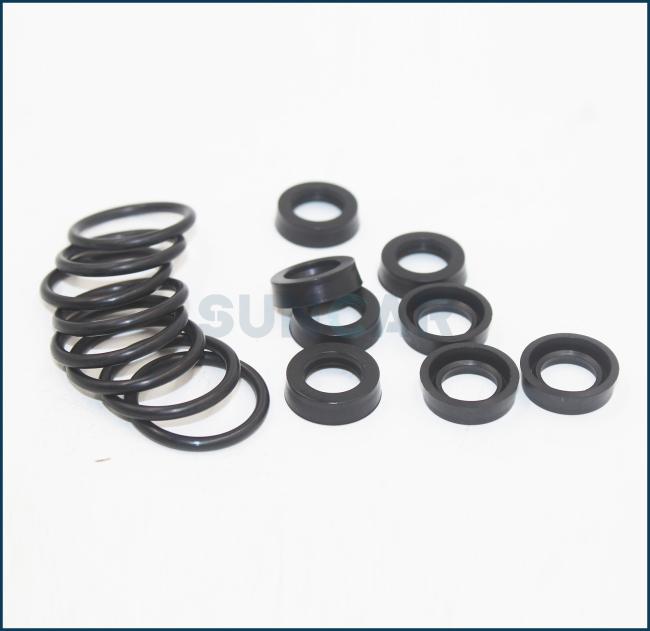

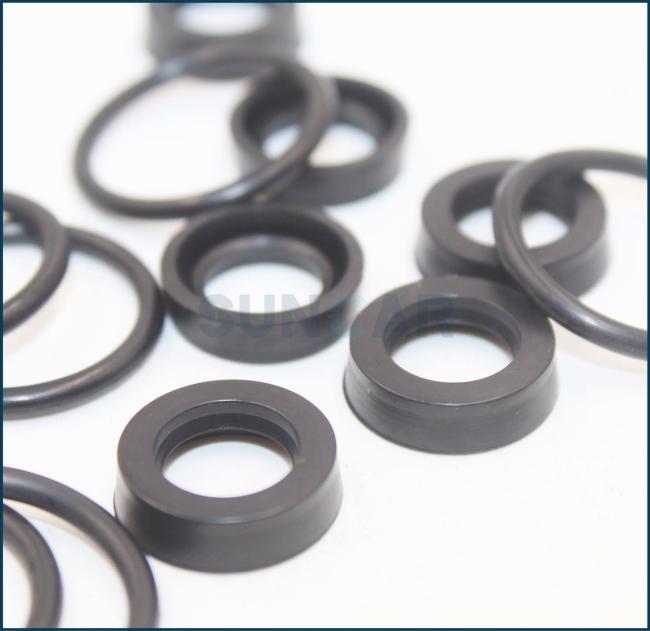

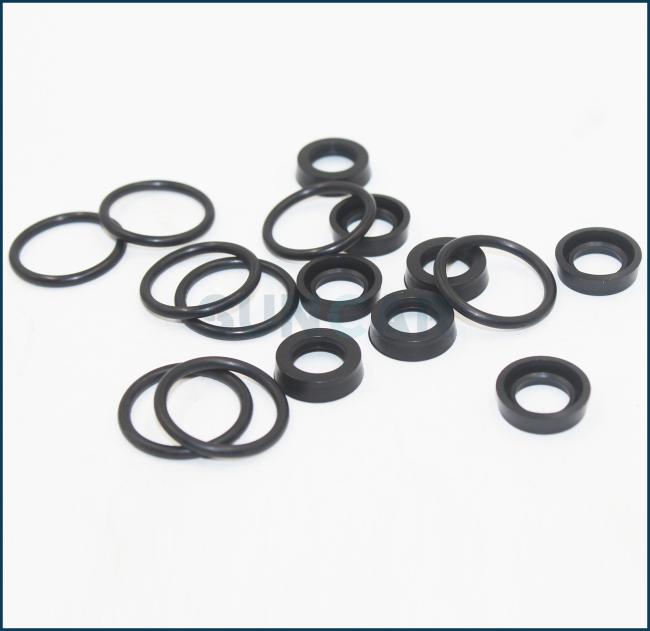

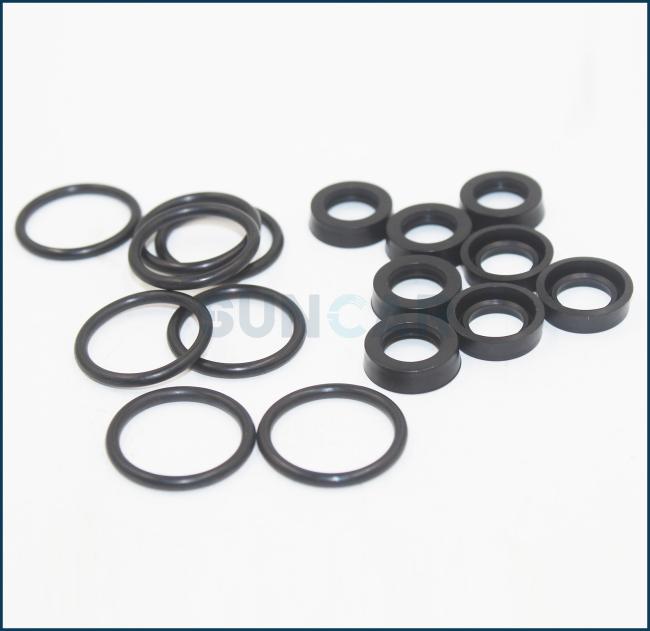

XKAY-01140 XKAY01140 Seal Kit Remote Control Lever For Hyundai 9-SERIES CRAWLER EXCAVATOR R290LC9
Price:
Negotiable
MOQ:
Trial order accepted
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
XKAY-01140 XKAY01140 Seal Kit Remote Control Lever For Hyundai 9-SERIES CRAWLER EXCAVATOR R290LC9
| Iteam name | XKAY-01140 XKAY01140 Seal Kit Remote Control Lever For Hyundai |
| Brand | SUNCAR |
| Fits brand | HYUNDAI |
| Part number | XKAY-01140 XKAY01140 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Feature |
Higher-toughness/Wear resistance/High&low temperature resistence |
| Function | Prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power. |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Supply ability | 550 sets per week |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| AppliC-A-Ted equipment | CRAWLER EXCAVATOR HYUNDAI |
| Original place | Guangdong province,China |
| Loading port | Huangpu port,China |
| Avaliability | In stock |
|
CertifiC-A-Tion |
ISO9001 |
| Terms of payment |
Western Union,T/T, Paypal,Bank transfer,Alipay |
| Delivery details | 3-7 days after payment received(Public Holiday Excluded) |
| MOQ | Accept trial order |
| Type | Oil seal |
|
Standard or nonstandard |
Standard |
| compatible models | Hyundai 9-SERIES CRAWLER EXCAVATOR R290LC9 |
Relative Parts:
| 31Y1-21100 | 31Y2-05070 | 31Y1-04192 |
| 31Y1-19080 | 31Y2-04281 | 31Y1-16010 |
| 31Y1-19090 | 31Y2-06520 | 31Y1-04362 |
| 31Y1-33420 | XKCC-00551 | 31Y1-04461 |
| 31Y1-33110 | 31Y2-12620 | 31Y1-29100 |
| 31Y1-33570 | 31Y2-12450 | 31Y2-06251 |
| 31Y1-08541 | XKCC-00631 | 31Y2-07590 |
| 31Y1-08831 | 31Y2-02310 | 31Y2-07430 |
| 31Y1-08691 | 31Y2-01990 | 31Y2-10430 |
| 31Y1-18411 | 31Y2-02180 | XKCC-00748 |
| 31Y1-35450 | 31Y2-06260 | XKCC-00170 |
| 31Y1-33571 | 31Y1-34340 | 31Y2-10700 |
| 31Y1-08692 | 31Y1-30291 | 31Y2-10880 |
| 31Y1-35451 | 31Y2-05311 | XKCD-03080 |
| 31Y1-03561 | 31Y1-34011 | 31Y118430 |
| 31Y1-03562 | 31Y1-35841 | 31Y1-24791 |

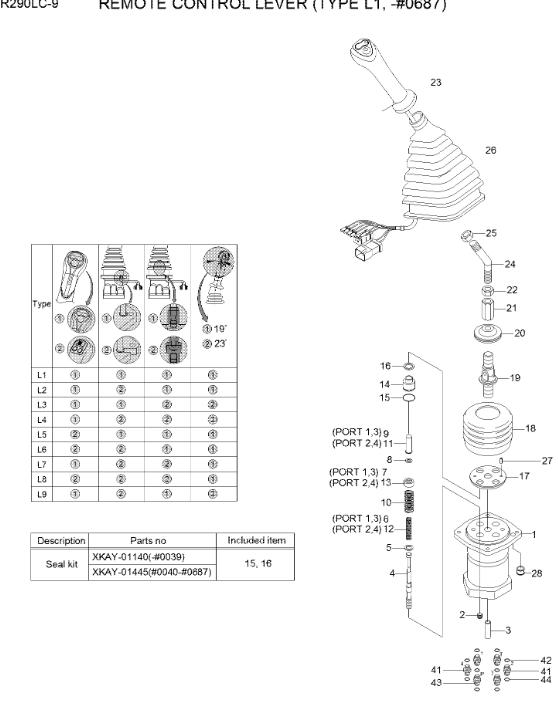

Parts on group:
| Pos. | Part No | Qty | Parts name |
| *. | 31Q8-20010 | [1] | RCV SUB ASSY-LH |
| *. | 31Q8-20011 | [1] | RCV SUB ASSY-LH |
| *. | 31Q8-20020 | [1] | RCV SUB ASSY-RH |
| *. | 31Q8-20021 | [1] | RCV SUB ASSY-RH |
| *-1. | 31Q8-21010 | [1] | RCV LEVER(LH) |
| *-1. | 31Q8-21011 | [1] | RCV LEVER(LH) |
| *-1. | 31Q8-21020 | [1] | RCV LEVER(RH) |
| *-1. | 31Q8-21021 | [1] | RCV LEVER(RH) |
| N1. | XKAY-01061 | [1] | CASE |
| N1. | XKAY-01417 | [1] | CASE |
| N2. | XKAY-00065 | [4] | PLUG |
| N3. | XKAY-00768 | [1] | BUSHING |
| *-2. | XKAY-01132 | [2] | SPOOL KIT(1,3) |
| *-2. | XKAY-01439 | [2] | SPOOL KIT(1,3) |
| *-2. | XKAY-01133 | [2] | SPOOL KIT(2,4) |
| *-2. | XKAY-01440 | [2] | SPOOL KIT(2,4) |
| N4. | XKAY-00771 | [1] | SPOOL |
| N5. | XKAY-00772 | [1] | SHIM |
| N6. | XKAY-01077 | [1] | SPRING(1,3) |
| N6. | XKAY-01420 | [1] | SPRING(1,3) |
| N12. | XKAY-00773 | [1] | SPRING(2,4) |
| N12. | XKAY-01443 | [1] | SPRING(2,4) |
| N7. | XKAY-01078 | [1] | SEAT-SPRING(1,3) |
| N7. | XKAY-00436 | [1] | SEAT-SPRING(1,3) |
| N13. | XKAY-00782 | [1] | SEAT-SPRING(2,4) |
| N13. | XKAY-01444 | [1] | SEAT-SPRING(2,4) |
| N8. | XKAY-00058 | [1] | STOPPER |
| 10 | XKAY-01134 | [1] | SPRING |
| 10 | XKAY-01421 | [1] | SPRING |
| *-3. | XKAY-01135 | [2] | PLUG KIT(1,3) |
| *-3. | XKAY-01441 | [2] | PLUG KIT(1,3) |
| *-3. | XKAY-01136 | [2] | PLUG KIT(2,4) |
| *-3. | XKAY-01442 | [2] | PLUG KIT(2,4) |
| N9. | XKAY-00052 | [1] | ROD-PUSH(1,3) |
| N11. | XKAY-01137 | [1] | ROD-PUSH(2,4) |
| N14. | XKAY-00784 | [1] | PLUG |
| NK15. | XKAY-00054 | [1] | O-RING |
| NK16. | XKAY-00611 | [1] | SEAL-ROD |
| NK16. | XKAY-01424 | [1] | SEAL-ROD |
| 17 | XKAY-00075 | [1] | PLATE |
| 17 | XKAY-01425 | [1] | PLATE |
| 18 | XKAY-00786 | [1] | BOOT |
| 19 | XKAY-00049 | [1] | JOINT ASSY |
| 20 | XKAY-01066 | [1] | PLATE-SWASH |
| 21 | XKAY-00047 | [1] | NUT-HEX |
| *-4. | XKAY-01138 | [1] | HANDLE ASSY(LH) |
| *-4. | XKAY-01426 | [1] | HANDLE KIT LH |
| *-4. | XKAY-01139 | [1] | HANDLE ASSY(RH) |
| *-4. | XKAY-01427 | [1] | HANDLE KIT RH |
| N22. | XKAY-00046 | [1] | NUT-LOCK |
| N23. | XKAY-01080 | [1] | HANDLE ASSY-LH |
| N23. | XKAY-01428 | [1] | HANDLE ASSY-LH |
| N23. | XKAY-01081 | [1] | HANDLE ASSY-RH |
| N23. | XKAY-01429 | [1] | HANDLE ASSY-RH |
| N24. | XKAY-01082 | [1] | BAR-HANDLE |
| N24. | XKAY-01430 | [1] | BAR-HANDLE |
| N25. | XKAY-00811 | [1] | NUT |
| N26. | XKAY-01083 | [1] | BOOT |
| 27 | XKAY-00662 | [2] | PIN-SPRING |
| 28 | XKAY-00074 | [1] | BUSHING |
| 41 | X500-110002 | [5] | CONNECTOR-ORFS |
| 42 | S631-014004 | [6] | O-RING |
| 43 | 31N6-22090 | [1] | FILTER-LAST GUARD |
| 44 | S621-012001 | [6] | O-RING |
| K. | XKAY-01140 | [1] | SEAL KIT |
| K. | XKAY-01445 | [1] | SEAL KIT |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
