9071735 Pusher Assy Pilot Valve Fits Hitachi EX100 EX100M EX100W EX100WD EX1100 EX120 EX150 EX160WD EX200 EX200K EX220
Price:
Negotiable
MOQ:
100 sets
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

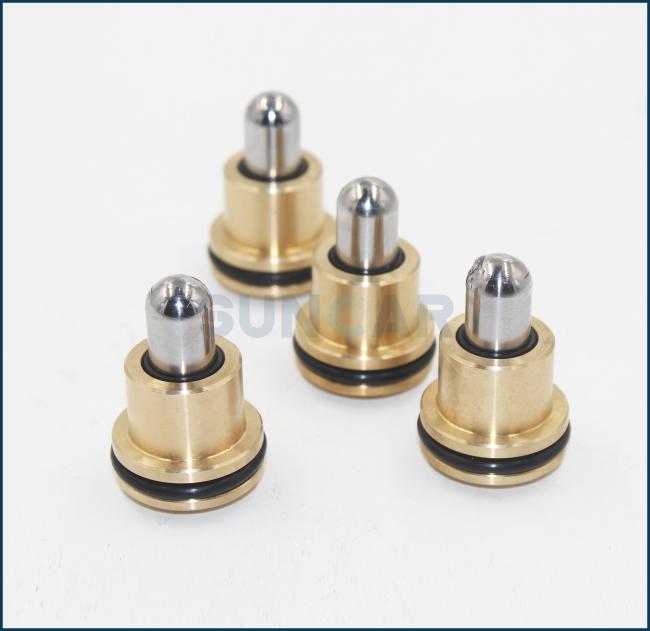

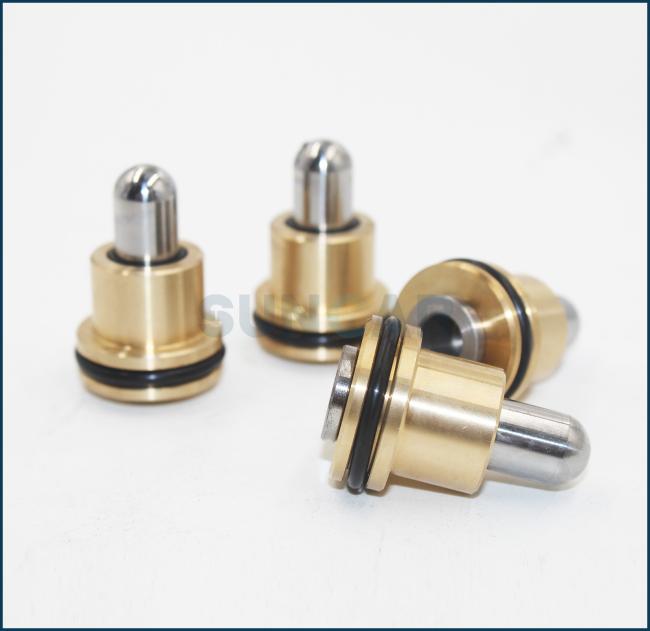

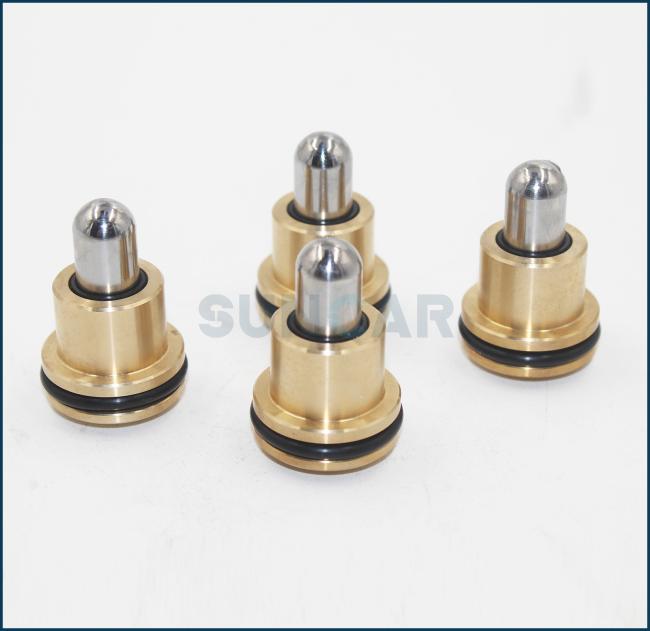

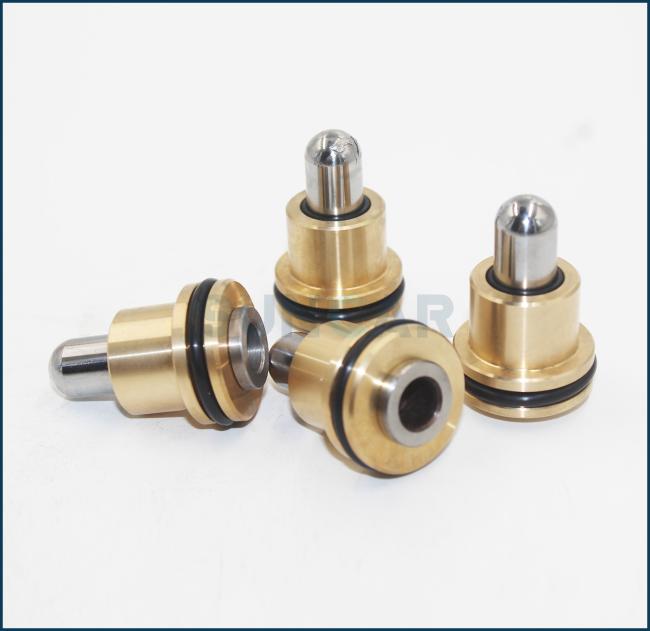

9071735 Pusher Assy Pilot Valve Fits Hitachi
Description:A sleeve valve takes the form of one or more machined sleeves. It fits between the piston and the cylinder wall in the cylinder of an internal combustion engine, where it rotates and/or slides. Ports (holes) in the side of the sleeves come into alignment with the cylinder's inlet and exhaust ports at the appropriate stages in the engine's cycle.
| Product name | 9071735 Pusher Assy Pilot Valve Fits Hitachi |
| Brand name | SUNCAR |
| Warranty | 6 months from the day of shippment |
| OEM number | 9104360 |
| Loading port | Huangpu port,China |
| Availability | Have enough stock for selling |
| Terms of payments | Western Union, T/T, Bank Transfer, Paypal |
| Original place | Guangdong provice,China |
| AppliC-A-Tion | excavator |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Condition | 100% New |
| Compatible equipment | HITACHI |
| Quality | High guarantee |
Compatible equipment models:
| HITACHI |
EX100 EX100M EX100W EX100WD EX1100 EX120 EX150 EX160WD EX200 EX200K EX220 EX270 EX300 EX400 EX50UR EX60 EX60G EX60UR EX700 EX90 RX2000 |

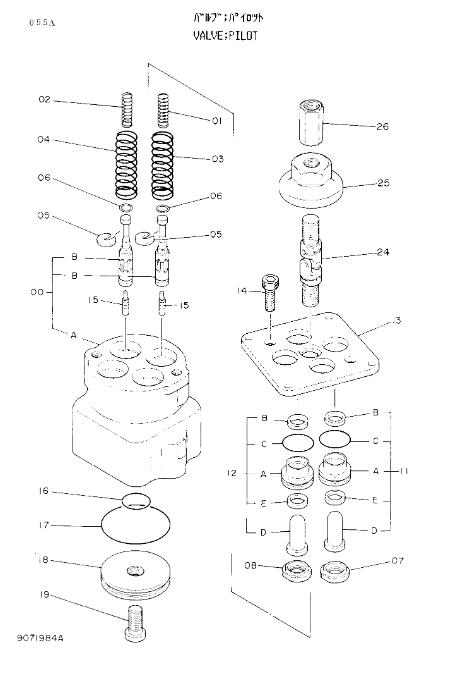

Parts on group PILOT VALVE:
| Pos. | Part No | Qty | Parts name |
| 9071984 | [1] | VALVE;PILOT | |
| 0 | 7017963 | [1] | CASING;ASSY |
| 00A. | +++++++ | [1] | CASING |
| 00B. | +++++++ | [4] | SPOOL |
| 1 | 4201915 | [2] | SPRING;COMPRES. |
| 2 | 4166686 | [2] | SPRING;COMPRES |
| 3 | 4195421 | [2] | SPRING;COMPRES. |
| 4 | 4186544 | [2] | SPRING;COMPRES. |
| 5 | 4177777 | [4] | SPACER |
| 6 | 4173208 | [20] | SHIM |
| 7 | 4179257 | [2] | GUIDE;SPRING(1,3 Port) |
| 8 | 4177896 | [2] | GUIDE;SPRING(2,4 Port) |
| 11 | 9071735 | [2] | PUSHER ASSY (1,3 Port) |
| 11 | 9086456 | [2] | PUSHER ASSY (1,3 Port) |
| 11 | 9089809 | [2] | PUSHER ASSY (1,3 Port) |
| 11A. | 3037559 | [1] | BUSHING |
| 11A. | 3047989 | [1] | BUSHING |
| 11B. | 4191490 | [1] | SEAL;DUST |
| 11C. | A810025 | [1] | O-RING |
| 11D. | 3037551 | [1] | PUSHER |
| 11E. | 4187924 | [1] | SEAL;OIL |
| 11E. | 4240151 | [1] | SEAL;OIL |
| 12 | 9071736 | [2] | PUSHER ASSY (2,4 Port) |
| 12 | 9086455 | [2] | PUSHER ASSY (2,4 Port) |
| 12 | 9089808 | [2] | PUSHER ASSY (2,4 Port) |
| 12A. | 3037559 | [1] | BUSHING |
| 12A. | 3047989 | [1] | BUSHING |
| 12B. | 4191490 | [1] | SEAL;DUST |
| 12C. | A810025 | [1] | O-RING |
| 12D. | 3037552 | [1] | PUSHER |
| 12E. | 4187924 | [1] | SEAL;OIL |
| 12E. | 4240151 | [1] | SEAL;OIL |
| 13 | 4184930 | [1] | PLATE |
| 14 | 4259780 | [2] | BOLT;SOCKET |
| 14 | 4259780 | [2] | BOLT;SOCKET |
| 14 | M341025 | [2] | BOLT;SOCKET |
| 14 | M341025 | [2] | BOLT;SOCKET |
| 15 | 4184929 | [4] | PISTON |
| 16 | 984338 | [1] | O-RING |
| 17 | A810060 | [1] | O-RING |
| 18 | 4184954 | [1] | PLATE |
| 19 | M341225 | [1] | BOLT;SOCKET |
| 24 | 4183035 | [1] | JOINT;UNIVERSAL |
| 24 | 4285209 | [1] | JOINT;UNIVERSAL |
| 25 | 4184931 | [1] | CAM |
| 26 | 4182067 | [1] | JOINT;SCREW |
