VOE 14589832 VOE14589832 Sealing Kit Bucket Cylinder For Volvo EC140 EC210 EC240 EC290 EW130
Price:
Negotiable
MOQ:
10 Sets
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description

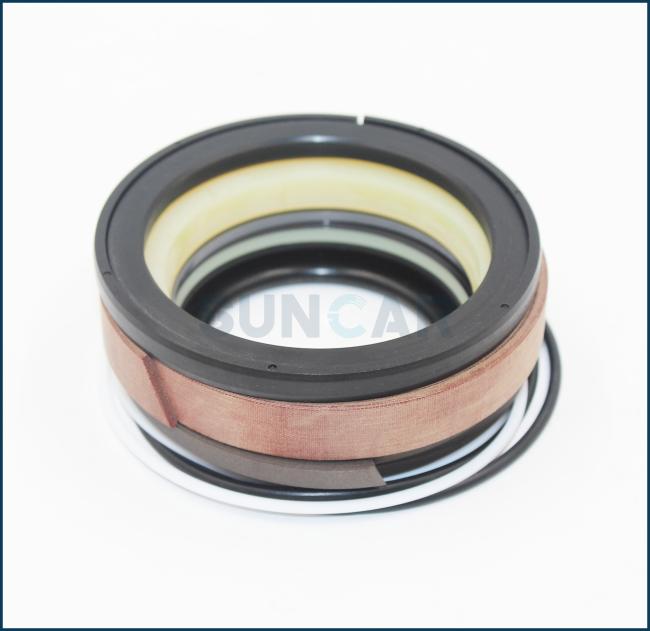

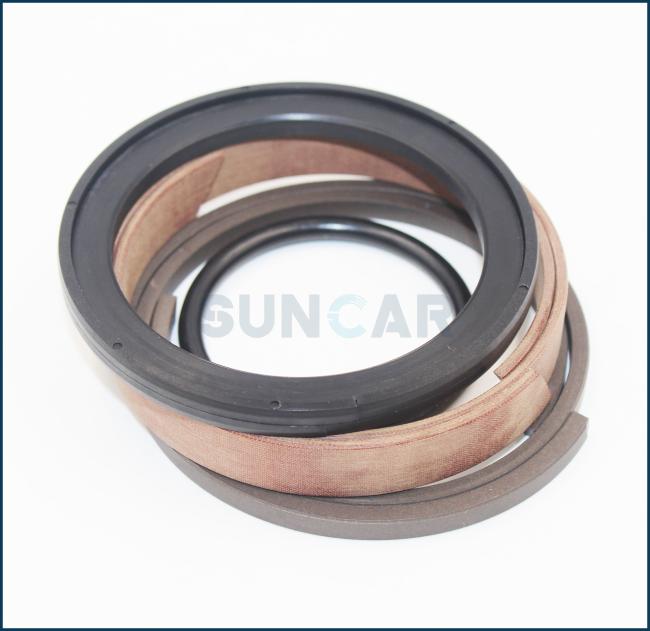

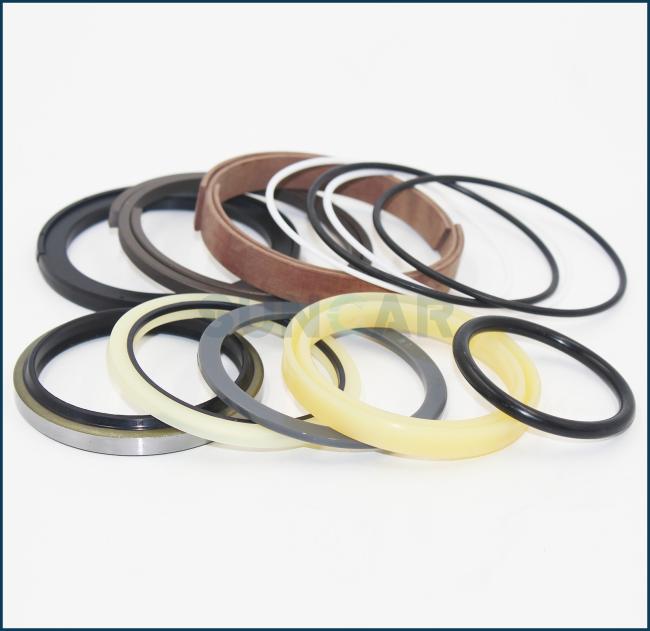

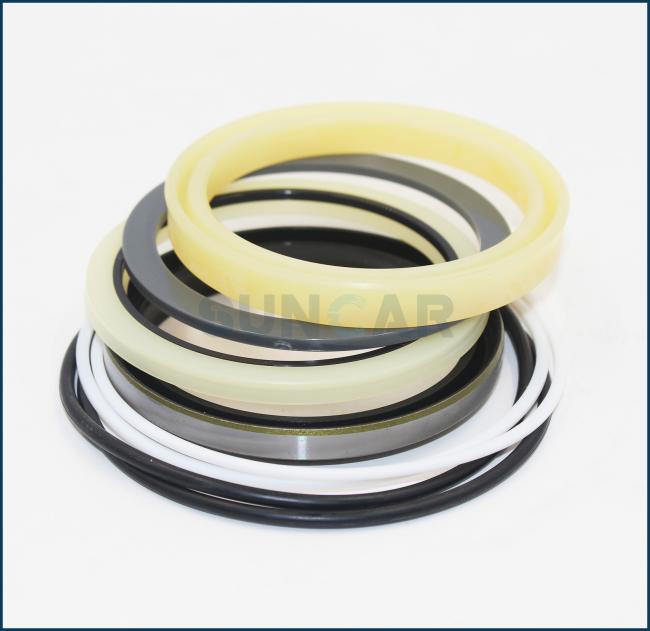

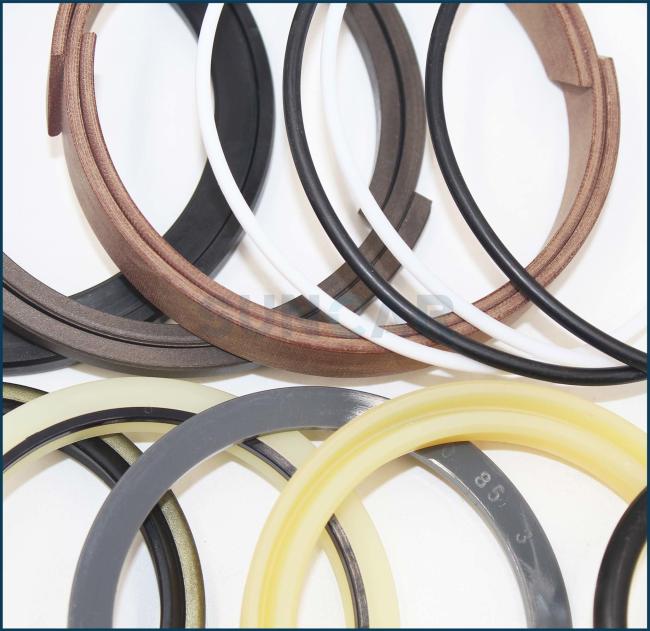

VOE 14589832 VOE14589832 Sealing Kit Bucket Cylinder For Volvo EC140 EC210 EC240 EC290 EW130
Description:
Hydraulic cylinder seals are used on hydraulic cylinders to prevent hydraulic fluid from leaking and help keep dirt and other contaminants from entering the cylinders. Piston seals prevent fluid from leaving the chamber, which can reduce cylinder effectiveness. Dual rod and piston seals prevent fluid leakage on the rod.
| Product name | VOE 14589832 VOE14589832 Sealing Kit |
| Brand | SUNCAR |
| Meterial | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| OEM number |
VOE 14589832 VOE14589832 |
| Feature | Durability,Hard-wearing,Higher-toughness |
| Function | Sealing piston |
| MOQ | Accept trial order |
| Payment terms | L/C, D/A, D/P, T/T, Western Union, |
| Temperature | -45~+100°C(According to material) |
| Loading Port | Huangpu port,China |
| Compatible brand | Excavator volvo |
| Shipping mode | By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| After-sale Service | Online support |
| Con | 100 % new |
| Quality | Stable quality, OEM Standard, Genuine / Aftermarket |
Relative Cylinder Seal Kit Part Numbers:
| VOE11715864 | VOE14589144 | VOE15162235 |
| VOE11715865 | 14514456 | VOE15162237 |
| VOE11990027 | 14516932 | SA8148-10031 |
| VOE11990029 | VOE14516933 | SA8148-10051 |
| VOE11990050 | 14516934 | SA8148-10071 |
| VOE11990050 | 14517001 | SA8148-10131 |
| 11990060 | 14519359 | SA8148-10151 |
| 11990070 | 14519503 | SA8148-16020 |
| 11990106 | 14519504 | SA8148-16030 |
| VOE11990158 | 14519505 | SA8148-16040 |
| 11990175 | 14519624 | SA8148-16130 |
| 11990180 | 14521929 | SA8148-16140 |
| 11990181 | 14522992 | SA8148-16150 |
| 11990243 | 14523116 | VOE14501680 |
| 11990244 | 14523132 | VOE14501682 |
| VOE11990351 | 14530716 | VOE14589336 |
| VOE11990395 | 14530717 | VOE14612137 |

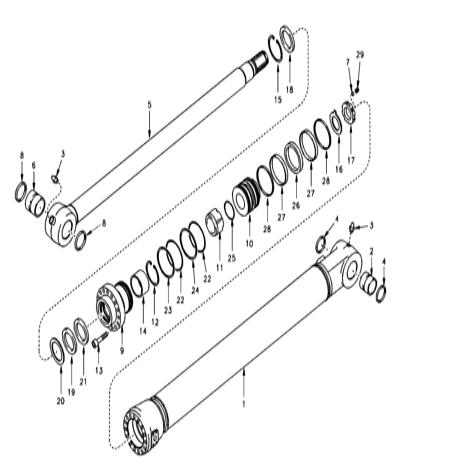

Parts on group:
| Pos. | Part No | Qty | Parts name |
| SA1146-01130 | [1] | Bucket cylinder | |
| SA1146-08430 | Bucket cylinder | ||
| 1 | SA1146-01440 | [1] | Pipe |
| 2 | SA9624-11417 | [1] | Bushing |
| 3 | SA9481-11003 | [2] | Nipple |
| 4 | SA9561-07020 | [2] | Seal |
| 5 | SA1146-01471 | [1] | Rod |
| SA1146-08200 | Rod | ||
| 6 | SA1040-95320 | [1] | Bushing |
| 7 | SA1146-06870 | [1] | Pad |
| 8 | SA9561-06530 | [2] | Seal |
| 9 | VOE14522848 | [1] | Head |
| 10 | SA1146-01490 | [1] | Piston |
| 11 | SA1146-01330 | [1] | Cushion |
| 12 | SA9556-07000 | [1] | Retaining ring |
| 13 | SA9016-21612 | [11] | Bolt |
| 14 | SA9612-07040 | [1] | Bearing |
| 15 | SA9557-06000 | [1] | Retaining ring |
| 16 | SA9216-04510 | [1] | Lock washer |
| 17 | SA1146-06910 | [1] | Lock nut |
| 18 | SA9564-20700 | [1] | Seal |
| SA1146-08330 | Seal | ||
| 19 | SA9563-20701 | [1] | Seal |
| SA1146-08070 | Seal | ||
| 20 | SA9567-20701 | [1] | Back-up ring |
| 21 | SA1146-07940 | [1] | Seal |
| SA1146-08170 | Seal | ||
| 22 | VOE990595 | [2] | O-ring |
| 23 | SA9566-20950 | [1] | Back-up ring |
| 24 | SA9566-40950 | [1] | Back-up ring |
| 25 | VOE990631 | [1] | O-ring |
| 26 | SA9562-11000 | [1] | Piston seal |
| 27 | SA9565-11000 | [2] | Wear ring |
| 28 | SA9568-01000 | [2] | Seal |
| 29 | SA9023-10802 | [1] | Set screw |
| 100 | VOE14589832 | [1] | Sealing kit |
| VOE14589699 | Sealing kit |
