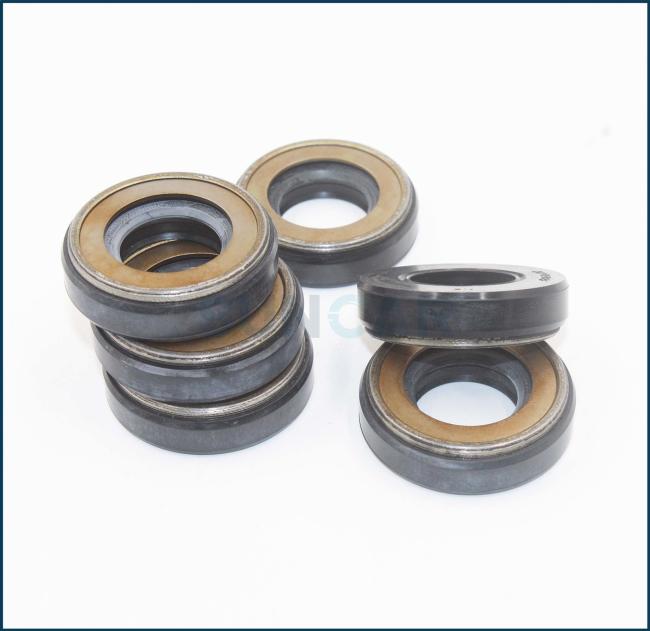

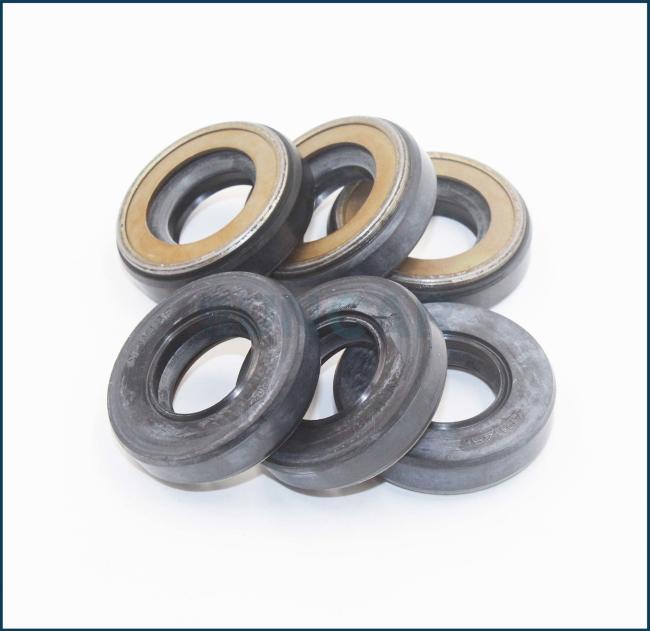

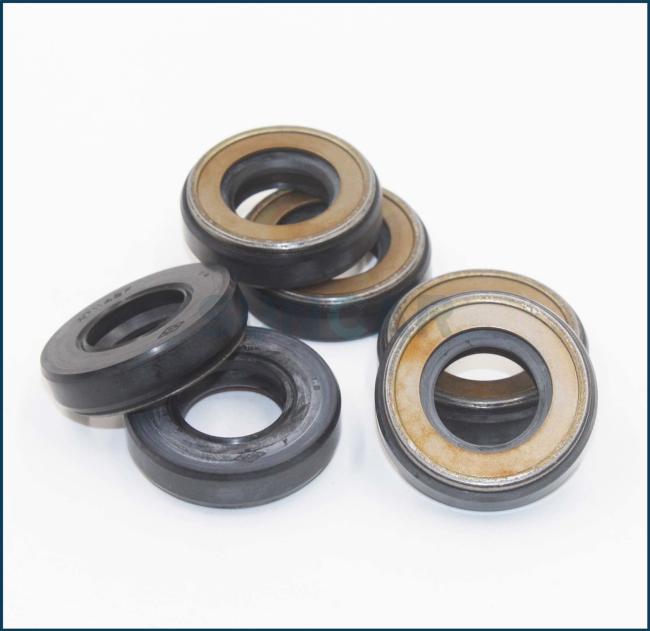

TZTCN-32-52-11 TZTCN325211 Seal Oil Fits KOMATSU Excavator CS210 PC100 PC100L PC120 PC130 PC80
TZTCN-32-52-11 TZTCN325211 Seal Oil Fits KOMATSU Excavator CS210 PC100 PC100L PC120 PC130 PC80
| Product name | TZTCN-32-52-11 TZTCN325211 Seal Oil |
| Brand name | SUNCAR |
| AppliC-A-Tion | Lip seals are used in low to medium speed rotating appliC-A-Tions such as transmissions and pumps. |
| Part number | TZTCN-32-52-11 TZTCN325211 |
| Compatible model |
CS210 PC100 PC100L PC120 PC130 PC80 |
| Material | NBR A727 |
| MOQ | Accept trail order. |
| Supply alility | 2200 sets per months |
| Characteristic |
|
| Condition | 100 % new |
| Payment | Paypal, T/T, Western union, Bank transfer |
| Paking details | PP bag inside,carton box outside. |
| Original place | Guangdong province,China |
| Transport mode | Air, Sea, Express ( FedEx , UPS,DHL,TNT etc.) |
| Compatible equipment |
Wheel loaders ;Pipelayer;crawler loader;Articulated unloading truck; Crawler Bulldozer |
| CertifiC-A-Tion | ISO9001 |
| AppliC-A-Tion | Cylinder,constuction machinery works,retail |
| Primary seal material | Rubber |
| Availability | In stock. |
| Style | Oil seal |
| Construction Type | SBI |
| Material Nitrile Rubber | (NBR) - 75 Duro |
Material Details:
| Material | Oil resistance | Abrasion resistance | Low temperature | high temperature | Acid resistance | Weather resistant |
| NBR | Very good | Very good | -40 | 125 | good | Moderate |
| ACM | Very good | Very good | -25 | 150 | Moderate | Very good |
| FKM | Very good | Very good | -20 | 250 | good | Very good |
| EPDM | Moderate | good | -40 | 125 | good | Very good |
| PTFE | Very good | Very good | -65 | 260 | Very good | Very good |
| SBR | Moderate | Very good | -45 | 100 | Moderate | Moderate |
| Fiber | Very good | Very good | -50 | 160 | Very good | Very good |
| HNBR | Very good | Very good | -25 | 140 | good | good |
| VMQ | good | good | -60 | 225 | Moderate | Very good |
Oil Seal Features:
1). Excellent durability and flexibility of use.
2). The specially designed rope enhances durability and length stability.
3). Excellent heat resistance, oil resistance and abrasion resistance.
4). The display is stable during high-speed rotation.
5). Due to the excellent special frame, heat resistance, oil, fatigue, aging and friction.
6). High power, fast speed, long service life, low distortion and less space.

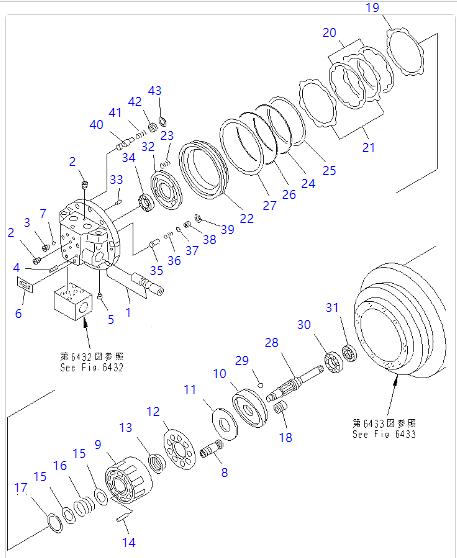

Parts on group:
| Pos. | Part No | Qty | Parts name |
| 202-60-66101 | [2] | TRAVEL MOTOR ASSY | |
| 1. | TZ203B210101-A | [1] | FLANGE KIT,REAR |
| 2 | TZMB700-070 | [5] | PLUG |
| 3 | TZGM1-4 | [2] | PLUG |
| 4 | TZGM1-8 | [2] | PLUG |
| 5 | TZMB700-050 | [4] | PLUG |
| 6 | TZ850A0006-00 | [1] | PLATE, NAME |
| 7. | 04260-00793 | [2] | BALL |
| 8. | TZ210A7105-00 | [1] | PISTON KIT,(9 PIECES) |
| 9. | TZ200B2004-00 | [1] | BLOCK,CYLINDER |
| 10. | TZ200B200301-H | [1] | PLATE,SWASH |
| 11. | TZ200B2032-00 | [1] | PLATE,THRUST |
| 12. | TZ200B2007-00 | [1] | PLATE,RETAINER |
| 13. | TZ200B2008-00 | [1] | BOWL,THRUST |
| 14. | TZJB150635-328 | [3] | PIN |
| 15. | TZ150A2010-00 | [2] | WASHER |
| 16. | TZ430F2028-00 | [1] | SPRING |
| 17. | TZIRTW-55 | [1] | RING,SNAP |
| 18. | TZ200B2170-01 | [1] | PISTON |
| 19. | TZ200B2074-00 | [1] | PLATE |
| 20. | TZ200A2015-00 | [2] | DISC |
| 21. | TZ100A2016-00 | [2] | PLATE |
| 22. | TZ231F2012-00 | [1] | PISTON |
| 23. | TZ100A2013-00 | [10] | SPRING |
| 24. | 07000-15145 | [1] | O-RING (K1) |
| 25. | TZ231F2023-00 | [1] | RING,BACK-UP (K1) |
| 26. | 07000-15170 | [1] | O-RING (K1) OEM |
| 27. | TZSUN-2BG170 | [1] | RING,BACK-UP (K1) |
| 28. | TZ200B2002-01 | [1] | SHAFT |
| 29. | TZJB1501-26 | [2] | BALL |
| 30. | 06000-06207 | [1] | BEARING |
| 31. | TZTCN-32-52-11 | [1] | SEAL,OIL (K1) |
| 32. | TZ210A2009-00 | [1] | PLATE,TIMING |
| 33. | TZJB1354-5-12 | [2] | PIN |
| 34. | 06000-06204 | [1] | BEARING |
| 35. | TZ430F2019-00 | [1] | VALVE |
| 36. | TZ100A2020-00 | [1] | SPRING |
| 37. | 07000-11009 | [1] | O-RING (K1) |
| 38. | TZ100A2018-00 | [1] | SEAT,VALVE |
| 39. | TZ100A2022-00 | [1] | RING |
| 40. | TZ200B2073-00 | [1] | VALVE |
| 41. | TZ300B2043-01 | [1] | SPRING |
| 42. | TZ300B2039-00 | [1] | STOPPER |
| 43. | TZ300B2042-00 | [1] | RING |
