4203830 Bucket Boom Sealing Kit Suit For HITACHI EX220 EX220-1
Price:
Negotiable
MOQ:
10 Sets
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
4203830 Bucket Boom Sealing Kit Suit For HITACHI EX220 EX220-1
Description:There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
Arm cylinder is the top one, and it's usually be called as top cylinder;The bucket cylinder is the one that connects and controls the bucket.
Boom cylinder is the one (or the two) near the cabin. Main function is prevent oil leakage,sealing oil.
| Product name | 4203830 Bucket Boom Sealing Kit Suit For HITACHI EX220 EX220-1 |
| Brand | SUNCAR |
| Style | Cylinder Seal Kit |
| Supply Ablity | 550 sets per week |
| OEM number | 4203830 |
| MOQ | 10 sets |
| Temperature | According to material |
| Loading port | Huangpu port,China |
| AppliC-A-Tion | Bucket seal kit |
| Quality | High guarantee |
| After-sale services | Online Support |
| Place original | Guangdong provice,China |
| Compatible model | EX220 EX-220 EX220-2 |
| Compatible equipment | Excavator TATA Hitachi |

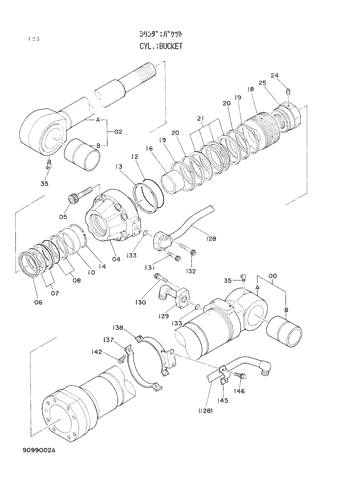

Parts on Bucket Cylinders:
| Pos. | Part No | Qty | Parts name |
| 9099002 | [1] | CYL.;BUCKET | |
| 00-35. | 9073614 | [1] | CYL. (PIPELESS) |
| 0 | 7016601 | [1] | TUBE;CYL.(WITH BUSHING) |
| 00A. | 7018435 | [1] | TUBE;CYL. |
| 00B. | 3031788 | [1] | BUSHING |
| 2 | 7016734 | [1] | ROD;PISTON(WITH BUSHING) |
| 02A. | 7018426 | [1] | ROD;PISTON |
| 02B. | 3031789 | [1] | BUSHING |
| 4 | 1016385 | [1] | HEAD;CYL. |
| 5 | M342280 | [8] | BOLT;SOCKET |
| 6 | 4124849 | [1] | SEAL;DUST |
| 7 | 4168226 | [1] | SEAL |
| 8 | 4173770 | [1] | RING |
| 10 | 4124858 | [1] | BUSHING |
| 10 | 4284533 | [1] | BUSHING |
| 12 | 4129441 | [1] | O-RING |
| 13 | 4129443 | [1] | RING;BACK-UP |
| 14 | 4264983 | [1] | RING;RETAINING |
| 16 | 4171477 | [1] | RING;CUSHION |
| 18 | 3034605 | [1] | PISTON |
| 19 | 4185246 | [2] | RING; |
| 20 | 4185248 | [2] | RING;WEAR |
| 21 | 4185244 | [1] | RING;SEAL |
| 24 | 4201805 | [1] | SCREW;SET |
| 25 | 3038328 | [1] | NUT |
| 35 | J75581 | [2] | FITTING |
| 128 | 8035578 | [1] | PIPE |
| 129 | 8035579 | [1] | PIPE |
| 130 | M341240 | [4] | BOLT;SOCKET |
| 131 | M341245 | [2] | BOLT;SOCKET |
| 132 | M341260 | [2] | BOLT;SOCKET |
| 133 | A811035 | [2] | O-RING |
| 137 | 3043348 | [1] | CLAMP |
| 138 | 8043034 | [1] | CLAMP |
| 142 | J011035 | [2] | BOLT;SEMS |
| 145 | 4194152 | [1] | CLAMP;PIPE |
| 146 | J011025 | [2] | BOLT |
| 200 | 4203830 | [1] | KIT;SEAL |

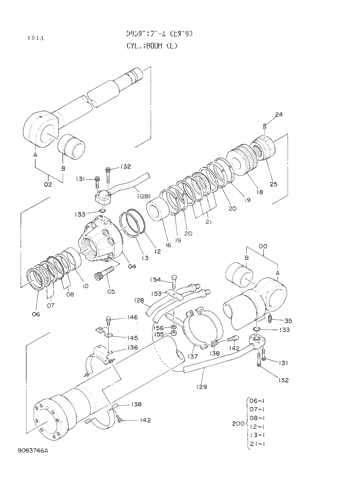

Parts on group BOOM CYLINDER (L):
| Pos. | Part No | Qty | Parts name |
| 9083746 | [1] | CYL.;BOOM (L) | |
| 00-35. | 9073612 | [1] | CYL. (PIPELESS) |
| 0 | 7016599 | [1] | TUBE;CYL.(WITH BUSHING) |
| 00A. | 7018433 | [1] | TUBE;CYL. |
| 00B. | 3031787 | [1] | BUSHING |
| 2 | 7016732 | [1] | ROD;PISTON(WITH BUSHING) |
| 02A. | 7018424 | [1] | ROD;PISTON |
| 02B. | 3031787 | [1] | BUSHING |
| 4 | 2022351 | [1] | HEAD;CYL. |
| 5 | M342280 | [8] | BOLT;SOCKET |
| 6 | 4124849 | [1] | SEAL;DUST |
| 7 | 4168226 | [1] | SEAL |
| 8 | 4173770 | [1] | RING |
| 10 | 4124858 | [1] | BUSHING |
| 12 | 4129441 | [1] | O-RING |
| 13 | 4129443 | [1] | RING;BACK-UP |
| 16 | 4171477 | [1] | RING;CUSHION |
| 18 | 3034605 | [1] | PISTON |
| 19 | 4185246 | [2] | RING; |
| 20 | 4185248 | [2] | RING;WEAR |
| 21 | 4185244 | [1] | RING;SEAL |
| 24 | 4201805 | [1] | SCREW;SET |
| 25 | 3038328 | [1] | NUT |
| 35 | J75481 | [1] | FITTING |
| 128 | 8035573 | [1] | PIPE |
| 129 | 8037956 | [1] | PIPE |
| 131 | M341245 | [4] | BOLT;SOCKET |
| 132 | M341260 | [4] | BOLT;SOCKET |
| 133 | A811035 | [2] | O-RING |
| 136 | 8043034 | [1] | CLAMP |
| 137 | 8043033 | [1] | CLAMP |
| 138 | 3043348 | [2] | CLAMP |
| 142 | J011030 | [4] | BOLT;SEMS |
| 142 | J011035 | [4] | BOLT;SEMS |
| 145 | 4194152 | [1] | CLAMP;PIPE |
| 146 | J011025 | [2] | BOLT |
| 153 | 4229233 | [1] | CLAMP;PIPE |
| 154 | J901260 | [1] | BOLT |
| 155 | J950012 | [1] | NUT |
| 156 | A590912 | [1] | WASHER;SPRING |
| 200 | 4203830 | [1] | KIT;SEAL |
