New Kit Sealing 9103844 HIT-9103844 Fits Hitachi Bucket Cylinder
New Kit Sealing 9103844 HIT-9103844 Fits Hitachi Bucket Cylinder
Description: Cylinder seal kit for HITACHI EX220 EX-220 EX220-2 New Bucket Cylinder (OEM Part Number 9103844).
|
Product name |
New Kit Sealing 9103844 HIT-9103844 Fits Hitachi Bucket Cylinder |
| Brand | SUNCAR |
| Style | Cylinder seal kit |
| Supply ablity | 550 sets per week |
| OEM number | 9103844 HIT-9103844 |
| Temperature | According to material |
| Loading port | Huangpu port,China |
| AppliC-A-Tion | Bucket seal Kit |
| Quality | High guarantee |
| After-sale services | Online support |
| Place original | Guangdong provice,China |
| Compatible model | EX220-2 EX220-3 |
| Model applied | Replacement part bucket seal kits for Hitachi EX220-2 excavator parts |
| Compatible equipment | Excavator TAT Hitachi |
| Material |
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
Boom cylinder,arm cylinder,bucket cylinder are regularly three cylinders for the excavator.
Boom Cylinder seal kit is, as the name suggests, fitted into the boom cylinder.
Arm cylinder is the top one, and it's usually be called as top cylinder;
The bucket cylinder is the one that connects and controls the bucket.
Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work by one cylinder.

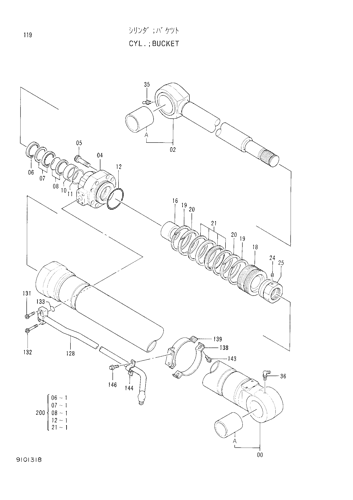

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| 9101318 | [1] | CYL.;BUCKET | |
| 00-36. | 9103462 | [1] | CYL. (PIPELESS) |
| 0 | 7021848 | [1] | TUBE;CYL. AS'Y |
| 0 | 9121234 | [1] | TUBE;CYL. AS'Y |
| 00A. | 3031788 | [1] | BUSHING |
| 2 | 7021846 | [1] | ROD;PISTON AS'Y |
| 02A. | 3031789 | [1] | BUSHING |
| 4 | 1014534 | [1] | HEAD;CYL. |
| 5 | M342280 | [8] | BOLT;SOCKET |
| 6 | 4124848 | [1] | SEAL;DUST |
| 7 | 4253559 | [1] | SEAL |
| 8 | 4253561 | [1] | RING |
| 10 | 4272960 | [1] | BUSHING |
| 11 | 4272974 | [1] | RING;RETAINING |
| 12 | 4253563 | [1] | O-RING |
| 16 | 4253558 | [1] | RING;CUSHION |
| 18 | 3050116 | [1] | PISTON |
| 19 | 4168234 | [2] | RING; |
| 20 | 4253562 | [2] | RING;WEAR |
| 21 | 4124860 | [1] | RING;SEAL |
| 24 | 4201805 | [1] | SCREW;SET |
| 25 | 3050115 | [1] | NUT |
| 35 | J75481 | [1] | FITTING;GREASE |
| 36 | J75581 | [1] | FITTING;GREASE |
| 128 | 8046951 | [1] | PIPE |
| 131 | M341245 | [2] | BOLT;SOCKET |
| 132 | M341260 | [2] | BOLT;SOCKET |
| 133 | A811035 | [1] | O-RING |
| 138 | 3050114 | [1] | CLAMP |
| 139 | 8046957 | [1] | CLAMP |
| 143 | J011035 | [2] | BOLT;SEMS |
| 144 | 4194152 | [1] | CLAMP;PIPE |
| 146 | J011025 | [2] | BOLT;SEMS |
| 200 | 9103844 | [1] | KIT;SEAL |
