2440-9147 2440-9147 Bucket Cylinder Seal Kit For DOOSAN DH220LC-3
2440-9147 2440-9147 Bucket Cylinder Seal Kit For DOOSAN DH220LC-3
Description: Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic
cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
Boom Cylinder seal kit is, as the name suggests, fitted into the boom cylinder.
There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
Arm cylinder is the top one, and it's usually be called as top cylinder;
The bucket cylinder is the one that connects and controls the bucket.
Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger
excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some
particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.
Products Details :
| Product name | 2440-9147 2440-9147 Bucket Cylinder Seal Kit For DOOSAN DH220LC-3 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Part number | 2440-9147 ; 2440-9147 |
| Temp. | -40~120°C(Accprding to the material) |
| Relative sizes | Standard size |
| Place original | Guangzhou,China |
| AppliC-A-Tion |
All types of rotative appliC-A-Tions; Machine tools;Agriculture |
| Loading port | Huangpu port,China |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Medium | Hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic oil seal;BABSL/BAUM5SLX7 CFW oil seal |

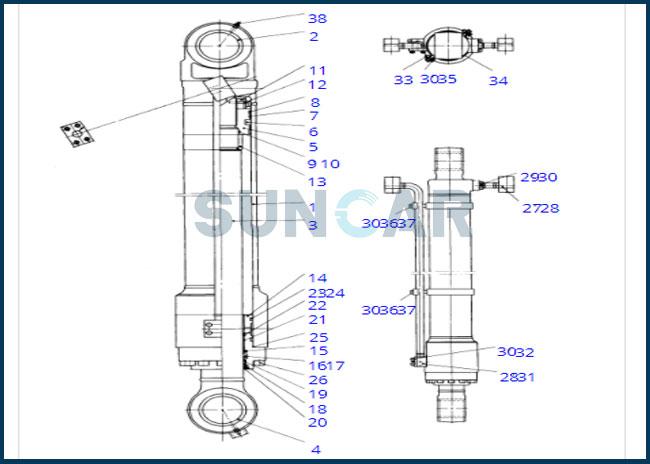

Relative Part Numbers:
| Pos. | Part No | Qty | Parts name |
| -. | 2440-9147 | [1] | CYLINDER;BUCKET |
| -. | 2440-9147A | [1] | CYLINDER;BUCKET |
| 2440-9147B | [1] | BUCKET CYLINDER | |
| 2440-9147C | [1] | BUCKET CYLINDER | |
| 1 | 03U581-1 | [1] | . TUBE |
| 2 | 03B735-1 | [1] | . BUSH |
| 3 | 03U586-0 | [1] | . ROD |
| 5 | 03B791-0 | [1] | . PISTON |
| 6 | E5130280 | [1] | . SEAL;SILPPER |
| 7 | 00W253-0 | [2] | . RING;WEAR |
| 8 | 00R098-0 | [2] | . RING |
| 9 | E6311421 | [1] | . O-RING |
| 10 | E6651420 | [2] | . RING;BACK-UP |
| 11 | 03U599-0 | [1] | . NUT;PISTON |
| 12 | 03B741-1 | [1] | . RING;LOCK |
| 13 | 00C229-0 | [1] | . RING;CUSHION |
| 14 | 03B792-2 | [1] | . COVER;ROD |
| 15 | E5500280 | [1] | . SEAL;BUFFER |
| 16 | E5303140 | [1] | . U-PACKING |
| 17 | E6501260 | [1] | . RING;BACK-UP |
| 18 | E6020280 | [1] | . WIPER;DUST |
| 19 | 00S785-0 | [1] | . RING;ROD |
| 20 | E6311661 | [1] | . O-RING |
| 20 | 00M314-0 | [1] | . RING;RETAINING |
| 21 | E8410181 | [1] | . BUSH;DU |
| 22 | 00M320-0 | [1] | . RING;RETAINING |
| 23 | E6311641 | [2] | . O-RING |
| 24 | 00S720-0 | [2] | . RING;BACK-UP |
| 26 | E0501819 | [12] | . BOLT;SOCKET |
| 27 | 03U592-0 | [1] | . PIPE ASS'Y-H |
| 27 | 53U293-0 | [1] | . PIPE ASS'Y-H |
| 28 | E6300621 | [2] | . O-RING |
| 29 | E0501216 | [4] | . BOLT;SOCKET |
| 30 | E3110102 | [12] | WASHER;SPRING M10 |
| 31 | 03U593-2 | [1] | . PIPE ASS'Y-R |
| 31 | 03U593-3 | [1] | . PIPE ASS'Y-R |
| 32 | E0501246 | [4] | . BOLT;SOCKET |
| 33 | 03U595-0 | [1] | . PIPE BAND ASS'Y |
| 33 | 53A390-0 | [1] | . PIPE BAND ASS'Y |
| 34 | 03U781-0 | [1] | . BAND;PIPE |
| 35 | E0020682 | [2] | . BOLT |
| 36 | 03A577-0 | [1] | . U-BOLT |
| 36 | 00C267-0 | [2] | . CLAMP;PIPE |
| 37 | E2022033 | [2] | . NUT |
| 37 | E0020722 | [4] | . BOLT HEX |
| 38 | E8841022 | [2] | . NIPPLE;GREESE |
| *. | 2440-9147KT | [1] | KIT;SEAL |
