VOE 14215342 VOE14215342 Floating Seal Planetary Drive For SUNCARSUNCARVOLVO EC130 EC150
VOE 14215342 VOE14215342 Floating Seal Planetary Drive for SUNCARSUNCARSUNCARSUNCARVOLVO EC130 EC150
Description: The mechanical face seal rings are manufactured from a close grained cast iron material to offer the very best combination of wear
and corrosion resistance. The excellent tribological characteristics of this material allow mechanical face seals from FTL Technology to be used in
appliC-A-Tions with a rotary speed up to 10m/s. Under extreme service conditions, the metallurgical qualities of our cast iron material provide
outstanding resistance against seizure and scoring.
The seal rings are statically sealed and have their face load generated by two toric O ring seals. These are critical elements to ensure maximum
performance of the overall seal system.
| Product name | VOE 14215342 VOE14215342 Floating Seal Planetary Drive for SUNCARSUNCARSUNCARSUNCARVOLVO EC130 EC150 |
| Brand | SUNCAR |
| Fits brand | SUNCARSUNCARSUNCARSUNCARVOLVO |
| Name | Floating seals; Heavy duty seal; Seal group; Duo cone seal; Drift oil seal ring; Floating oil seal |
| Part number | VOE 14215342 ; VOE14215342 |
| Metal hardness | 58-62HRC/62-68HRC |
| Material of seal | 100cr6/Gcr15/E52100/534A99/SUJ2 |
| Material of O-Ring | NBR/FKM/Silicone/HNBR |
| Feature |
Higher-toughness/Wear resistance/High&low temperature resistence |
| Function | Dustproof,waterproof,oilproof,leakproof;to ensure good operation |
| Supply ability | 550 sets per week |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Original place | Guangdong province,China |
| Loading port | Huangpu port,China |
| C-A-Tegory | Mechanical face seal |
| Avaliability | In stock |
|
CertifiC-A-Tion |
ISO9001 |
| Payment ways |
Western Union, L/C, T/T, Money Gram, Paypal |
| Delivery details | 3-7 days after payment received(Public Holiday Excluded) |
| MOQ | Accept trial order |
| Type | Floating seal |
| AppliC-A-Tion | Kobelco consturction machinery equipment;Truck;Construction Resell store;Repair Store |
|
Standard or nonstandard |
Standard |
| Models | SUNCARSUNCARSUNCARSUNCARVOLVO EC130 EC150 EC130C EC150C |

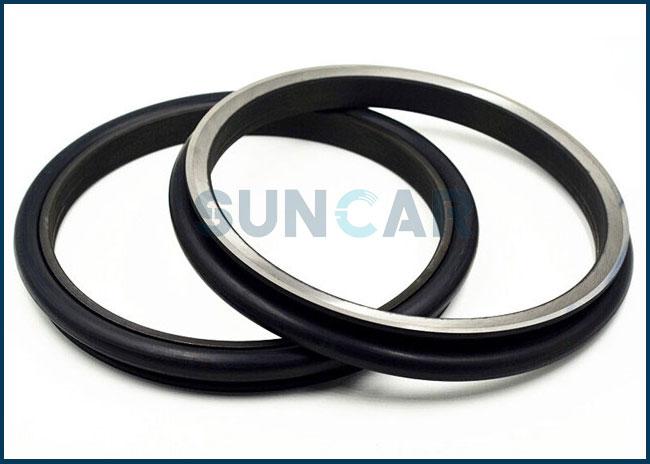

Floating Seal Products Description:
1. Floating seal also called toric seals, seal group, Duo cone seal, mechanical face seal, lifetime seal
2. Diemension of metal seal: 341/318
3. Working lifetime: 5000 hours / 8000hours
The Rubber Washers:
| Shore hardness | 60 ° ~ 65 ° |
| Minimum tensile strength | 11MPa |
| Minimum elongation at break | 300% |
| Flexible change | ± 5 ° |
| permanent deformation | ≤ 12% |
The Metal Rings:
| Surface finish / Roughness | ≤ Ra0.2μm |
| Face finish | ≤ Ra0.015μ.m |
| Pressure | ≤ 0.3MPa |
| Forged line speed | 2m / s |
| Casting line speed | 3m / s |
| Temperature | -100 ~ 200 °C |
.

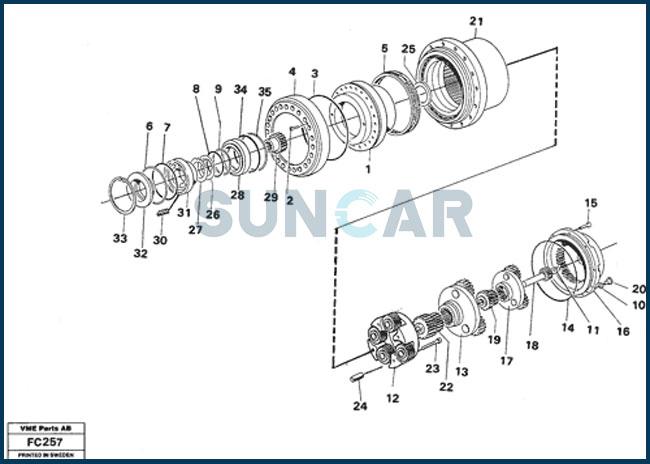

Relative Parts:
| Pos. | Part No | Qty | Parts name |
| VOE14214704 | [1] | Track Gearbox | |
| 1 | VOE14261946 | [1] | Hub |
| 2 | VOE14261947 | [3] | Screw |
| 3 | VOE14215340 | [1] | O-ring |
| 4 | VOE14261948 | [1] | Cover |
| 5 | VOE14215342 | [1] | Face Sealing |
| 6 | VOE14215343 | [1] | Back-up ring |
| 7 | VOE14012331 | [1] | O-ring |
| 8 | VOE14016904 | [1] | O-ring |
| 9 | VOE14215344 | [1] | Back-up ring |
| 10 | VOE14261978 | [2] | Washer |
| 11 | VOE14261979 | [1] | Friction washer |
| 12 | VOE14261949 | [1] | Hub Reduction |
| 13 | VOE14261950 | [1] | Hub Reduction |
| 14 | VOE14215339 | [1] | O-ring |
| 15 | VOE14261951 | [10] | Screw |
| 16 | VOE14261952 | [1] | Cover |
| 17 | VOE14261954 | [1] | Gear |
| 18 | VOE14261955 | [1] | Sun gear |
| 19 | VOE14261957 | [1] | Sun gear |
| 20 | VOE14261958 | [2] | Plug |
| 21 | VOE14261959 | [1] | Bearing housing |
| 22 | VOE14261960 | [1] | Sun gear |
| 23 | VOE14261961 | [4] | Screw |
| 24 | VOE14261963 | [4] | Guide |
| 25 | VOE14261964 | [1] | Spacer washer |
| 26 | VOE14215356 | [5] | Steel disc |
| 27 | SA8230-21870 | [6] | Disc |
| 28 | VOE14261966 | [1] | Spacer |
| 29 | VOE14261968 | [1] | Comp Flange |
| 30 | VOE14261969 | [15] | Spring |
| 31 | VOE14261970 | [1] | Piston |
| 32 | VOE14261971 | [1] | Spring Disc |
| 33 | VOE14261972 | [1] | Snap ring |
| 34 | VOE14211599 | [1] | O-ring |
| 35 | VOE14215345 | [1] | Back-up ring |
| VOE11700175 | [1] | Overhaul kit |
