707-99-82405 7079982405 Dump Trucks Hoist Cylinder Seal Kit Fits HD1200 KOMATSU
707-99-82405 7079982405 Dump Trucks Hoist Cylinder Seal Kit fits HD1200 KOMATSU
Description: This is a seal kit for Hoist Cylinder (for 136ton Payload) KOMATSU dump truck repair kit.
| Product name | 707-99-82405 7079982405 Dump Trucks Hoist Cylinder Seal Kit fits HD1200 KOMATSU |
| Brand name | SUNCAR |
| OEM number | 707-99-82405 7079982405 |
| AppliC-A-Ted models | HD1200-1 |
| Fit Brand | KOMATSU |
| MOQ | Accept trial order |
| Temperature | -40°C ~ 250 °C. |
| Material | PU;VMQ;ACM;NBR;HNBR,;PTFE;Rubber |
| Function | Dust proof, Shaft seal,high and low temperature resistance |
| Material |
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Medium | Hydraulic oil, anti-fire fluid, water, gas etc |
| Feature |
High temperature, low temperature, high pressure, low pressure, |
| Transport mode | By Air, by Sea, by Express ( FedEx , UPS,DHL,TNT etc.), your forwarder |
| CertifiC-A-Tion | ISO9001 |
| Market | Those in need |
|
Availability |
In stock |
| AppliC-A-Tion |
Excavator KOMATSU machinery, Consturction machinery repair store;Resell store |
| Color | Standard color |
| Condition | A brand-new, unused, unopened, undamaged |
| Style |
Komatsu dump truck repair kit |
Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder.
The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the
hydraulic system, to maintain its power.
Items are sold by part number only. Picture is for illustration purposes and the part or parts may be different in color or quantity.

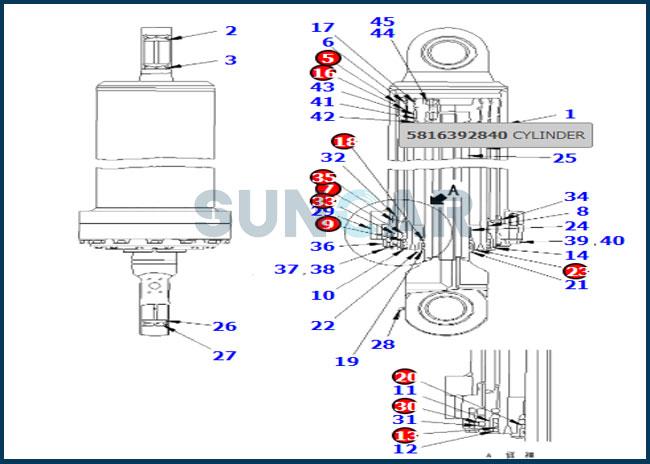

Material Detail:
| Nos. | Part number | Name | Qty |
| 581-63-08010 | CYLINDER ASS'Y | 2 | |
| 1 | 581-63-92740 | • CYLINDER | 1 |
| 2 | 581-63-22691 | • BUSHING | 1 |
| 3 | 04071-00150 | • RING,SNAP | 2 |
| 4 | 581-63-92840 | • CYLINDER | 1 |
| 5 | 707-39-28020 | • RING,WEAR (KIT) | 1 |
| 6 | 707-75-24030 | • RING,SNAP | 1 |
| 7 | 707-51-21810 | • PACKING,ROD (KIT) | 1 |
| 8 | 707-52-12150 | • BUSHING | 1 |
| 9 | 707-56-21790 | • SEAL,DUST (KIT) | 1 |
| 10 | 707-75-21510 | • RING,SNAP | 1 |
| 11 | 581-63-92850 | • GLAND | 1 |
| 12 | 581-63-92860 | • BUSHING | 1 |
| 13 | 707-56-21510 | • SEAL,DUST (KIT) | 1 |
| 14 | 581-63-22560 | • SCREW | 4 |
| 15 | 581-63-92940 | • CYLINDER | 1 |
| 16 | 707-39-23010 | • RING,WEAR (KIT) | 1 |
| 17 | 561-63-22770 | • RING,SNAP | 1 |
| 18 | 195-63-93551 | • PACKING,ROD (KIT) | 1 |
| 19 | 581-63-22940 | • BUSHING | 1 |
| 20 | 195-63-93170 | • SEAL,DUST (KIT) | 1 |
| 21 | 581-63-92360 | • RING,SNAP | 1 |
| 22 | 581-63-22920 | • GLAND | 1 |
| 23 | 581-63-22850 | • SEAL,DUST (KIT) | 1 |
| 24 | 07177-01240 | • BUSHING | 1 |
| 25 | 581-63-22122 | • ROD | 1 |
| 26 | 581-63-22691 | • BUSHING | 1 |
| 27 | 04071-00150 | • RING,SNAP | 2 |
| 28 | 07020-00675 | • FITTING | 1 |
| 29 | 707-27-28060 | • HEAD,CYLINDER | 1 |
| 30 | 707-56-26790 | • SEAL,DUST (KIT) | 1 |
| 31 | 707-75-26010 | • RING,SNAP | 1 |
| 32 | 707-52-12650 | • BUSHING | 1 |
| 33 | 707-51-26810 | • PACKING,ROD (KIT) | 1 |
| 34 | 707-34-10285 | • O-RING (KIT) | 1 |
| 35 | 707-35-52280 | • RING,BACK UP (KIT) | 1 |
| 36 | 581-63-92750 | • GLAND | 1 |
| 37 | 01010-81250 | • BOLT | 12 |
| 38 | 01643-31232 | • WASHER | 12 |
| 39 | 01011-82405 | • BOLT | 12 |
| 40 | 01643-32460 | • WASHER | 12 |
| 41 | 707-36-18030 | • PISTON | 1 |
| 42 | 707-44-18070 | • RING,PISTON | 2 |
| 43 | 07155-01845 | • RING,WEAR | 1 |
| 44 | 07165-12222 | • NUT | 5 |
| 45 | 01124-82260 | • STUD | 5 |
| 1K | 707-99-82405 | SERVICE KIT,HOIST CYLINDER | 1 |
| 1K | 707-39-28020 | • RING,WEAR (KIT) | 1 |
| 1K | 707-51-21810 | • PACKING,ROD (KIT) | 1 |
| 1K | 707-56-21790 | • SEAL,DUST (KIT) | 1 |
| 1K | 707-56-21510 | • SEAL,DUST (KIT) | 1 |
| 1K | 707-39-23010 | • RING,WEAR (KIT) | 1 |
| 1K | 195-63-93551 | • PACKING,ROD (KIT) | 1 |
| 1K | 195-63-93170 | • SEAL,DUST (KIT) | 1 |
| 1K | 581-63-22850 | • SEAL,DUST (KIT) | 1 |
| 1K | 707-56-26790 | • SEAL,DUST (KIT) | 1 |
| 1K | 707-51-26810 | • PACKING,ROD (KIT) | 1 |
| 1K | 707-34-10285 | • O-RING (KIT) | 1 |
| 1K | 707-35-52280 | • RING,BACK UP (KIT) | 1 |
| 1K | 707-44-18070 | • RING,PISTON | 2 |
| 1K | 07155-01845 | • RING,WEAR | 1 |
