23D-63-32201 23D6332201 Scarifier Cylinder Seal Kit Fits KOMATSU Grader GD305A-3 GD355A-3 GD405A-3 GD405A-3S
23D-63-32201 23D6332201 Scarifier Cylinder Seal Kit Fits KOMATSU Grader GD305A-3 GD355A-3 GD405A-3 GD405A-3S
Description: Service kit for 2366311204 Blade Lift Cylinder.Hydraulic cylinder seals kits are essential components of different mechanical
devices, machinery, and equipment. People choose these seals because of their effective sealing function.The function of hydraulic cylinder seal
kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
| Part name | 23D-63-32201 23D6332201 Scarifier Cylinder Seal Kit |
| Brand | SUNCAR |
| Fits brand | KOMATSU |
| Part number | 23D-63-32201 23D6332201 |
| Style | Scarifier cylinder seal kit |
| Fits models | GRADERS GD22AC-1A GD22H-1 KOMATSU |
| Compatible equipment | KOMATSU construction equipment;GRADERS |
| Place of original | China |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| Terms of payment |
Western Union, L/C, T/T, Money Gram, D/A, D/P |
|
Feature |
Durability,hard-wearing,higher-toughness |
|
Material |
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
|
Models |
GD305A-3;GD355A-3;GD405A-3;GD405A-3S |
How To Place Order:
1. Inquiry
2. The sales made an inquiry to the sales manager
3. Reply
4. Business negotiation
5. Make a deal
6. Make payment
7. Receice payment
8. Warehouse department checking and packing the products
9. Delivery(Your forwarder or we find forwarder by expresss shipping)
10. You receiced the products
11. After-sale follow up service
12. Time to reorder

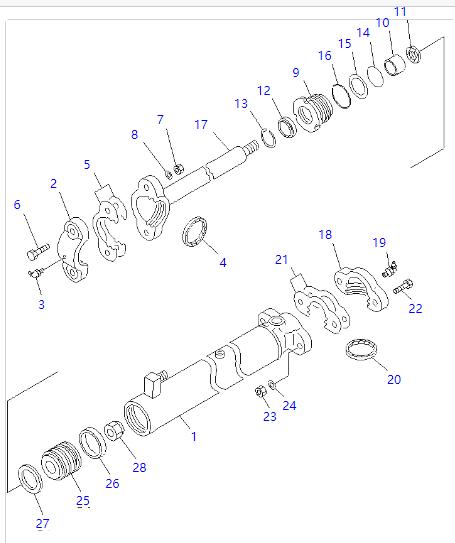

Parts on Group Cylinder:
| Pos. | Part No | Qty | Parts name |
| 23D-63-32201 | [2] | CYLINDER ASSY | |
| 1. | 23D-63-32241 | [1] | CYLINDER |
| 2. | 707-66-35500 | [1] | CAP,CYLINDER |
| 3. | 07020-00900 | [1] | FITTING,GREASE |
| 4. | 07141-00070 | [1] | SEAL,DUST |
| 5. | 07139-00702 | [6] | SHIM¤ 0.2MM |
| 07139-00705 | [4] | SHIM¤ 0.5MM | |
| 6. | 01010-81665 | [2] | BOLT |
| 7. | 01580-11613 | [2] | NUT |
| 8. | 01643-31645 | [2] | WASHER |
| 9. | 707-29-60760 | [1] | HEAD,CYLINDER |
| 10. | 07177-03525 | [1] | BUSHING |
| 11. | 707-51-35210 | [1] | PACKING,ROD |
| 12. | 175-63-75190 | [1] | SEAL,DUST |
| 13. | 07179-12047 | [1] | RING,SNAP |
| 14. | 07000-12055 | [1] | O-RING |
| 15. | 07146-02056 | [1] | RING,BACK-UP |
| 16. | 07000-02060 | [1] | O-RING |
| 17. | 23D-63-32221 | [1] | ROD,PISTON |
| 18. | 07138-00760 | [1] | CAP,ROD |
| 25. | 707-36-60040 | [1] | PISTON |
| 26. | 707-39-60190 | [1] | RING,WEAR |
| 27. | 707-44-60070 | [1] | RING,PISTON |
| 28. | 07165-12222 | [1] | NUT |
