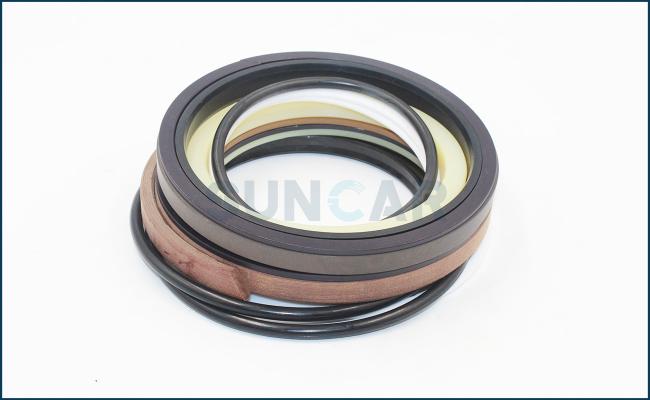

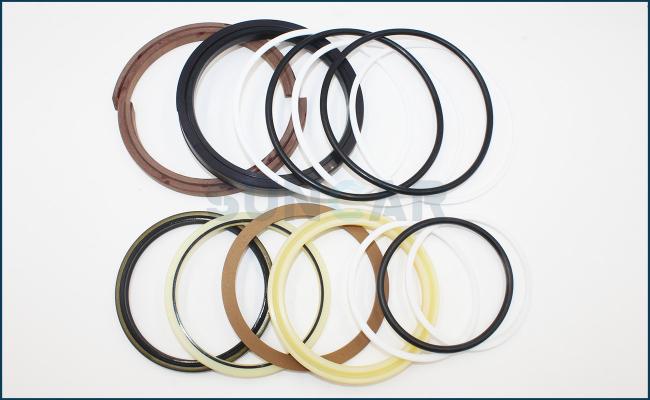

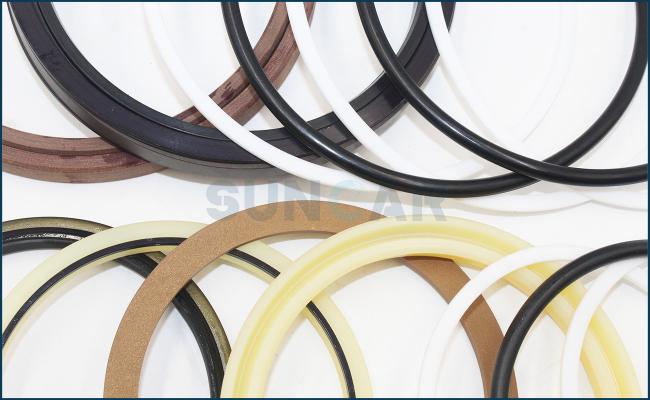

LZ013800 Bucket Cylinder Seal Repair Kit For Excavator Hydraulic Cylinder CX490D LC CX490D RTC
Price:
Negotiable
MOQ:
Trial order accepted
Delivery Time:
3-7 Days After Payment Received(Public Holiday Excluded)
Brand:
SUNCAR
Product Description
LZ013800 Bucket Cylinder Seal Repair Kit For Excavator Hydraulic Cylinder CX490D LC CX490D RTC
Description: LZ013800 Bucket cylinder seal kit for CNH
| Iteam name | LZ013800 Bucket Cylinder Seal Repair Kit |
| Brand | SUNCAR |
| Part number | LZ013800 |
| Market | North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide |
| Feature |
Higher-toughness/Wear resistance/High&low temperature resistence |
| Function | Prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power. |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Supply ability | 550 sets per week |
| Transport mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
| AppliC-A-Ted equipment | CNH excavator |
| Original place | Guangdong province,China |
| Loading port | Huangpu port,China |
| Avaliability | In stock |
|
CertifiC-A-Tion |
ISO9001 |
| Terms of payment |
Western Union,T/T, Paypal,Bank transfer,Alipay |
| Delivery details | 3-7 days after payment received(Public Holiday Excluded) |
| MOQ | Accept trial order |
| Type | Hydraulic bucket cylinder seal kit |
| AppliC-A-Ted models | CNH CX490DLC CX490DRTC |
|
Standard or nonstandard |
Standard |
Parts on group (CX490D LC):
| Pos. | Part No | Qty | Parts name |
| 1 | KTV20770 | [1] | HYDRAULIC CYLINDER |
| 2 | LR00947 | [1] | HYD CYL SLEEVE |
| 3 | LZ013810 | [1] | KIT |
| 4 | LU002500 | [1] | CYLINDER END CAP |
| 5 | LB00669 | [1] | BACK-UP RING |
| 6 | LMU0072 | [1] | RING |
| 7 | LJ00992 | [1] | JACK PISTON |
| 8 | LE015240 | [2] | SEALING RING |
| 9 | LE01016 | [2] | GUIDE RING |
| 10 | LA018330 | [8] | BOLT |
| 11 | LE022230 | [1] | RING |
| 12 | LA00908 | [1] | SPECIAL NUT |
| 13 | 156228A1 | [1] | SET SCREW |
| 14 | 155981A1 | [1] | BALL |
| 15 | LE01017 | [4] | SHAFT SEAL |
| 16 | LJ022690 | [1] | JOINT |
| 17 | LR023620 | [1] | PIPE |
| 18 | LE027300 | [2] | O-RING |
| 19 | LA018020 | [8] | BOLT |
| 20 | LD001550 | [2] | CLAMP BRACKET |
| 21 | LZU0074 | [2] | CLAMP BRACKET |
| 22 | 158131A1 | [4] | BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9 |
| 23 | 156227A1 | [4] | WASHER |
| 24 | 155716A1 | [2] | COLLAR |
| 25 | LA00683 | [2] | BOLT,Hex |
| 26 | LA018030 | [2] | WASHER |
| 27 | 153630A1 | [1] | LUBE NIPPLE |
| 28 | LZ013800 | [1] | KIT |
| 29 | LE00890 | [1] | RING |
| 30 | LE015180 | [1] | SEALING RING |
| 31 | LE00892 | [1] | BACK-UP RING |
| 32 | LE022200 | [1] | RING |
| 33 | LE028070 | [1] | O-RING |
| 34 | LE01012 | [1] | BACK-UP RING |
| 35 | LE027990 | [1] | SEALING RING |
| 36 | LE01014 | [1] | SEALING RING |
