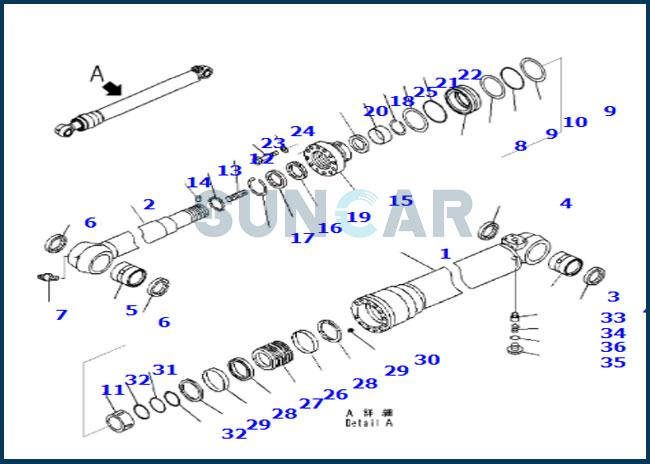

707-99-50730 7079950730 Arm Cylinder Service Kit For PC200-8 Excavator
707-99-50730 7079950730 Arm Cylinder Service Kit for PC200-8 Excavator
Description: This is a kind of arm cylinder seal kit for KOMATSU excavator.
PC200-8 S/N 350001-up excavators.
PC200-8 S/N 315646-up excavators.
PC200-8 S/N 310001-315645 excavators.
| Product name | 707-99-50730 7079950730 Arm Cylinder Service Kit for PC200-8 Excavator |
| Brand name | SUNCAR |
| Cylinder part number |
707-99-50730 ; 7079950730 |
| Compatible model | Excavator KOMATSU PC200-8 |
| Type | Excavator cylinder seal kit;Arm cylinder seal kit. |
| Temp. | NBR(-40~120°C) |
| MOQ | Accept trial order |
| Feuture |
Excellent durability and flexibility in using. |
| Payment | Paypal,T/T, Western Union, ,Bank Transfer |
| Paking details | PP bag inside,carton box outside. |
| Loading Port | Huangpu port,China |
| Shopping mode |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
CertifiC-A-Tion |
ISO9001 |
| Consist of |
Dust seal;Packing rod;Buffer seal;Dust seal;O ring;Back up ring;Wear ring; Piston ring;O ring. |
|
Availability |
In stock |
| Fits equipment | KOMATSU |
Features:
Low friction, high efficiency.
Superior sealing effect in high pressure.
Can be installed onto a solid piston without tools.
Low density; high strength.
Low thermal expansion.
Ozone resistance .
Resistance to grease and resistance to acidic.
High thermal conductivity.
High hardness:20 to 90 shore A or as your request.
Wear-resisting,oil resistance,ozone resistance,anti- aging, prevent oil leak out.
Relative Parts on Group:
| Part number | Name | Qty | |
| K02 | 20Y-32-05041 | Service Kit, Shoe Bolt and Nut | |
| 134-32-61221 | • Nut | 50 | |
| 20Y-32-11230 | • Bolt | 50 | |
| K03 | 20Y-32-05070 | Service Kit, Shoe Bolt and Nut | |
| 134-32-61221 | • Nut | 50 | |
| 20Y-32-31210 | • Bolt | 50 | |
| K04 | 20Y-32-05080 | Service Kit, Shoe Bolt and Nut | |
| 134-32-61221 | • Nut | 50 | |
| 20Y-32-31231 | • Bolt | 50 | |
| K05 | 20Y-32-05051 | Service Kit, Shoe Bolt and Nut | |
| 134-32-61221 | • Nut | 50 | |
| 20Y-32-11220 | • Bolt | 50 | |
| K06 | 707-98-46280 | Service Kit, Boom Cylinder | |
| 07000-13030 | • O-ring | 2 | |
| 07000-15075 | • O-ring | 1 | |
| 07000-15110 | • O-ring | 2 | |
| 07145-00070 | • Seal, Dust | 2 | |
| 07145-00080 | • Seal, Dust | 2 | |
| 707-35-90930 | • Ring, Back-up | 2 | |
| 707-35-91220 | • Ring, Back-up | 3 | |
| 707-39-12140 | • Ring, Wear | 2 | |
| 707-44-12150 | • Ring, Piston | 1 | |
| 707-51-85030 | • Packing, Rod | 1 | |
| 707-51-85650 | • Ring, Buffer | 1 | |
| 707-56-85740 | • Seal, Dust | 1 | |
| K07 | 707-99-46410 | Service Kit, Boom Cylinder | |
| 07000-53030 | • O-ring | 2 | |
| 07000-55075 | • O-ring | 1 | |
| 07000-55110 | • O-ring | 2 | |
| 07145-10070 | • Seal, Dust | 2 | |
| 07145-10080 | • Seal, Dust | 2 | |
| 707-35-90930 | • Ring, Back-up | 2 | |
| 707-35-91220 | • Ring, Back-up | 3 | |
| 707-39-12140 | • Ring, Wear | 2 | |
| 707-44-12180 | • Ring, Piston | 1 | |
| 707-51-85650 | • Ring, Buffer | 1 | |
| 707-51-85730 | • Packing, Rod | 1 | |
| 707-56-85650 | • Seal, Dust | 1 | |
| 707-56-85740 | • Seal, Dust | 1 | |
| K09 | 707-98-48610 | Service Kit, Arm Cylinder | |
| 07000-13030 | • O-ring | 1 | |
| 07000-15085 | • O-ring | 1 | |
| 07000-15125 | • O-ring | 2 | |
| 07002-12034 | • O-ring | 1 | |
| 07145-00080 | • Seal, Dust | 4 | |
| 707-35-90960 | • Ring, Back-up | 2 | |
| 707-35-91370 | • Ring, Back-up | 3 | |
| 707-39-13530 | • Ring, Wear | 2 | |
| 707-44-13250 | • Ring, Piston | 1 | |
| 707-51-95030 | • Packing, Rod | 1 | |
| 707-51-95650 | • Ring, Buffer | 1 | |
| 707-56-95740 | • Seal, Dust | 1 | |
| K10 | 707-99-50500 | Service Kit, Hydraulic Cylinder | |
| 07000-13030 | • O-ring | 1 | |
| 07000-15085 | • O-ring | 1 | |
| 07000-15125 | • O-ring | 2 | |
| 07002-12034 | • O-ring | 1 | |
| 07145-00080 | • Seal, Dust | 4 | |
| 707-35-30850 | • Ring, Back-up | 2 | |
| 707-35-31260 | • Ring, Back-up | 3 | |
| 707-39-13530 | • Ring, Wear | 2 | |
| 707-44-13250 | • Ring, Piston | 1 | |
| 707-51-95030 | • Packing, Rod | 1 | |
| 707-51-95650 | • Ring, Buffer | 1 | |
| 707-56-95740 | • Seal, Dust | 1 | |
| K11 | 707-99-50730 | Service Kit, Arm Cylinder | |
| 07000-53030 | • O-ring | 1 | |
| 07000-55085 | • O-ring | 1 | |
| 07000-55125 | • O-ring | 2 | |
| 07002-52034 | • O-ring | 1 | |
| 07145-10080 | • Seal, Dust | 4 | |
| 707-35-30850 | • Ring, Back-up | 2 | |
| 707-35-31260 | • Ring, Back-up | 3 | |
| 707-39-13530 | • Ring, Wear | 2 | |
| 707-44-13280 | • Ring, Piston | 1 | |
| 707-51-95650 | • Ring, Buffer | 1 | |
| 707-51-95730 | • Packing, Rod | 1 | |
| 707-56-95650 | • Seal, Dust | 1 | |
| 707-56-95740 | • Seal, Dust | 1 | |
| 707-56-85740 | • Seal, Dust | 1 | |
| K18 | 707-99-45070 | Service Kit, Hydraulic Cylinder | |
| 07000-13030 | • O-ring | 1 | |
| 07000-15070 | • O-ring | 1 | |
| 07000-15105 | • O-ring | 1 | |
| 07145-00070 | • Seal, Dust | 2 | |
| 20Y-70-23220 | • Seal, Dust | 2 | |
| 707-35-90360 | • Ring, Back-up | 2 | |
| 707-35-91150 | • Ring, Back-up | 1 | |
| 707-39-11530 | • Ring, Wear | 2 | |
| 707-44-11250 | • Ring, Piston | 1 | |
| 707-51-80030 | • Packing, Rod | 1 | |
| 707-51-80650 | • Ring, Buffer | 1 | |
| 707-56-80740 | • Seal, Dust | 1 | |
| 707-56-80820 | • Seal, Dust | 1 |
