707-99-85340 7079985340 Arm Cylinder Service Kit For Excavator PC1800-6
707-99-85340 7079985340 Cylinder Service Kit for Excavator PC1800-6
Description: Arm cylinder seal repair kit
| Product name | 707-99-85340 7079985340 Cylinder Service Kit for Excavator PC1800-6 |
| Brand name | SUNCAR |
| MOQ | Accept trial order |
| Feuture |
Higher-toughness/Wear Resistance/Wide appliC-A-Tion range. |
| Payment ways | T/T, Western Union, Paypal |
| Paking details | PP bag inside,carton box outside. |
| Original Place | Guangdong,China |
| Features | High pressure resistance, durability, corrosion resistance |
| Transport ways |
By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.) |
|
CertifiC-A-Tion |
ISO9001 |
|
Availability |
In stock |
| Compatible equipment | Excavator |
| Compatible brand | Komatsu,Doosan |
| Loading port | Huangpu,China |
| Seal type | Arm cylinder seal kit. |
| Supply ability | 2200 sets per month |
Features:
Low friction, high efficiency.
Superior sealing effect in high pressure.
Can be installed onto a solid piston without tools
Low density; High strength;
Low thermal expansion
Ozone resistance .
Resistance to grease and .Resistance to acidic.
High thermal conductivity.
High hardness:20 to 90 shore A or as your request.
Wear-resisting,oil resistance,ozone resistance,anti- aging, prevent oil leak out.

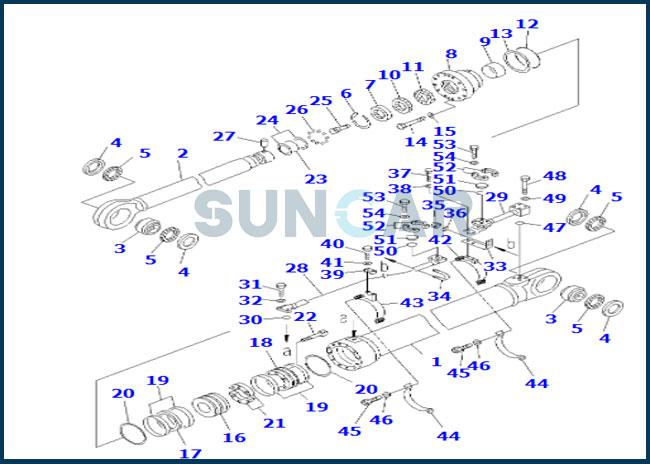

Relative Parts:
| Nos. | Part Number | Name | Qty |
| G-1 | 21T-63-X2430 | CYLINDER GROUP,L.H. | 1 |
| G-2 | 21T-63-X2440 | CYLINDER GROUP,R.H. | 1 |
| ==================== | |||
| 21T-63-02430 | CYLINDER ASS'Y | 1 | |
| 1 | 21T-63-63340 | • CYLINDER | 1 |
| 2 | 21T-63-63320 | • ROD,PISTON | 1 |
| 3 | 21T-72-15850 | • BUSHING | 2 |
| 4 | 21T-72-15860 | • BUSHING | 4 |
| 5 | 21T-72-15870 | • SEAL,DUST (KIT) | 4 |
| 6 | 707-75-16520 | • RING,SNAP | 1 |
| 7 | 707-56-16080 | • SEAL,DUST (KIT) | 1 |
| 8 | 707-27-25230 | • HEAD,CYLINDER | 1 |
| 9 | 707-52-91350 | • BUSHING | 1 |
| 10 | 707-51-16030 | • PACKING,ROD (KIT) | 1 |
| 11 | 707-51-16640 | • RING,BUFFER (KIT) | 1 |
| 12 | 07000-15250 | • O-RING (KIT) | 1 |
| 13 | 07001-05250 | • RING,BACK-UP (KIT) | 1 |
| 14 | 01011-83330 | • BOLT | 12 |
| 15 | 01643-33380 | • WASHER | 12 |
| 16 | 707-36-25160 | • PISTON | 1 |
| 17 | 707-44-25180 | • RING,PISTON (KIT) | 1 |
| 18 | 707-36-25170 | • PISTON | 1 |
| 19 | 707-39-25820 | • RING,WEAR (KIT) | 4 |
| 20 | 707-44-25910 | • RING | 2 |
| 21 | 707-40-25870 | • SPACER | 2 |
| 22 | 01253-61615 | • BOLT | 6 |
| 23 | 07000-15135 | • O-RING (KIT) | 1 |
| 24 | 707-35-91440 | • RING,BACK-UP (KIT) | 2 |
| 25 | 707-71-50390 | • PLUNGER | 1 |
| 26 | 04260-01270 | • BALL | 10 |
| 27 | 707-71-91380 | • PIN | 1 |
| 28 | 21T-63-63370 | TUBE,L.H. | 1 |
| 28 | 21T-63-63470 | TUBE,R.H. | 1 |
| 29 | 21T-63-67181 | TUBE | 1 |
| 30 | 07000-13048 | O-RING (KIT) | 1 |
| 31 | 01010-81450 | BOLT | 4 |
| 32 | 01643-31445 | WASHER | 4 |
| 33 | 707-88-11740 | BRACKET | 1 |
| 34 | 07283-24354 | CLIP | 1 |
| 35 | 01599-01011 | NUT | 2 |
| 36 | 01643-31032 | WASHER | 2 |
| 37 | 01010-81245 | BOLT | 2 |
| 38 | 01643-31232 | WASHER | 2 |
| 39 | 707-88-11730 | CLAMP | 1 |
| 40 | 01010-81250 | BOLT | 2 |
| 41 | 01643-31232 | WASHER | 2 |
| 42 | 707-88-96700 | BRACKET | 1 |
| 43 | 707-88-87340 | BRACKET | 1 |
| 44 | 707-88-96710 | BAND | 2 |
| 45 | 01010-81240 | BOLT | 8 |
| 46 | 01643-31232 | WASHER | 8 |
| 47 | 07000-12060 | O-RING (KIT) | 1 |
| 48 | 01011-81645 | BOLT | 4 |
| 49 | 01643-31645 | WASHER | 4 |
| 50 | 07000-13048 | O-RING,(FOR SHIPPING) | 2 |
| 51 | 07378-11410 | HEAD,(FOR SHIPPING) | 2 |
| 52 | 07371-51470 | FLANGE,(FOR SHIPPING) | 4 |
| 53 | 01010-71455 | BOLT,(FOR SHIPPING) | 8 |
| 54 | 01643-31445 | WASHER,(FOR SHIPPING) | 8 |
| ==================== | |||
| KIT | 707-99-85340 | SERVICE KIT | 2 |
