Rust Resiatnt 10500kg/H 11kw Feather Press

Capacity Is 10500kg/H Shipping Weight Is 1350kg Feather Squeezer

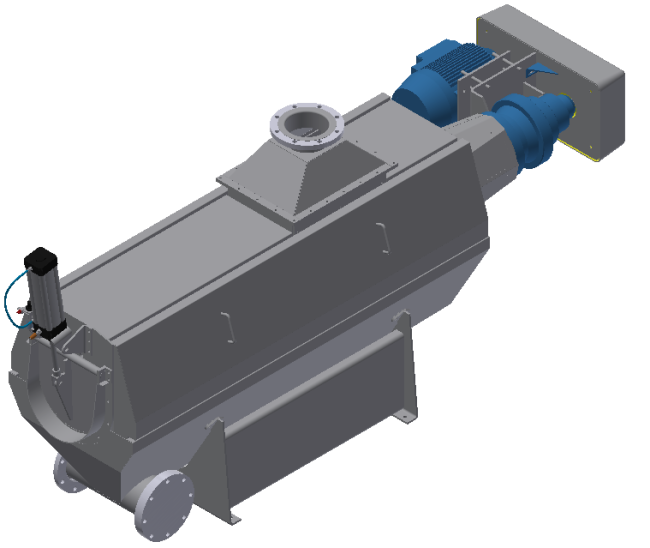

    The utility model provides a novel feather squeezing machine for the harmless treatment of livestock and poultry, belonging to the technical field of harmless treatment of livestock and poultry, and aims to solve the structure of feather dehydration equipment in the existing harmless treatment of livestock and poultry

    The problem of unreasonable design and poor dehydration effect. The water squeezer body it adopts is a water squeezer body composed of a cone-shaped cylinder body at the bottom and a head plate connected to the two ends. The rectangular parallelepiped frame type base is equipped with the seals connected to both ends of the water squeezer body. The head plate, motor and reducer, the screw spindle shaft installed in the water squeeze machine body is equipped with rolling bearings, the shaft head end is connected with a coupling, the screw spindle is connected to the reducer through the coupling, and the reducer is connected to the motor.

    The upper part of the water squeezer body is welded with a feeding hopper, one end of the head plate is welded with a discharge interface, the other end of the head plate is fixedly equipped with a bearing chamber, and an adjustable gland is installed on the discharge interface. The structure is simple and practical, and it is suitable for the matching of animal and poultry harmless treatment devices.
