45kw Hammer Crusher Machine , 15ton/Hour Blade Bone Crushing Machine

Model Is YPS1575B Rendering Pre-Crusher Rendering Plant Crusher

Main Features:

1) low speed axis can handle metals in raw materials.

2) equipped with electronic speed monitoring, the motor can be stopped immediately when large matter enter the crusher.

3) the spindle is equipped with heavy roller bearings, which can resist large radial and axial impact.

4) standard parts are used for driving from motor to shaft.

5) localized structures can replace parts in a short time.

6)the material inlet and outlet are equipped with standard removable butt flanges.

Classification

The hammer crusher is divided into: single-stage hammer crusher, high-efficiency hammer crusher, sand blower, vertical shaft hammer crusher, reversible hammer crusher, ring hammer crusher. The hammer head of the hammer crusher is replaced by a ring coal crusher with a steel ring. The ring coal crusher is a variant of the hammer crusher. It uses the combined effect of high-speed impact and low-speed rolling to crush materials, so that finer products can be obtained. It is mainly used to crush coal for power plants, but it can also be used to crush gypsum, salt chemical raw materials and some medium-hard materials.

    1. The crushed materials are coal, salt, white Asia, gypsum, bricks, limestone, etc. Hammer crushers. 1. According to the number of rotors, it is divided into two types: single rotor and double rotor.

    2. According to the rotation direction of the rotor, it can be divided into two types: irreversible and reversible.

    3. According to the arrangement of the hammers, it is divided into two types: single-row and multi-row. The former hammers are installed on the same rotating plane, while the latter hammers are distributed on several rotating planes. Main purposeedit The crushed materials are coal, salt, chalk, gypsum, bricks, limestone, etc. It is also used to crush wood, paper or crushed asbestos cement with strong fiber structure, elasticity and toughness to recycle asbestos fibers. In addition, the hammer crusher can not only be used in crushing production lines, sand production lines, but also in the beneficiation production line instead of cone crushers.

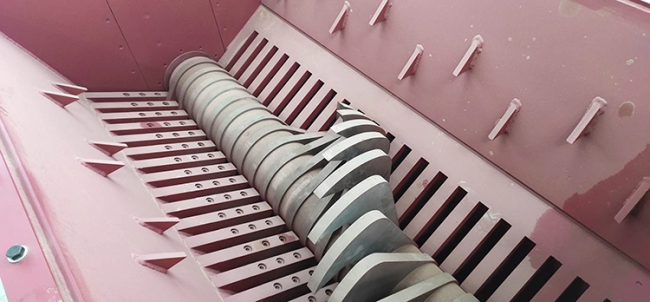

    Jiangsu Senrong's pre-crusher is very durable and has an ultra-high-strength cemented carbide welded on each fracture surface. This alloy can effectively cut off the metal impurities mixed in the material. The pre-crusher breaks the incoming material into particles of no more than 48 mm, and particles of this size will save a lot of time for subsequent cooking or decomposition processes. The pre-crusher is equipped with a speed sensor. Once a large metal foreign object is encountered, the configured sensor will automatically shut down the motor to protect the device.
