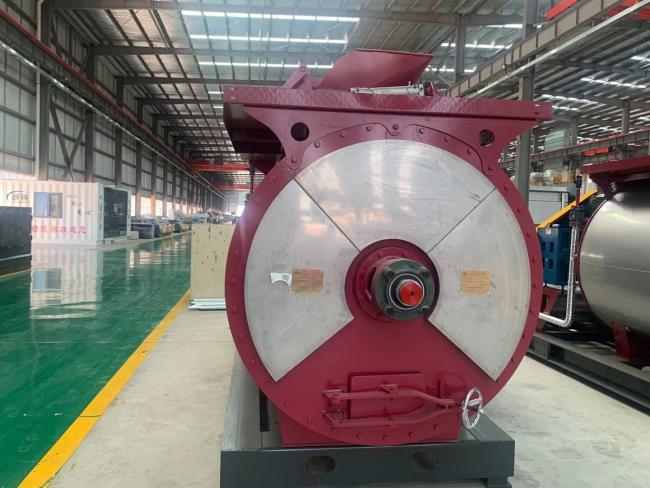

Dryer Carbon Steel CE Rendering Plant Machinery

Rendering Cooker For Rendering Plant

(1) What are the various names and models of the dryer? Coil dryer model: CZPG-1400-7

Paddle dryer model: CZJY-1400-7 Tube bundle dryer model: CZGS-1400-7

(2) Heat exchange of various types of dryers Area? Coil dryer 67 ㎡ Paddle dryer 53 ㎡ Tube bundle dryer 123 ㎡

(3) Which materials are suitable for drying? Feather meal, meat and bone meal

(4) What is the thickness of the inner wall and inner wall of the dryer? Inner wall 18 ㎜ outer wall 12 ㎜

(5) How long does it take to dry the material? 2.5h (determined according to the moisture content of the material)
(6) What is the temperature of the material after drying? 60℃

(7) What is the moisture content of the material after drying? ≤10% (according to material control)

(8) What are the differences between coils, tube bundles, and paddle dryers and their respective advantages and disadvantages?

The coil dryer can be produced continuously and in batches, with high energy consumption and low coil life. The paddle dryer can be produced continuously and in batches, with a long service life, but high cost and high energy consumption. The tube bundle dryer can only be used for continuous production, with high drying efficiency, low energy consumption, but short service life.

(9) What are the indexes of digestibility, ash content, protein and freshness of feather meal after processing? Digestibility ≥80% Ash content ≤4% Protein ≥82% Freshness ≤90% (The indicators are determined according to the freshness of the raw materials)
