18650 48V 20Ah Electric Bicycle Battery
48V 1000W Electric Bike Li-ion Battery 48V 20Ah for E-Bike Scooter motorcycle
Brief introduce of MaxLi
- Capacity, Power, Voltage and Cell can be customized as your requirement for Min. order 1PC.
- BMS protect battery no fire and explosion as over-discharge, over-charge, balance and short circuit.
- Key fuction for battery charging and discharge
- Easy to remove, portable.
- Portable/Key control/Fashionable/Wonderful/Waterproof/Handle/Metal
Case/Durable/Deep cycle/Long Life/Rechargeable/Safe/BMS/No memory effect/Low self discharge
- OEM order are welcome!!

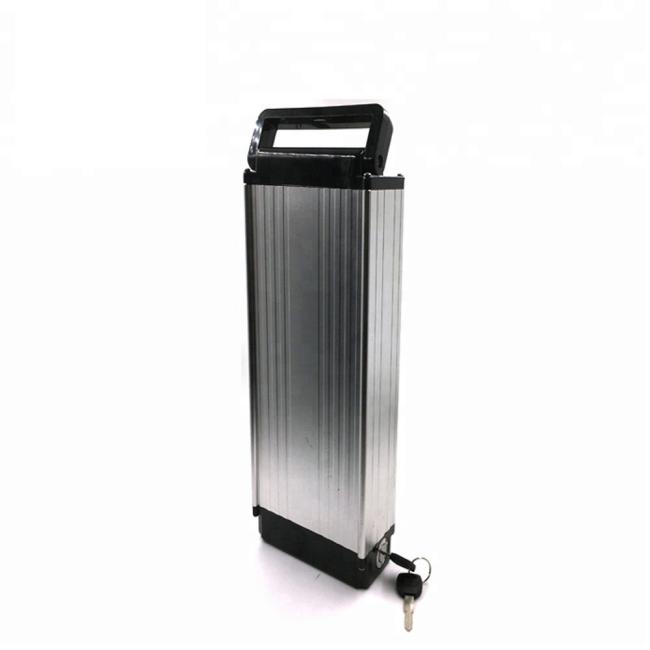

Reference photo of 48V 20Ah Li-ion battery
Specification of battery
|
Material
|
Lithium Ion Battery (LiNiCoMnO2)
|
|
|
Cell Assembly
|
18650 3.7V NCM cell
|
|
|
7 /10 /13 series
|
||
|
Built-in (13S 30A BMS)
|
Over-charging & charging protection.
|
|
|
Temperature control function.
|
||
|
Short circuit protection.
|
||
|
Balances the cells and ensures long cell life.
|
||
|
Charging
|
Charging Model
|
CC / CV
|
|
Charging Current
|
2A / 5A Charger
|
|
|
BMS Charging Cut-off Voltage
|
54.6V / 42V / 29.4V
|
|
|
Cell Overcharge Protection Voltage
|
4.2V / Cell
|
|
|
Discharge
|
Max Continuous Discharge Current
|
30A
|
|
Peak Discharge Current
|
60A
|
|
|
BMS Discharge Cut-off Voltage
|
35.1V / 27V / 18.9V +/-1V
|
|
|
Cell Over-discharge Protection Voltage
|
2.7V / Cell
|
|
|
Working Temperature
|
Charging Temperature Range
|
0~45°C
|
|
Discharge Temperature Range
|
-20~60°C
|
|
|
Cycle Life
|
800~1000 cycles
|
|
|
Our certifications
|
ISO9001, UL 1642, CE, RoHS
|
|
|
Dimension
|
70*175*255 mm (+/-5 mm)
|
|
|
Weight
|
5.8 Kg
|
|
|
Application
|
E-Bike, Scooter, Motorcycle...
|
|
|
Warranty
|
13 Months
|
|
|
Part Included
|
1× Lithium Ion Battery
|
|
|
1× 54.6V 2A Charger
|
||
WHY CHOOSE US ?
HIGHPRODUCTIVITY
10 thousand square meters plant 5 automatic production line 600,000 battery packs and chargers production capacity a month.
STRICK CONTROL & BEST QUALITY
Strict control for cleanliness in dust-free workshop from IQC,IPQC to OQC, we control every step strictly CE, UL, SGS, FCC, ROHS and ISO9001: 2000 certified.
CUSTOMIZATION & FACTORY PRICE
We dedicated and experienced engineering, manufacturing and quality control teams work close to support our customers from product design to mass production.
EXCELLENT SERVICE
Reply within 24 working hours. We use specialized equipment, well-known suppliers of materials to resolve customer issues, to test every product in 100% for the quality assurance.
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A.Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
