ISO9001 48V 2400Wh Golf Cart Lithium Battery
MaxLi Rack mount 48V 50Ah Lithium Ion Golf Cart Batteries ESS solar storage system

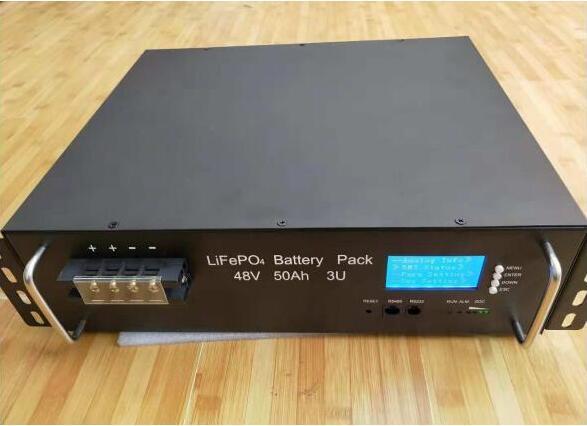

Reference photo of battery
Specification of Golf cart battery
|
Electrical Characteristics |
Nominal Voltage | 48V |
| Nominal Capacity | 50Ah | |
| Energy | 2400Wh | |
| Internal Resistance | ≤ 50mΩ | |
| Cycle Life | ＞3000cycles @1.0C rate | |
| Months Self Discharge | ＜3% | |
| Efficiency of Charge | 100% @0.2C | |
| Efficiency of Discharge | 96-99% @0.5C | |
|
Standard Charge |
Charge Voltage | 54.8±0. 1V |
| Charge Mode | 0.2C to 57.6V,then 57.6V,charge current to m0.02C(CC/CV) | |
| Charge Current | 25A | |
| Max. Charge Current | 50A | |
| Charge Cut-off Voltage | 58.5V±0. 1V | |
|
Standard Discharge |
Continuous Current | 50A |
| Max continuous discharge current | 150A | |
| Discharge Cut-off Voltage | 37.5V | |
|
Environmental |
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| Water Dust Resistance | IP56 | |
|
Mechanical |
Cell & Method | 32700 6Ah 15S 9 P |
| Shell material | Iron(SPCC) | |
| Dimensions (in./mm.) | 412 x 438 x 135 | |
| Weight (lbs./kg.) | Approx:31Kg | |
| Gravimetric specific energy | 85WH/KG | |
| Protocol (optional) | RS485/RS232 | |
| SOC (optional) | LED |
Main applications of LifePO4 battery pack
1. RV,Camping car and yacht
2. E-tool: electric drill, electric saw, lawn mower and so on
3. Large-scale electric vehicles: electric bus, electric car, E-Tour Car
4. Remote control cars, electric boat, aircraft, toys
5. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair
6. Solar and wind power generation energy storage devices,solar systems,Telecom base Station
7. Small medical equipment and portable equipment
8. Solar enegery lights,bicycle lights,LED lights,bright flashlight,solar street lights
LiFePO4 Battery Features
1. Safe - fire resistance
2. Long cycle life - 95% DOD cycle Over 3000 times
3. Excellent high temperature performance - can work well under 60 ° C operating environment
4. High energy density - lighter and smaller
5. Maintenance-free type.
6. No contamination
Our Service
1.Customized battery voltage and capacity,12V-72V,3AH-1000AH
2.Customized battery case,plastic case,PVC,metal case
3.Customized BMS
4.Delivery support,we can use your own cooperate forwarder or if you do not have cooperate forwarder,we can use our cooperate forwarder.
5. Provide local service and training.
Also support drop ship from MaxLi Battery to end customer.
Package & Shippment
Packing Details: Export carton packaging; Lined with plastic bag; Placed inside the wooden case.
Delivery Time: We are responsible for shipping goods to delivery port on time.
PLEASE NOTE: RTS products are provided with Door to Door delivery by official UPS, import tariff not included in shipping cost.
