18Ah 12V Lithium Battery
18Ah 12V Lithium Battery

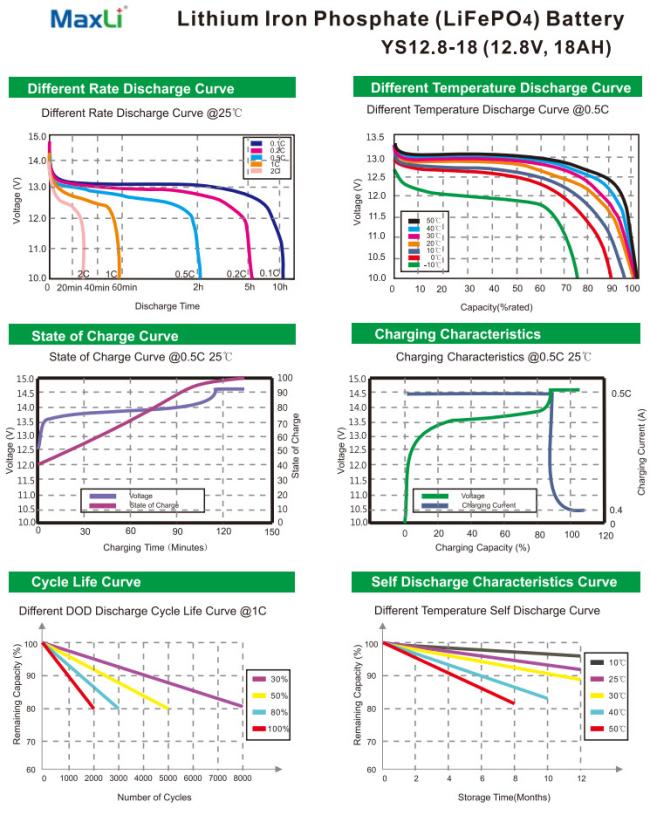

MaxLi 12.8V18AH LiFePO4 battery for Golf Trolley data sheet:
MaxLi Batteries are much lighter and charge fast, about 40% of the weight of a comparable lead acid battery. Delivers twice power of lead acid battery,even high discharge rate,while maintaining high energy capacity.Your RV or boat will likely have a compatible battery charger built in that is ready to use with MaxLi Batteries. Whether you are on the road, on the water or off the grid, MaxLi Battery offers a solution that outperforms the competition.
- The golf trolley battery universal lithium battery has been designed to be compatible with the vast majority of electric trolleys in the market.
- This is an excellent alternative if you are looking to upgrade from a Lead Acid battery to a Lithium.
- It is very lightweight and comes supplied with a special charger. An Anderson connector is also available as an optional extra.
| Model No. | Golf trolley 1-BT |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 18Ah |
| Watt-Hour | 230Wh |
|
Dimensions Length Width Height |
168mm 128mm 76mm |
| Weight | 2.5Kg |
| Internal Resistance | ≤50mΩ @ 50% SOC |
| Recommended Charge Current | 3A |
| BMS Maximum Charge Current | 5A |
| Charge Cut-off Voltage | 14.6V |
| BMS Maximum Continuous Discharge Current | 20A |
| Peak Discharge Current | 40A (<3S) |
| Discharge Cut-off Voltage | 10.0V |
| Expected Cycle Life | ≥3000 cycles at 0.2C/0.2C, 80% DoD |
| Self Discharge | <3% per month |
| Cell Type | Cylindrical |
|
Operating Temperature Charge Discharge Storage |
0 - +55°C -20 - +60°C -5 - +35°C |
| Humidity | RH≤85% |
| Case Material | ABS |
| Terminal | Lotus Plug(charge) T-Anderson connectors(discharge) |
| Communication Interface |
Production Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Grid Casting Machine | Confidential | 20 | 2.0 | Acceptable |
| Powdering Production Line | Confidential | 3 | 2.0 | Acceptable |
| Grid Pasting Production Line | Confidential | 4 | 3.0 | Acceptable |
| Drying Room | Confidential | 35 | 2.0 | Acceptable |
| Assembling Production Line | Confidential | 36 | 0.0 | Acceptable |
| Four-station Casting and Welding Machine | Confidential | 4 | 2.0 | Acceptable |
| Heat-sealing Machine | Confidential | 8 | 2.0 | Acceptable |
| Airtight Detection Machine | Confidential | 8 | 2.0 | Acceptable |
| H2SO4 Filling Machine | Confidential | 25 | 3.0 | Acceptable |
| Energy Charging Machine | Confidential | 10 | 3.0 |
Acceptable |
Testing Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Multifunction Testing Machine | Confidential | 20 | 2.0 | Acceptable |
| Large Current Detector | Confidential | 4 | 2.0 | Acceptable |
| High Temperature Test Box | Confidential | 2 | 2.0 | Acceptable |
| Low Temperature Test Box | Confidential | 2 | 2.0 | Acceptable |
| High Low Temperature Test Box | Confidential | 2 | 2.0 | Acceptable |
| Materials Analysis Machine | Confidential | 1 | 2.0 | Acceptable |
| Atomic Absorption Spectrophotometer | Confidential | 1 | 2.0 | Acceptable |
| Micro-computer Compression Tester | Confidential | 1 | 2.0 | Acceptable |
| Bursting Strength Tester | Confidential | 1 | 2.0 | Acceptable |
