32700 Cell 12V 18Ah Golf Trolley Battery
12V18Ah 32700 Cell Lifepo4 Battery Pack for Golf Trolley with T-Bar
1. Specifications:
| Nominal Voltage | 12.8V |
| Nominal Capacity @ 0.2C | 18Ah |
| Watt-Hour | 230.4Wh |
| Weight | 2.7Kg |
| Internal Resistance | ≤45mΩ @ 50% SOC |
| Recommended Charge Current | 3A |
| BMS Maximum Discharge Current | 25A |
| Discharge Cu-off voltage | 10.0V |
| Charge Cut-off Voltage | 14.6V |
| Expected Cycle Life | 3,000 times |
| Peak Discharge Current | <40A (3S) |
| Operating Temperature | -20℃-+60℃ |
| Housing material | ABS case, T-bag |
| Terminal Type | Lotus plug(charge) T-Anderson connecters(discharge) |
3. STORAGE & TRANSPORTAION
- Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
- Battery should be stayed in the ware house -20℃~35℃ where it’s dry, clean, shade, and well-ventilated.
- The battery should be stored in 50% SOC during transportation.
- The battery need to be charged every 6 months if out of use.
- Keep the battery against dropping, turning over and serious stacking during loading.
4. WARNING
- Battery must be far away from heat source, high voltage, and no exposed in sunshine for long time.
- Never throw the battery into water or fire;
- Never reverse two electrodes when use the battery;
- Never connect the positive and negative of battery with metal;
- Never knock, throw or trample the battery;
- Never disassemble the battery without manufacturer's permission and guidance.
- Never use mixed with other type of battery;

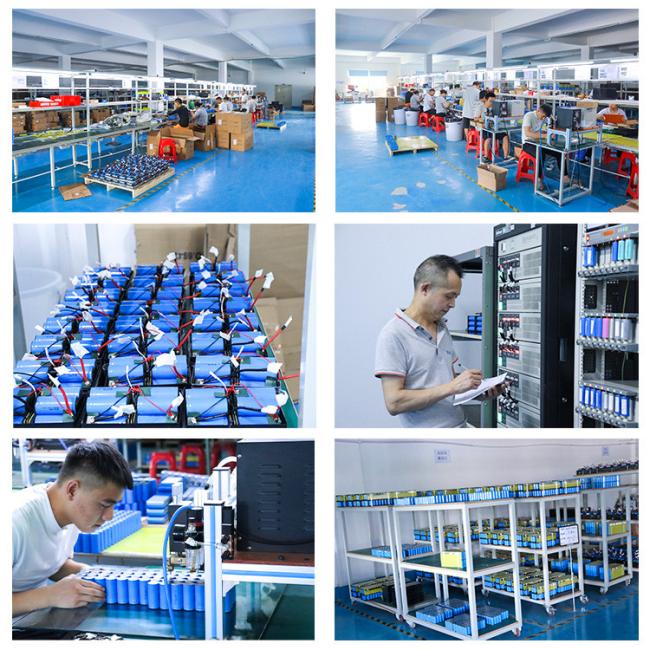

4. Factory Pictures
5. FAQ
Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Customized is available.
Q: What about the lead time?
A: Sample needs around 15 days, mass production time needs negotiation.
Q: How do you ship the goods and how long does it take to arrive?
A: Airline and sea shipping are optional.
Q: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q: Is it ok to print my logo on product?
A: Yes, Logo print in battery shell.
Q: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us
in your email so that we’ll regard your inquiry priority.
