3000 Cycles 12V 150Ah Lifepo4 Battery Pack Home Storage Application
Bluetooth Rechargeable battery12V 150Ah Lifepo4 Deep Cycle Battery Pack RV/Marine/Golf Cart
1. SPECIFICATIONS
Period of Warranty
The period of warranty is 36 months from the date of shipment. MAXLI guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
LIFECYCLES (BATTERY LIFESPAN)
Up to 100% capacity for 3,000 cycles in recommended conditions. The typical SLA has 400 cycles. MaxLi Lithium batteries last so long that the price per use is a fraction of traditional batteries.
Smart Built-in BMS
passive balancing(active balance optional), low voltage cutoff, high voltage cutoff, short circuit protection and temperature protection for increased performance and longer life. Besies, Bluetooth function for option that enables to monitor battery status, such as, voltage, capacity and so on.
|
Nominal Voltage |
12.8V |
|
Nominal Capacity |
150Ah |
|
Watt-Hour |
2560Wh |
|
Dimensions |
485x172x240mm |
|
Weight |
20KG |
|
Internal Resistance |
≤40mΩ @ 50% SOC |
|
Recommended Charge Current |
40A |
|
BMS Maximum Continuous Discharge Curren |
150A |
|
Peak Discharge Current |
300A(2S) |
|
Discharge Cut-off Voltage |
10.0V |
|
Expected Cycle Life |
3,000 cycle @ 100%DOD,1C at 25℃ |
|
Self Discharge |
<3% per month |
|
Cell Type |
Cylindrical cell |
|
Operating Temperature Charge Discharge Storage |
0 - +55°C -20 - +60°C -5 - +35°C |
|
Housing Material |
RH≤85% |
|
Housing Material |
ABS(IP56) |
|
Terminal Type |
M8 |
| Communication | Blueooth for option |
3.STANDARD CHARGE/DISCHARGE
Standard Charge : 0.2C
Charging shall consist of charging at a 0.2C constant current rate until the battery reaches 14.6V. The battery shall then be charged at constant voltage of 14.6 volts while tapering the charge current. Charging shall be terminated when the charging current has tapered to 0.05CA. Charge time: Approx 7.0h, The battery shall demonstrate no permanent degradation when charged between 0 ºC and 45 ºC.
Standard Discharge : 0.2C
Battery shall be discharged at a constant current of 0.2C to 10V @ 20º ± 5C
If no otherwise specified, the rest time between charging and discharging is 30min.
2. PERFORMANCE AND TEST CONDITIONS
Performance And Test Conditions
Test should be conducted with new batteries within one week after shipment from our factory and the batteries shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.
4.MAIN APPLICATION
Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
Back-up System and UPS:Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment.
Other Applications:Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.

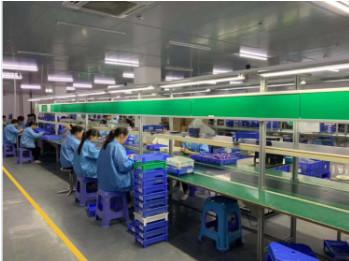

4.FACTORY
