26650 12V 100Ah Heatproof Lithium Lifepo4 Battery For Camp Car
Specification
|
Item Name
|
12V 100AH Lithium Battery BMS
|
|
Nominal Voltage
|
12.8V
|
|
Nominal Capacity
|
100Ah
|
|
Energy
|
1280Wh
|
|
Cycle Life
|
>2000 cycles @1C 100%DOD
|
|
Charge Voltage
|
14.4±0.1V
|
|
Charge Mode
|
0.2C to 14.4V, then 14.4V,charge current to 0. 02C (CC/CV)
|
|
Charge Current
|
50A
|
|
Max Charge Current
|
100A
|
|
Charge Cut-off Voltage
|
14.6V±0.1V
|
|
Continuous Current
|
100A
|
|
Max Pulse Current
|
300A (<2S)
|
|
Discharge Cut-off Voltage
|
10V
|
|
Size
|
328x172x212mm
|
|
Weight
|
13kg
|
|
Charge Temp.
|
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
|
|
Discharge Temp.
|
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
|
|
Storage Temp.(60-80% SOC Storage)
|
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
|
|
Water Dust Resistance
|
IP56
|
|
Communication
|
Bluetooth APP
|

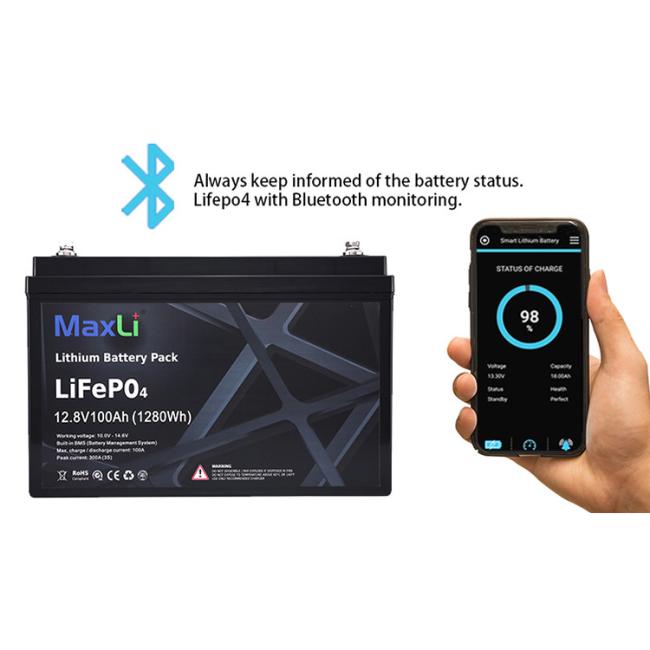

Built-in Bluetooth Monitor
More Competitive Features
Longer Cycle Life: Offers up to 20times longer cycle life and five times longer float /calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.
Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
Higher Power: Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range: -20℃~60℃.
Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
Increased Flexibility: Modular Design enables deployment of up to up to ten battery in parallel.
2).Strong and professional R&D team to support.
3).Offer OEM service for customer's orders.
4).Quick reply,action for long-term cooperation.
5).Competitive price,quality and great pre-sale and after-sales service.
