MaxLi LFP 12V 120Ah 24V 60Ah 48V 30Ah Golf Cart LiFePO4 Lithium battery with CANBUS communicate with Victron
MaxLi Battery Ltd is a Professional Manufacturer of LiFePO4, Lithium Ion, Li-Polymer, Ni-MH Battery Packs and Accessories.
After more than 5 years learning and exploration, we’ve grown to a company with complete R&D team and quality inspection system. We focus on battery solutions for Energy Storage System, Solar Street Lighting, Electric Vehicle, Telecom, Medical and UPS etc…
12V 120Ah battery specificiation:
|
Electrical Characteristics |
|
12.8V |
| Nominal Capacity | 120Ah | |
| Energy | 1536Wh | |
| Internal Resistance | ≤20mΩ | |
| Cycle Life | >2000 cycles @1C 100%DOD | |
| Months Self Discharge | <3% | |
|
Efficiency of Charge
|
100% @0.5C | |
|
Efficiency of Discharge
|
96~99% @1C | |
|
Standard Charge |
Charge votlage | 14.4±0.2V |
| Charge mode | 0.2C to 14.4V, then 14.4V,charge current to 0. 02C (CC/CV) | |
|
Recommend charge current |
50A | |
| Max charge current | 100A | |
| 14.6V±0.1V | ||
|
Standard Discharge |
Continuous Current | 100A |
| Max. Pulse Current | 300A(<2s) | |
|
Discharge cut off voltage
|
10V | |
|
Environmental |
Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
| Charge Temperature | 0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
| Water Dust Resistance | IP56 | |
|
Mechanical |
Cell & Method | 32700 6000mAh 4S17P |
| Plastic Case | ABS | |
| Dimensions (mm./in.) | 330*173*217mm (13.0"*6.81"*8.54") | |
| Weight (kg./lbs.) | 12.5kg (28.85lbs) | |
| Terminal | M8 | |
| Communication | Bluetooth APP(optional) |
Main Applications:
1.Back-up System and UPS:Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.ApplicationsApplications:
Applications:
2.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
3.Other Applications:Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.

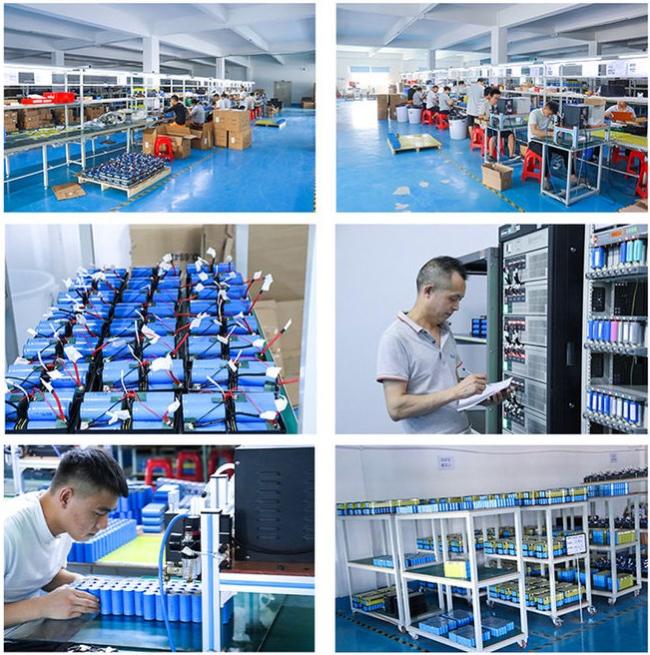

Our Production line:
Our Exhibtion
Our package
Our Service
1. Fast delivery service.
2. Quick response to your any inquiry within 12 hours.
3. We offer 3 years' warranty on our LiFePO4 battery.
4. Customized design is available, OEM and ODM are welcome.
5. Offer the highest quality with the best price.
6. Professional pre-sales service with whole-hearted after-sales service.
