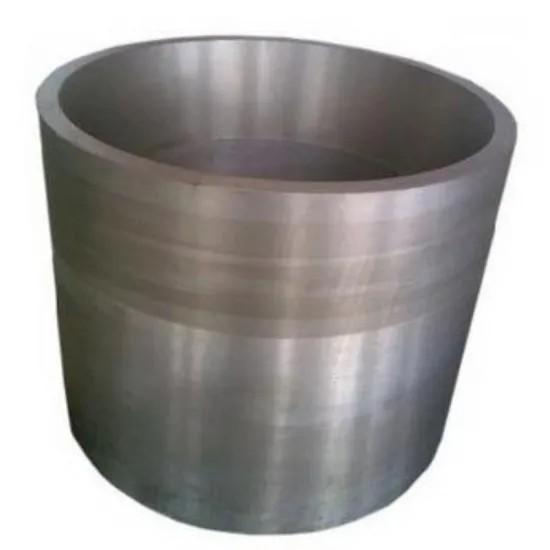

ISO Certified AISI4140 42CrMo4 Polishing Forged Steel Turbine Cylinder Sleeve
|
|
 |
ISO Certified SS630 AISI4140 42CrMo4V Polished Forging Steel Sleeve
1- Company forfiles
We are the leading manufacturer of heavy forging steel parts, our business is custom fabrication forging by customer's drawings and technical requirement. We are the member of " Confederation of Chinese Metal forming Industry".Our main products including forged steel shafts, forging steel ring, forging steel sleeves. steel spur gears.
2- Standard: DIN, ASTM, ASME, AISI, EN, JIS, GB/T
3- Main Product: Shaft, Step Shaft, Gear & Gear Shaft, Flange, Pipe Fitting, Bearing, and others.
4- Manufacturing Process
| Forging | a- Open die forging (product range: Max length 16000mm; Max weight 35 Mt) b- Ring forging (product range: Max OD 4000mm; Max height 500mm; Max weight 4Mt) |
|---|---|
| Heat Treatment | Normalizing, Tempering, Annealing, Q + T (Quenching and Tempering) |
| Machining | Pre-machining, Finish machining |
| Surface Finishing | Sand blasting, Coating, Painting |
5- Raw Material:
Alloy steel, Carbon steel, Stainless steel, Steel ingot, Round steel bar
| Note: The material listed below is only part of usually used material, the other material and special requirement from Customer is accepted. | |
| Wind Turbine Shaft | 42CrMo4V, 34CrNiMo6 |
| Wind Tower Flange | S355NL, C22, 16Mn, 20Mn, 42CrMo, F304 |
| Shaft Forgings | 25CrMo4, 42CrMo4, 40CrNiMo, 34CrNi3Mo, 25Cr2Ni4MoV, 18CrNiMo5, 30CrMo, 4130, 4140. |
| Gear Forgings | 35CrMo, 34CrMo4, 4137, 42CrMo, 4140, SCM440, 20CrMnMo, 40CrNiMo, 20CrNi2Mo, 20Cr2Ni4A, 34CrNi3Mo. |
| Marine Forgings | 20Mn, 50Mn, C45, 42CrMo, 20MnMo, CK45, 34CrNi1Mo |
| Pressure Vessel Forgings | SA105, SA350 LF2, 16Mn, 20MnMo, 15MnMo, 12Cr2Mo1, 14Cr1Mo, F304, F316, 17-4PH |
| Forged Pipe Fittings | SA106 CL B, SA106 CL C, WB36, 12Cr1MoV, SA335 P11, P12, P22, P91, SA182 Gr.F1, Gr.F5, Gr.F11 CL2, Gr.F12 CL2, Gr.F22 CL3, SA350 Gr.LF1, Gr.LF2, Gr.LF3 |
6- Main customers: GE, ABB, SANY, BOSCH, Shanghai Electric
7- Main Foreign Market: USA, Australia, Germany, Sweden, Turkey, Brazil, South Africa.
Process procedure:
Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting → Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace (blank inspection) → Machining → Inspection(UT,MT,Visal diamention, hardness) → QT→ Inspection(UT, mechanical properties, hardness, grain size) → Finish machining→ Inspection (dimension) → Packing and Marking(steel stamp, mark) → Storage Shipment
Advantage:
1.High-precision dimensional tolerance;
2.Excellent mechanical properties;
3.Produce different dimension based on customer’s requirements;
4.Advanced manufacture equipment and inspection devices;
5.Excellent technical personality;
6.Control the production procedure strictly;
7.Pay attention on the package protection;
8.Quality full service.
Packing and Delivery
