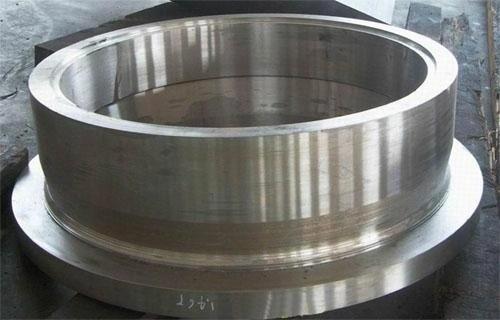

S355 St52 Finished Maching OD4000mm Forging Gear Blank
|
|
 |
Die Forging S355 St52 Finish Maching OD 4000mm Forging Steel Gear Blanks
We are specialized in manufacturing different type of large mechanical products according to engineer drawings.
The products include gears, pinions, sprockets, shafts, wheels, rollers, couplings, pulleys, housings ,frames, molds, nonstandard machinery parts, wear resistant parts and structural components.
Gear transmission refers to the device that transmits motion and power from the gear pair. It is the most widely used mechanical transmission method in modern equipment. Its transmission is more accurate, high efficiency, compact structure, reliable operation and long service life.Our gears can be heat treated, hardened, oil immersed according to customer needs.The gear is widely used in industry, vehicle, power tools, motor, bicycle, electrombile.
1. Standard: JIS ANSI DIN EN GB
2. Processing: Raw material inspection stock cuttingheatforgingHeat treatment (Normalizing+ tempering) Inspectionrough machiningUT 2ND Heat treatmentfinishing machiningInspectionpackaging
3. Material: Stainless steel, carbon steel and alloy steel
4. Weight: 500kg to 50000kg
5. Forged process: Hot forged N or Q+T
6. Tolerance: +/-0.1mm
7. Min order: 1 PCS
8. Payment Terms: T/T or L/C
9. Delivery time: 1 PCS(normal size) needs 30 days
10. Certificate: ISO9001: 2008, PED, SGS.
11. Application: Mechanical engineering mechanical part
| Item | Process |
Facility
|
Inspection items | Standard |
01 |
Steel material inspection |
Chemical composition (EF+LF+VD) |
Material standard | |
| surface | Ingot inspection specification |
|||
| Ingot type and weight | Material standard | |||
| 02 | Material store |
Division put | warehouse management | |
| 1 | Heat | Heat furnace | Temperature/Time | Heating process specification Forging production procedure |
| 2 ↓ |
Forging | Press | Reduction ratio,forging temperature,deformation, Surface and dimensions |
Forging process card Forging procedure |
| 3 ↓ |
Heat treatment | heat treatment furnace |
heat treatment charts | 1st heat-treatment card Forging procedure |
| 4 ↓ |
Rough inspection |
Dimensions, apperance, Mark |
Inspection specification Forging procedure |
|
| 5 ↓ |
Rough UT | UT equipment | Single defect, concentrated Defects bottom wave attenuation |
UT standard or customer's technical requirements |
| 6 ↓ |
Saw cutting | Saw machine | Dimension | IQC and forging |
| 7 ↓ |
rough turning | turning-lathe | Dimension,appearance | Rough machining drawing |
| 8 ↓ |
UT | UT equipment | Single defect, concentrated defects bottom wave attenuation |
UT standard or customer's technical requirements |
| 9 ↓ |
Q+T heat treatment |
heat treatment furnace |
heat treatment charts | Heating process specification |
| 10 ↓ |
Sampling or machining | machining tool | rough machining drawing sampling drawing |
sample machining drawing |
| 11 ↓ |
mechanical property test |
tensile testing machine/ impact testing machine |
ambient temperature,humidity, Test temp.Sample dimension, test method |
Standard technical specification |
| 12 ↓ |
finish machining |
machining tool |
Dimension,appearance | finish machining drawing |
| 13 ↓ |
UT | UT equipment | Single defect, concentrated Defects bottom wave attenuation |
UT standard or customer's technical requirements |
| 14 ↓ |
MT | MT equipment | Magnetic particle indication |
Test standard or Technical requirements |
| 15 ↓ |
Mark | Steel seal | marking content | Product standard Technical requirements Forging process |
| 16 ↓ |
Final inspection |
Appearance, dimension, mark acceptance inspection |
Product inspection specification Product standard P.O. |
|
| 17 | Protection/ package |
Blasting Blasting equipment |
appearance coating thickness |
Product standard Technical requirements |
