Forging 1045 high quality Metal Stamping Sleeve Used In Pump Shaft
Hot Forging SAE 1045 UT Testing Metal Stamping Blank
Specifications
Option: 1045, C45, 39NiCrMo3, 40CrNiMoA, SAE4340, 36Mn5
Surface: Machining, Bright surface
OEM
FORGING THE FUTURE, WE DO THE BEST
OUR COMMITMENT: COMPETITIVE PRICE, HIGH QUALITY AND GOOD SEVICE
High quality rotary forged CRANKshaft:
Specification:
1: Processing high quality steel wheel blank
2: Materials: C45, 39NiCrMo3, 40CrNiMoA, SAE 4320, 36Mn5
3: Measurement: Max outside dia: 3200, weight: 30 tons.
Detail description:
1: Name: Gear shaft
2: Proces: Heat forging
3: Certificates: ISO9001-2000, SGS
4: Products ability: Max length: 1--16m, Max OD: 3m
5: Surface: Polishing or per costomer's requirement
Products range:
Die Forging, Main Shaft, Wind Power Shaft, Stabilizer, Flange, Coupling, BOP Body, Tube Plate, Roller Forging, Roller Shell, Ring Forging, Gears, Gear Blank, Gear Shaft, Gear Wheel.
| Item | Process |

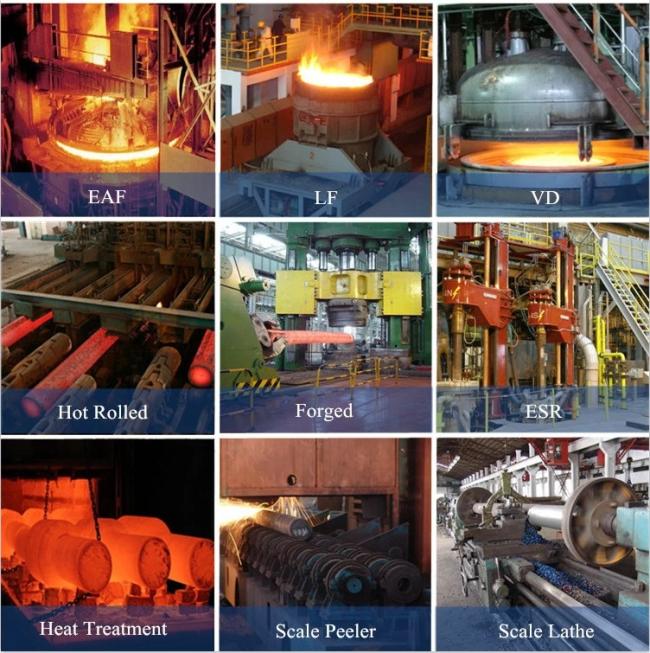

Facility
|
Inspection items | Standard |
|---|---|---|---|---|
01 |
Steel material inspection |
Chemical composition (EF+LF+VD) |
Material standard | |
| surface | Ingot inspection specification |
|||
| Ingot type and weight | Material standard | |||
| 02 | Material store |
Division put | warehouse management | |
| 1 | Heat | Heat furnace | Temperature/Time | Heating process specification Forging production procedure |
| 2 ↓ |
Forging | Press | Reduction ratio,forging temperature,deformation, Surface and dimensions |
Forging process card Forging procedure |
| 3 ↓ |
Heat treatment | heat treatment furnace |
heat treatment charts | 1st heat-treatment card Forging procedure |
| 4 ↓ |
Rough inspection |
Dimensions, apperance, Mark |
Inspection specification Forging procedure |
|
| 5 ↓ |
Rough UT | UT equipment | Single defect, concentrated Defects bottom wave attenuation |
UT standard or customer's technical requirements |
| 6 ↓ |
Saw cutting | Saw machine | Dimension | IQC and forging |
| 7 ↓ |
rough turning | turning-lathe | Dimension,appearance | Rough machining drawing |
| 8 ↓ |
UT | UT equipment | Single defect, concentrated defects bottom wave attenuation |
UT standard or customer's technical requirements |
| 9 ↓ |
Q+T heat treatment |
heat treatment furnace |
heat treatment charts | Heating process specification |
| 10 ↓ |
Sampling or machining | machining tool | rough machining drawing sampling drawing |
sample machining drawing |
| 11 ↓ |
mechanical property test |
tensile testing machine/ impact testing machine |
ambient temperature,humidity, Test temp.Sample dimension, test method |
Standard technical specification |
| 12 ↓ |
finish machining |
machining tool |
Dimension,appearance | finish machining drawing |
| 13 ↓ |
UT | UT equipment | Single defect, concentrated Defects bottom wave attenuation |
UT standard or customer's technical requirements |
| 14 ↓ |
MT | MT equipment | Magnetic particle indication |
Test standard or Technical requirements |
| 15 ↓ |
Mark | Steel seal | marking content | Product standard Technical requirements Forging process |
| 16 ↓ |
Final inspection |
Appearance, dimension, mark acceptance inspection |
Product inspection specification Product standard P.O. |
|
| 17 | Protection/ package |
Blasting Blasting equipment |
appearance coating thickness |
Product standard Technical requirements |
