SS416 Stainless Steel Forged Rings With Milling Surface OD300mm
|
|
 |
Name: Forging S316 ss410 Steel Retaining Ring Forging with Milling Surface
Reference
Forged or hydraulic steel roller ring or steel bearing ring
Specifications
1: Processing high quality gear
2: Materials: C45, 39NiCrMo3, 40CrNiMoA, SAE 4320, 36Mn5
3: Measurement: Max outside dia: 3200, weight: 30 tons.
Detail description:
1: Name: Gear shaft
2: Proces: Heat forging
3: Certificates: ISO9001-2000, SGS
4: Products ability: Max length: 1--16m, Max OD: 3m
5: Surface: Polishing or per costomer's requirement
Products range:
Die Forging, Main Shaft, Wind Power Shaft, Stabilizer, Flange, Coupling, BOP Body, Tube Plate, Roller Forging, Roller Shell, Ring Forging, Gears, Gear Blank, Gear Shaft, Gear Wheel.
| Material | 1045,4140, 16Mn,304,316L,20MnMo,20MnMo |

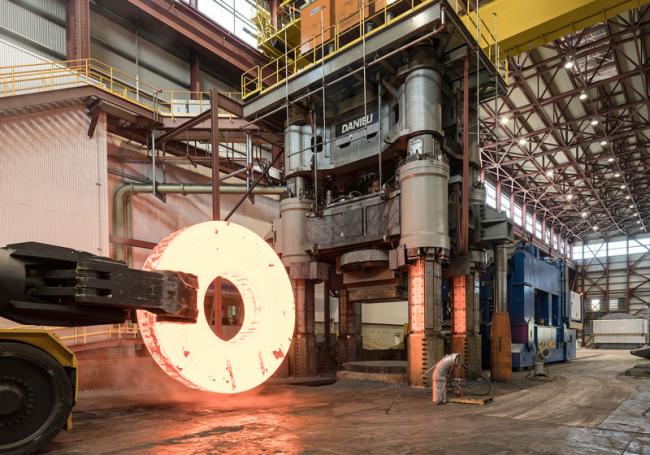

| Equipment | 3150T Open die hydro press |
| Apply | pressure vessel tube plate |
| Melting process | LF+EF+VD |
| Production process | Foring+heat treatment+rough machine+finish machine |
| Ratio | ≥3 |
| Applicable certificate | ASTM,ASME,DIN,JIS,ISO,BS,API,EN |
| Executive standard | JB/GB/EN/DIN/JIS/ASME/ASTM/ISO |
| Cerfificate Authority | ISO,BV,SGS, IST, UL,CTI |
| Deliver condition | Rough machine(N+T);finish machine(Q+T) |
| Inspection equipment | Spectrograph,UT device,tensile and impact test machine,metalloscope,hardness test device |
| Service | Our service included the forging, process, heat treatment, finish machining, package, local logistics, customers clearance and maritime transport. We took the customer’s requirements as the principal thing, and pay attention on the products quality. |
Custom property
| Elemnets | C | Si | Mn | P | S | Cr | Ni | Mo | Nb |
| 16MNnD | 0.13-0.20 | 0.17-0.37 | 1.20-1.60 | ≤0.030 | ≤0.030 | ≤0.30 | ≤0.30 | -- | |
| 20MnMoNb | 0.16-0.23 | 0.17-0.37 | 1.20-1.50 | ≤0.035 | ≤0.035 | -- | -- | 0.45-0.60 | 0.020-0.045 |
| 304L | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | - | |
| 316L | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 |
|
Mechanical property |
Dia.(mm) |
TS/Rm(Mpa) |
YS/Rp0.2(Mpa) |
EL/A5(%) |
RA/Z(%) |
Type Of notch |
Impact energy |
HBW |
| 16MnD | Ø15 | 470-630 | ≥345 | ≥21 | -- | V | -20℃≥34 | ＝＝ |
| 20MnMoNb | Ø15 | ≥635 | ≥490 | ≥15 | U | 37 | 187-229 | |
| 304L | Ø15 | ≥520 | ≥205 | ≥40 | -- | ≤187HBS | ||
| 316L | Ø15 | ≥485 | ≥170 | ≥30 | ≥40 | ≤187HBS |
Process procedure:
Forging process flow quality control: Raw material steel ingot into warehouse(test the chemical content) → Cutting→ Heating(Furnace temperture test) → Heat treatment after forging(Furnace temperture test) Discharge the furnace(blank inspection)→ Machining→ Inspection(UT,MT,Visal diamention, hardness)→ QT→ Inspection(UT, mechanical properties, hardness, grain size)→ Finish machining→ Inspection (dimension)→ Packing and Marking(steel stamp, mark)→ Storage Shipment
Advantage:
1.High-precision dimensional tolerance;
2.Excellent mechanical properties;
3.Produce different dimension based on customer’s requirements;
4.Advanced manufacture equipment and inspection devices;
5.Excellent technical personality;
6.Control the production procedure strictly;
7.Pay attention on the package protection;
8.Quality full service.
Packing and delivery
