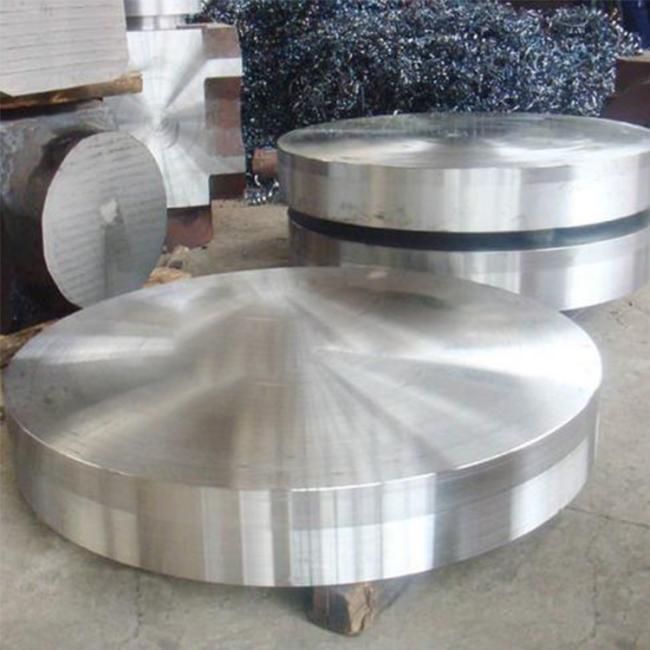

Industrial Round Metal Forged Disc Rough Machined OD1500mm
|
|
 |
 |
Special Quality Precision Machining D1600mm Forging Steel Round Metal Disc
Company profile
We could produce : forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on. The manufacturing equipment is 185MN or 100MN hydraulic press, the forging ratio >4.5, the technical condition is in accordance with the standard of ASTM, EN, DIN, ASME or GB etc.
The product can be provided as per your drawing or specified requirements.
Descriptions
1. Product Name:Forged Disc or Blind Flange
2. Raw Material:Carbon steel,Alloy steel and Stainless Steel
3.Max OD:2500mm
4.Max Weigh:12T
* The products could be manufactured according to your request.
| Quality | We can offer the certifications of chemical composition and mechanical property |
|---|---|
| Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Surface | Bright, Polished, Turn smooth(Peeled), Brush, Mill, Pickled, Black, Mill Surface, etc. |
| Trade Term | FOB CIF CFR CNF EX-WORK |
| Application | Foodstuff, Gas, metallurgy, biology, electron, chemical, petroleum, boiler, nuclear energy, Medical equipment, fertilizer etc |
| Package | Standard export sea-worthy packing or customized |
| Lead Time | 3-15 days after deposit |
| Payment | TT/LC |
| Sample |
we could offer the sample for free charge but do not pay the cost of freight. |
| Package | Export standard package, bundled or be required. The inner size of container is below: 20ft GP: 5.9m(length) x 2.13m(width) x 2.18m(high)about 24-26CBM 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM |
Standard:
ASTM, ASME, DIN, AISI, JIS and EN;
Certification:
ISO 9001:2008, PED Certificate, API
Delivery Status:
N(Normalizing),
N+T (Normalizing + Tempering),
Q+T (Quenching + Tempering);
The main manufacturing equipments:
| Name&Description | Capacity | Quantity |
| 3600Thydraulic press | Max. single forging in 18T | 1 |
| 2000T hydraulic press | Max. single forging in 9T | 2 |
| 800 hydraulic press | Max. single forging in 5T | 1 |
| 6T electrical hydraulic hammer | Max.single forging in 5T | 1 |
| 3T electrical hydraulic hammer | Max.single forging in3T | 1 |
| Air hammer | Max.single forging from250kg to 1000kg | 7 |
| Forging operation machine | Max.singe forging from20T-5T | 7 |
| Heat treatment Furance | Max.8000*5000*1500mm | 11 |
| CNC driling machine | Max.5000mm | 2 |
| Vertical lathe | From 1600 to 5000mm | 60 |
| Horizontal lathe | Max.5000mm | 70 |
| Band sawing machine | 260-1300mm |
36 |
Technical Support
We are professional at independent development and design. Our engineers are skilled at AUTO CAD, PRO ENGINEER, SOLID WORKS and other 2D & 3D softwares. We are able to design, develop,produce and deliver your PO according to your drawings, samples or just an idea. Dural control of standard products and OEM products.
Quality Control
1) Checking the raw material after they reach our factory------- Incoming quality control ( IQC)
2) Checking the details before the production line operated
3) Have full inspection and routing inspection during mass production---In process quality control(IPQC)
4) Checking the goods after they are finished---- Final quality control(FQC)
5) Checking the goods after they are finished-----Outgoing quality control(OQC)
