Professional Material Lifting Equipment Walkie Full Electric Stacker 1500kg 2000kg Electric Lifting Workshop Trolley

Name: Professional Material Lifting Equipment Walkie Full Electric Stacker 1500kg 2000kg Electric Lifting Workshop Trolley
Brand: Taizhou Kayond Machinery Co.,Ltd

Price Negotiable

Price: To be negotiated

MOQ: 1unit

Delivery Time: 7work days

Brand: KAD

Product Description

Professional material lifting equipment walkie full electric stacker 1500kg 2000kg electric lifting workshop trolley

Product Description

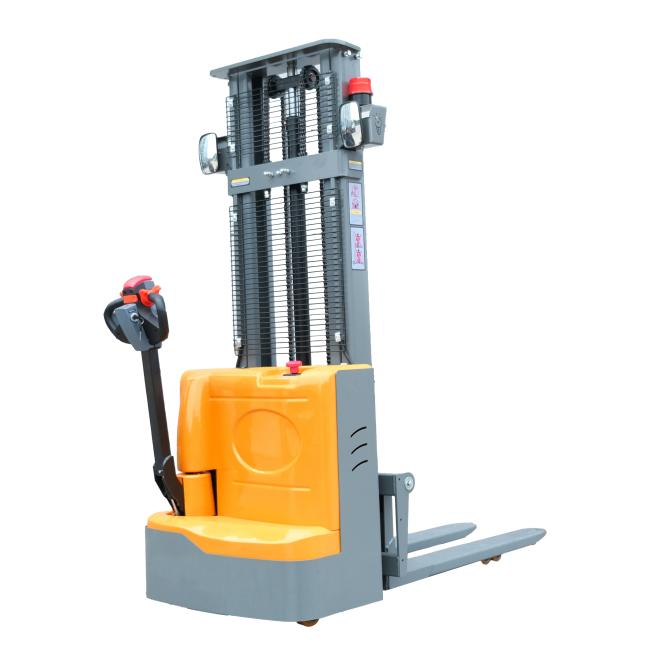

Electric Walkie Stacker Product Description

This is an efficient and convenient electric walkie talkie stacker designed specifically for the warehousing and logistics industry. By utilizing advanced electrical technology, it can effortlessly lift and move goods, reducing physical labor. The operation is simple, intuitive to use, and it also has stability and safety, ensuring the integrity of the goods during transportation. Whether in small warehouses or large logistics centers, this electric walkie talkie stacker is your ideal lifting and moving tool.

MODEL				CDDW12 CDDW16
Features	Drive system			Battery
	Driving mode			Walkie
	Load Capacity	Q	KG	1200/1600
	Load Center		MM	500
Weight	Weight(With battery)	CDDW12	KG	470/485/505/520
Weight	Weight(With battery)	CDDW16	KG	495/510/532/553
Wheels	Material			PU
Size	Lifting Height	H3	MM	1600/2000/2500/3000
	Lowest Mast	H1	MM	2080/1580/1830/2080
	Max.Height when operating	H4	MM	2080/2730/3230/3730
	Min.Height of Fork	H13	MM	≤90
	Length	L	MM	1770
	Width	B	MM	850
	Fork Length	L1	MM	1070
	Wheelbase	Y	MM	1250
	Fork Outside Width	B1	MM	680
	Fork Inside Width	B2	MM	305
	Min.Turning Radius	WA	MM	1390
parameter	Driving Speed(Empty/Full Load)		MM/S	5.0/5.0
	Lifting Speed(Empty/Full Load)		MM/S	140/135
	Descending Speed(Empty/Full Load)		MM/S	150/155
	Max.Gradient(Empty/Full Load)		%	7/5
	Brake			Electromagnetic
Motor	Driving Motor		KW	DC/0.75
Motor	Lifting Motor		KW	DC/2.2
Battery	Capacity		V/Ah	2470/2480Ah
Others	Noise level DIN 12053		DB	＜70
