10m double Masts lift hydraulic hydraulic Aerial Working Platform Lift self propelled lift
Price:
$4800-$6000/unit
MOQ:
1unit
Delivery Time:
Negotiable
Brand:
KAD
Product Description
10m double Masts lift hydraulic hydraulic Aerial Working Platform Lift self propelled lift
Product Description
It is mainly used for the installation and maintenance of star hotels, modern factories, business halls, hotels, lobbies, restaurants, stations, exhibition halls, shopping malls and other narrow spaces, and is a good helper for equipment maintenance and paint decoration; it can pass through ordinary doors and elevators easily, with low energy consumption, no pollution, and no damage to the ground.It can be easily pushed to the designated place with beautiful structure, compact body, light weight, safe and reliable.
Specification
| Model | MX580S | MX600SN | MX800SN | MX800S | MX1000S | MX1200S |
| S.W.L | 230kg | 230kg | 230kg | 450kg | 320kg | 320kg |
| S.W.L on Extension | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
| Max.Workers Number | 2 | 2 | 2 | 2 | 2 | 2 |
| Working height max | 7.8m | 8m | 10m | 10m | 12m | 13.8m |
| Platform height max | 5.8m | 6m | 8m | 8m | 10m | 11.8m |
| Overall Length | 1.81m | 2.43m | 2.43m | 2.43m | 2.43m | 2.43m |
| Overall Width | 0.76m | 0.81m | 0.81m | 1.15m | 1.15m | 1.15m |
| Overall Height (Rails Up) | 2.16m | 2.18m | 2.3m | 2.31m | 2.42m | 2.55m |
| Overall Height (Rails Down) | 1.82m | 1.85m | 1.87m | 1.76m | 1.91m | 2.03m |
| Platform size (L*W) | 1.67m*0.74m | 2.27m*0.81m | 2.27m*0.81m | 2.27m*1.12m | 2.27m*1.12m | 2.27m*1.12m |
| Platform extension size | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m | 0.90m |
| Ground Clearance (Stowed) | 0.09m | 0.10m | 0.10m | 0.10m | 0.10m | 0.10m |
| Ground Clearance (Raised) | 0.019m | 0.019m | 0.019m | 0.019m | 0.019m | 0.019m |
| Wheelbase | 1.36m | 1.87m | 1.87m | 1.87m | 1.87m | 1.87m |
| Turning radius (inside) | 0m | 0m | 0m | 0m | 0m | 0m |
| Turning radius (outside) | 1.64m | 2.10m | 2.10m | 2.20m | 2.20m | 2.20m |
| Lift/Drive Motor | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/4.5kw |
| Travel Speed (Stowed) | 3.0km/h | 3.0km/h | 3.0km/h | 3.0km/h | 3.0km/h | 3.0km/h |
| Travel Speed (Raised) | 1km/h | 1km/h | 1km/h | 1km/h | 1km/h | 1km/h |
| Raise/Lower time | 18/22sec | 35/25sec | 40/30sec | 40/30sec | 60/40sec | 70/45sec |
| Power source | 4*6V/210Ah | 4*6V/225Ah | 4*6V/225Ah | 4*6V/225Ah | 4*6V/240Ah | 4*6V/260Ah |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
| Gradeability | 25% | 25% | 25% | 25% | 25% | 25% |
| Maximum Working Slope | 1.5°/3° | 2°/3° | 1.5°/3° | 2°/3° | 2°/3° | 1.5°/3° |
| Tire size | 305*100 | 380*129 | 380*129 | 380*129 | 380*129 | 380*129 |
| Weight | 1400kg | 1945kg | 2100kg | 2175kg | 2468kg | 2830kg |
Main Features
Safety Features of Man pushing Around Aluminum Aerial Work Platform
1.Toe protection boards on the platform
2.Anti-skid deck on the platform
3.Auxiliary Lowering
4.Dual limit switch for safety
5.Operation voltage at 24V
6.Safety belt holding
7.Anti-burst valve on the cylinder
8.Emergency stop button both on platform and ground
9.Short Circuit and leakage protection system for AC version
10.Fuse for DC version for electric shock protection

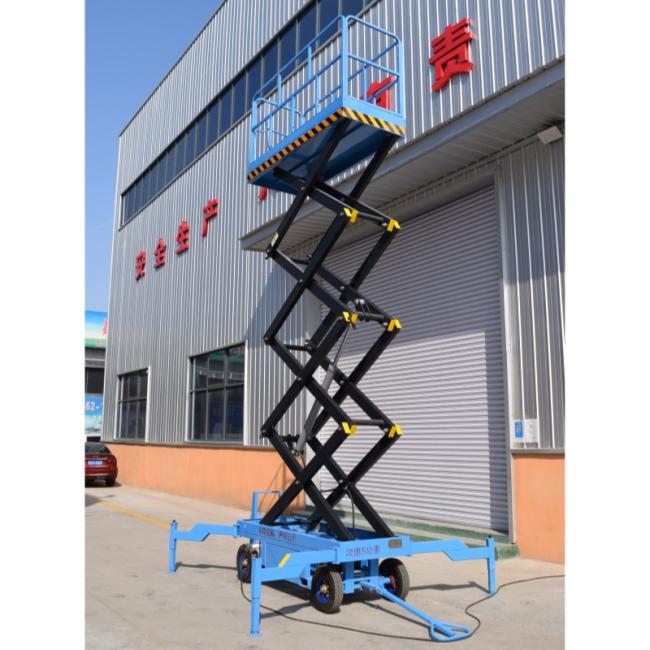

Double scissor lifts are efficient, lightweight, and stable lifting equipment widely used in various fields and scenarios.
Equipment application
Double scissor lifts are suitable for various fields that require lifting operations, such as manufacturing, logistics, construction, etc. Its application scenarios are also very extensive, such as lifting and lowering goods on production lines, loading and unloading goods in warehouses, and floor cleaning on construction sites.
