Frist Class Lifting Equipment Walkie Full Electric Lifting Stacker 1500kg 2000kg

Price Negotiable

Price: To be negotiated

MOQ: 1unit

Delivery Time: 7work days

Brand: KAD

Product Description

Frist Class Lifting Equipment Walkie Full Electric Stacker 1500kg 2000kg Electric Lifting

Product Description

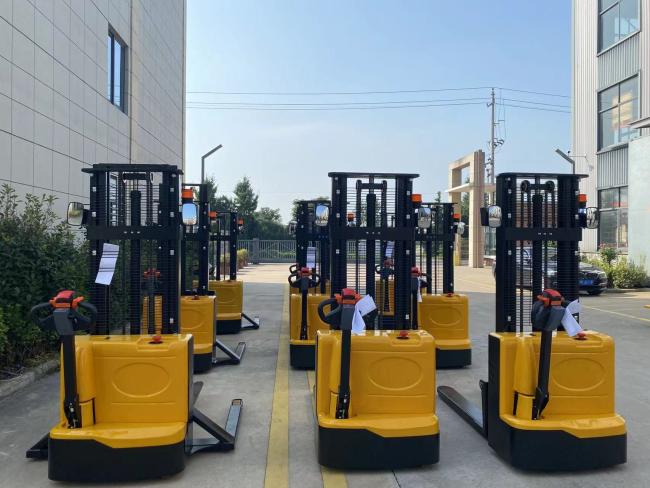

Electric Walkie Stacker Product Description

This electric walkie talkie stacker is an efficient and convenient solution, specially designed for the warehousing and logistics industry.

Equipped with advanced electrical technology, it effortlessly lifts and moves goods, significantly reducing physical labor. The operation is simple and intuitive, making it easy for anyone to use.

Safety and stability are key features of this stacker, ensuring the integrity of goods during transportation. Whether you're working in a small warehouse or a large logistics center, this electric walkie talkie stacker is the ideal tool for lifting and moving items with ease.

MODEL				CDDW12 CDDW16
Features	Drive system			Battery
	Driving mode			Walkie
	Load Capacity	Q	KG	1200/1600
	Load Center		MM	500
Weight	Weight(With battery)	CDDW12	KG	470/485/505/520
Weight	Weight(With battery)	CDDW16	KG	495/510/532/553
Wheels	Material			PU
Size	Lifting Height	H3	MM	1600/2000/2500/3000
	Lowest Mast	H1	MM	2080/1580/1830/2080
	Max.Height when operating	H4	MM	2080/2730/3230/3730
	Min.Height of Fork	H13	MM	≤90
	Length	L	MM	1770
	Width	B	MM	850
	Fork Length	L1	MM	1070
	Wheelbase	Y	MM	1250
	Fork Outside Width	B1	MM	680
	Fork Inside Width	B2	MM	305
	Min.Turning Radius	WA	MM	1390
parameter	Driving Speed(Empty/Full Load)		MM/S	5.0/5.0
	Lifting Speed(Empty/Full Load)		MM/S	140/135
	Descending Speed(Empty/Full Load)		MM/S	150/155
	Max.Gradient(Empty/Full Load)		%	7/5
	Brake			Electromagnetic
Motor	Driving Motor		KW	DC/0.75
Motor	Lifting Motor		KW	DC/2.2
Battery	Capacity		V/Ah	2470/2480Ah
Others	Noise level DIN 12053		DB	＜70
