Load 2.5ton 2500kg 4-wheel electric forklift with clamp full electric big battery

Price Negotiable
Price: $7100-$7300 /unit
MOQ: 1unit
Delivery Time: 15 working days
Brand: KAD
Product Description
Product Description

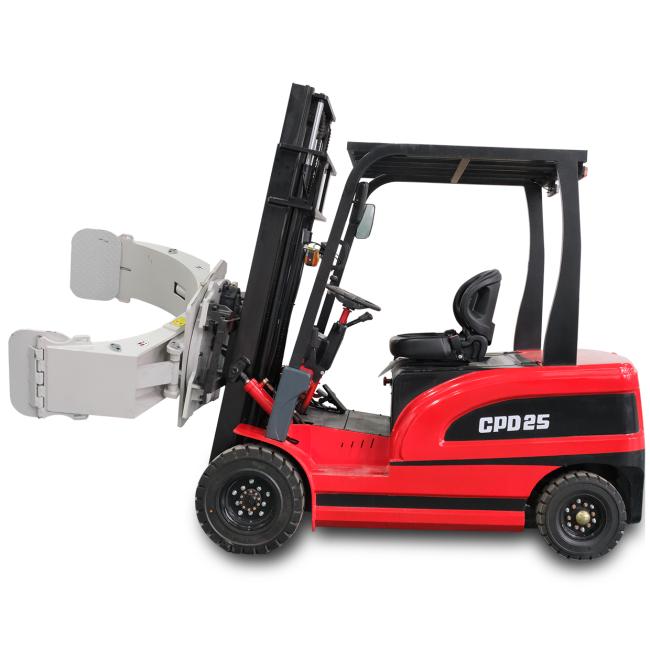

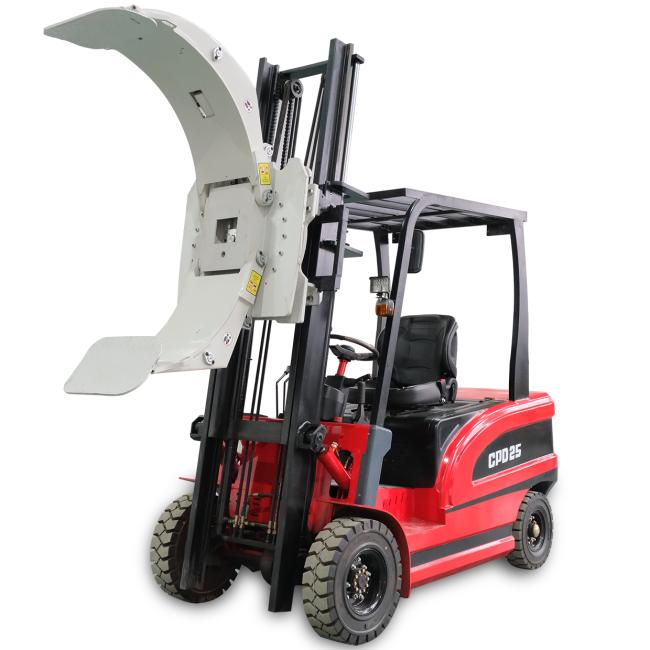

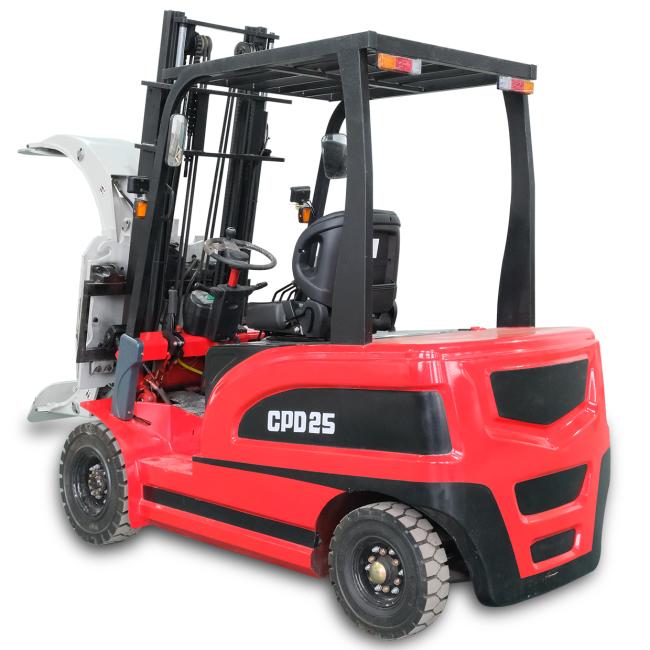

Load 2.5ton 2500kg 4-wheel electric forklift with clamp full electric big battery

The 4-wheel electric forklift truck equipped with a paper roll clamp boasts numerous advantages. It offers exceptional maneuverability and stability, ensuring safe and efficient handling of paper rolls. The electric power source ensures low noise and zero emissions, making it environmentally friendly. The paper roll clamp provides secure and versatile clamping capabilities, enabling the forklift to easily pick up, transport, and stack various sizes of paper rolls. Its compact design and high lifting capacity make it an ideal choice for warehouses, factories, and printing shops, enhancing productivity and reducing labor costs.



Main Features

1.It is suitable for holding goods, rotating, raising and placing.
2.Suitable for cylindrical goods such as paper drum, paper roll, cloth roll, cable, cable, tire, oil drum, wood, etc.
3.It can rotate 180 degrees or 360 degrees electrically.

4.Clamping diameter and lifting height can be designed according to customer's goods and requirements.

5.Thickened fork, thickened load bearing, not easy to deformation, thickened baking paint, not easy to fade.
6.Solid rubber tires, suitable for all kinds of ground, wear - resistant and good shock - absorbing effect.
7.The console is easy to operate and easy to understand.



Specification



Model

CPD1530
CPD2030
CPD3030
Load Capacity
kg
1500
2000
3000
Lifting Height
mm
3000
3000
3000
Load Center
mm
500
500
500
Fork size
mm
1070*100*40
1220*120*60
1220*120*60
Ground Clearance
mm
60/130
80/130
80/130
Tyre Type

solid Tyres
solid Tyres
solid Tyres
Control Way

Steering Wheel
Steering Wheel
Steering Wheel
Speed Regulation Way

Stepless Speed Regulation
Stepless Speed Regulation
Stepless Speed Regulation
Protection Guard Height
mm
2000
2100
2100
Mast Tilt Angle (Front/Rear)
(°)
3.0/6.0
3.0/6.0
3.0/6.0
The Min.Turning Radius
mm
1750
2100
2150
Driving Speed with Full Load
km/h
6
15
15
Maximum Gradient with full load
°
5°/8°
15
15
Battery
V/Ah
48/140
60/280
48/420
Driving Motor
kw
3
5
5
Lifting Motor
kw
3
5
5.5
Tyre Size (Front/ Rear)
mm
400/400
22x7-12/18x7-8
22x7-12/18x7-8
Overall dimensions(L*W*H)
mm
3000*1030*2100
3450*1100*2100
3750*1160*2100
Weight
kg
2200
3000
3800
Reference Working Time
h
4/6
4/6
4/6
Increased height each tonnage
mm
1600/2000/2500/3000/3500
Max height
mm
2100/1600/1850/2100/2350



Function of electric four-wheeled forklift with holding clamps



Electric four-wheeled ride-on fully automatic holding clip flip lift forklift can hold cloth rolls, paper rolls type, etc.. Battery all-electric clamping flip forklift can be automatic lifting, it can be 360 degrees rotating flip, left and right rotating clamping.


Clamping forklift truck it is in the traditional forklift upgraded and transformed, can be more convenient, efficient extraction of goods with cylinder, reduce the labor intensity of the staff.

Electric clamping forklift can quickly grab, carry and flip the workpiece, thus greatly improving the production efficiency. The forklift can precisely control the position and angle of the workpiece, thus improving the quality stability of the product.
